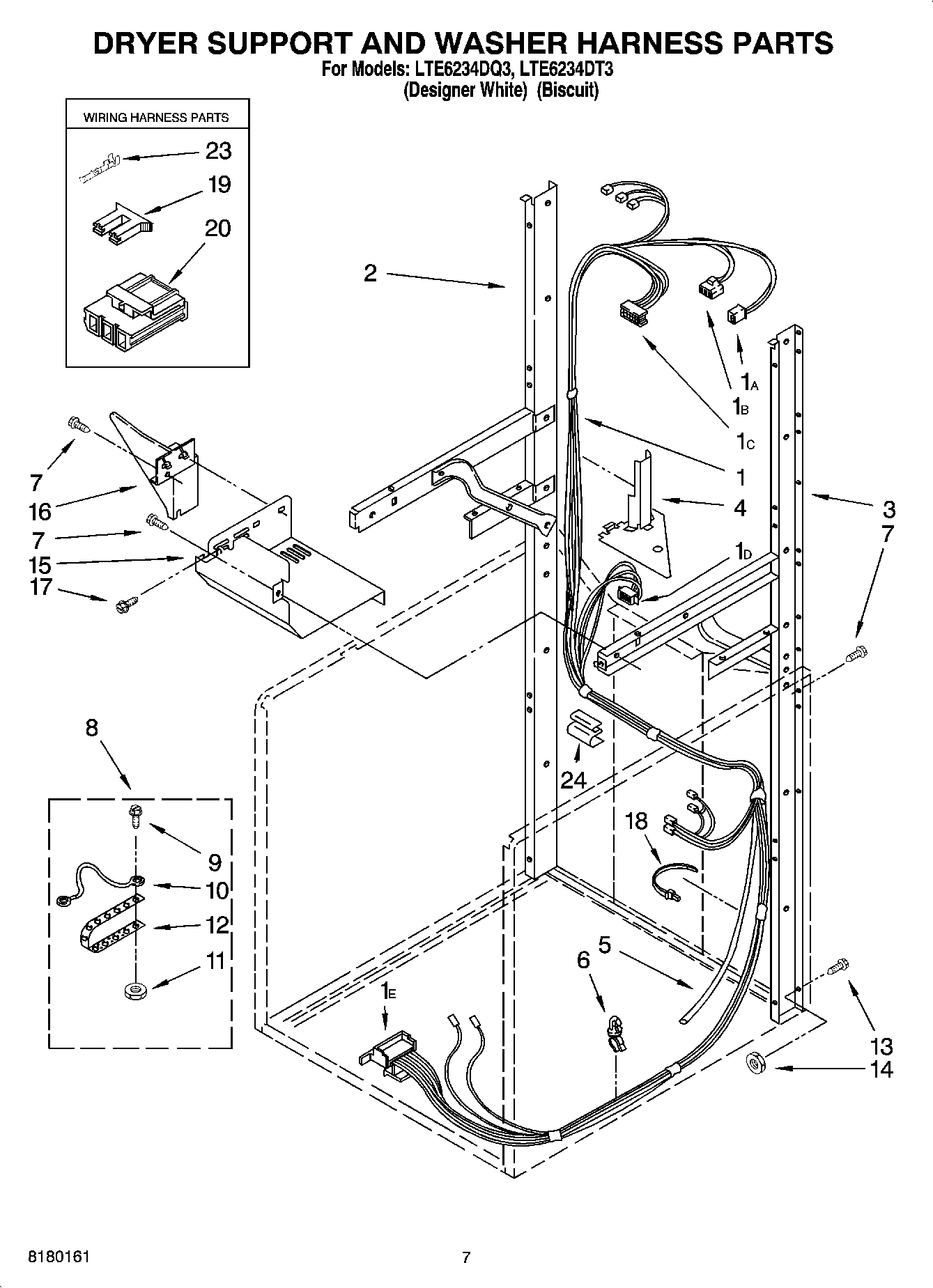

LTE6234DQ3 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

Products

Position	Product
1	Harness – Washer
2	(Left Hand Side)
2	3388851 Whirlpool Support
3	(Right Hand Side)
3	3388850 Whirlpool Support
4	3390609 Whirlpool Shield
5	W10834213 Whirlpool Hose
6	Clip, Harness
7	SCREW
8	KIT, GROUNDING
9	Screw, 10-24 x 1
10	WPL 685449
11	W10080180 Whirlpool Nut
12	Strap, Ground
13	Bolt, 5/16-18 x 1/2
14	Nut, Hex (4)
15	W11108181 Whirlpool Shield Assembly
16	Shield, Thermostat
17	WP308685 Whirlpool Microwave Screw
18	Tie, Cable
19	3354925 Whirlpool Connector
20	WP3360056 Whirlpool Connector
23	WP94614 Whirlpool Terminal
24	Protector, Harness
