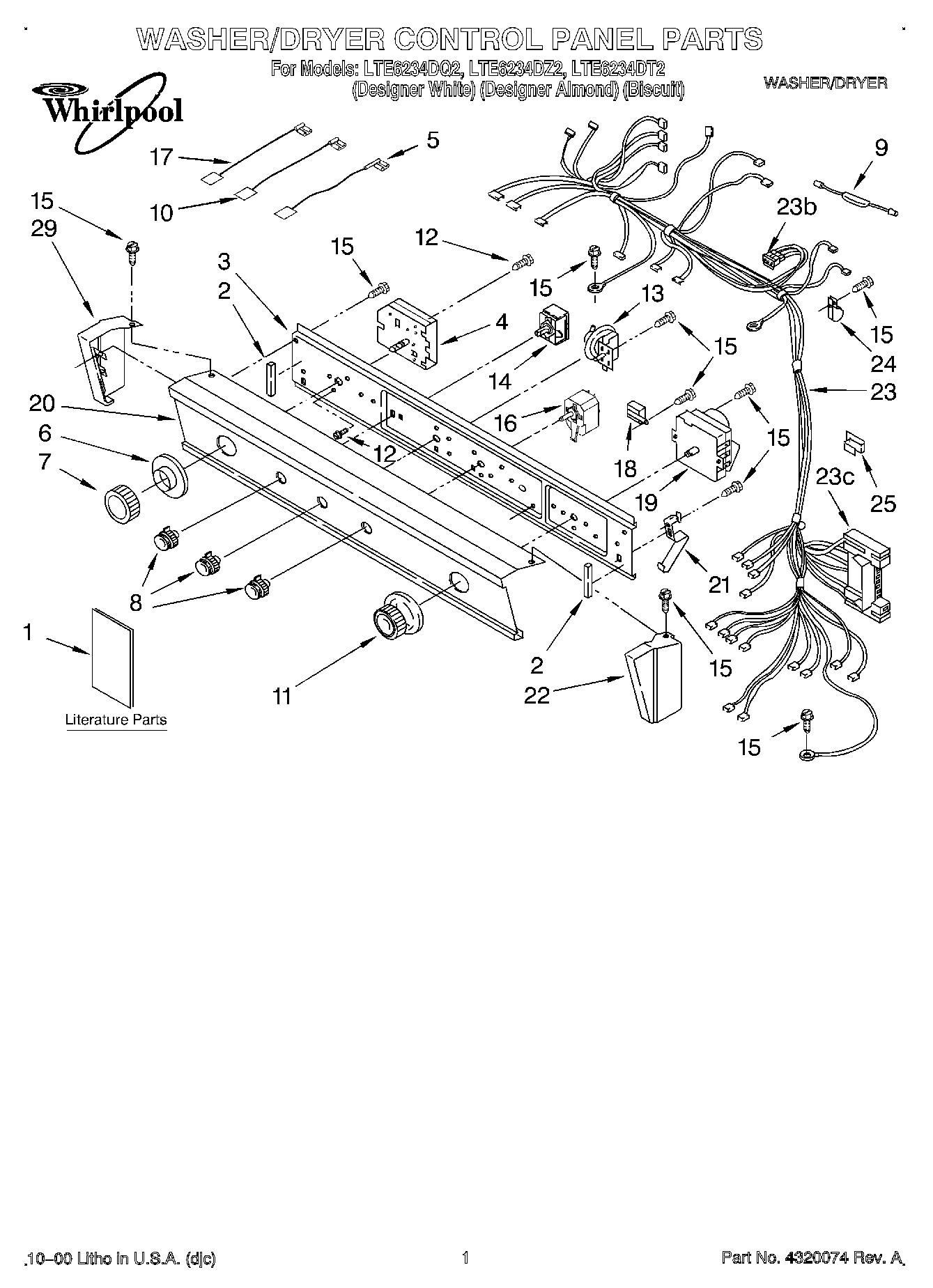

LTE6234DT2 01 – WASHER/DRYER CONTROL PANEL, LITERAT

Products

PositionProduct
1Guide, Use And Care
1LITERATURE PARTS
1Literature Parts (Arabic Use & Care Guide)
1Literature Parts (Arabic)
1WPL LIT3954144
1Literature Parts (Installation Instructions) (English)
1Literature Parts (Use & Care Guide) (Wire Diagram)
23390688 Whirlpool Bumper Assembly
3Bracket, Control (Includes Illus. 2)
4WP3948357 Whirlpool Timer Assembly
5Wire, Jumper (Black)
6Dial (Washer)
6Dial (Washer) (Almond)
6Dial, Timer (Washer) (Biscuit)
7WP3364293 Whirlpool Timer Knob
83957797 Whirlpool Knob
8WP3957796 Whirlpool Knob
9279872 Whirlpool Resistor
10Wire, Jumper (Black)
11WP3957751 Whirlpool Knob
11WP3957750 Whirlpool Knob
12WP356418 Whirlpool Screw
13WP3952466 Whirlpool Washer Water Level Switch
14Switch, Temperature
15WP3390631 Whirlpool Screw
16WP3404233 Whirlpool Dryer Starter Switch
17Wire, Jumper (Blue)
18WP694419 Whirlpool Buzzer Adjuster
19WP3976569 Whirlpool Timer
20Panel, Control (Biscuit)
20Panel, Control
20Panel, Control (Almond)
213389453 Whirlpool Hinge Assembly
22End Cap-Right Hand (Almond)
22End Cap (RH)
22End Cap (RH) (Biscuit)
233395683 Whirlpool Connector
23Receptacle,
23Harness – Dryer
247111P002-60 Whirlpool Clamp
25Clip, Harness (2)
29End Cap (LH) (Biscuit)
29End Cap (LH) (Almond)
29End Cap (LH)
