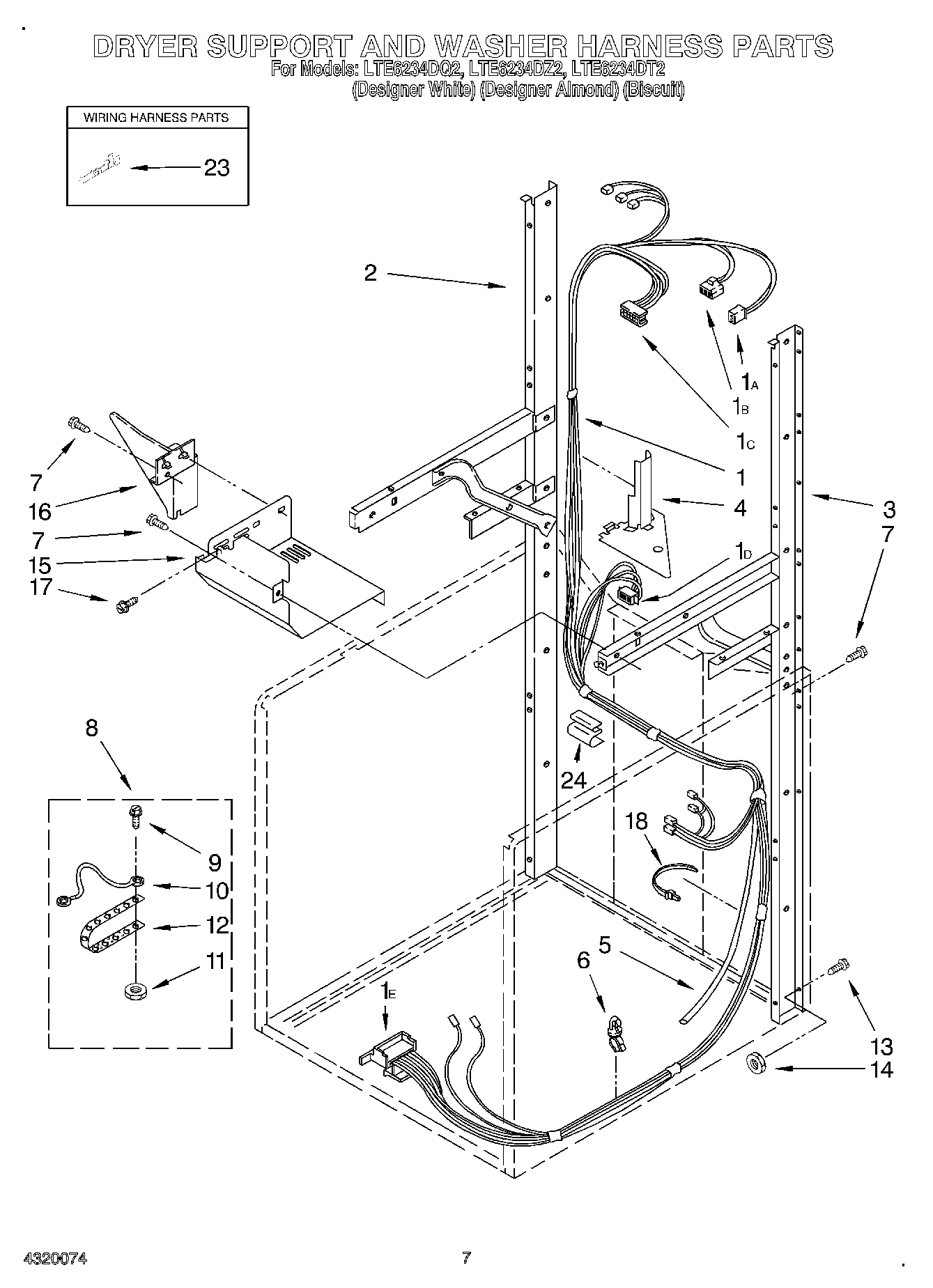

LTE6234DT2 05 – DRYER SUPPORT AND WASHER HARNESS

LTE6234DT2 05 – DRYER SUPPORT AND WASHER HARNESS

Written by

in

LTE6234DT2 05 – DRYER SUPPORT AND WASHER HARNESS

Products

PositionProduct
13350130 Whirlpool Connector
1Harness – Washer
1ABlock, Disconnect
1BW10876590 Whirlpool Connector
1DWP62505 Whirlpool Connector
1CReceptacle, 3 Way
23388851 Whirlpool Support
33388850 Whirlpool Support
43390609 Whirlpool Shield
5W10834213 Whirlpool Hose
6Clip, Harness
7SCREW
8KIT, GROUNDING
9Screw, 10-24 x 1
10WPL 685449
11W10080180 Whirlpool Nut
12Strap, Ground
13Bolt, 5/16-18 x 1/2
14Nut, Hex (4)
15W11108181 Whirlpool Shield Assembly
16Shield, Thermostat
17WP308685 Whirlpool Microwave Screw
18Tie, Cable
23WP596797 Whirlpool Terminal
23WP94614 Whirlpool Terminal
24Protector, Harness
