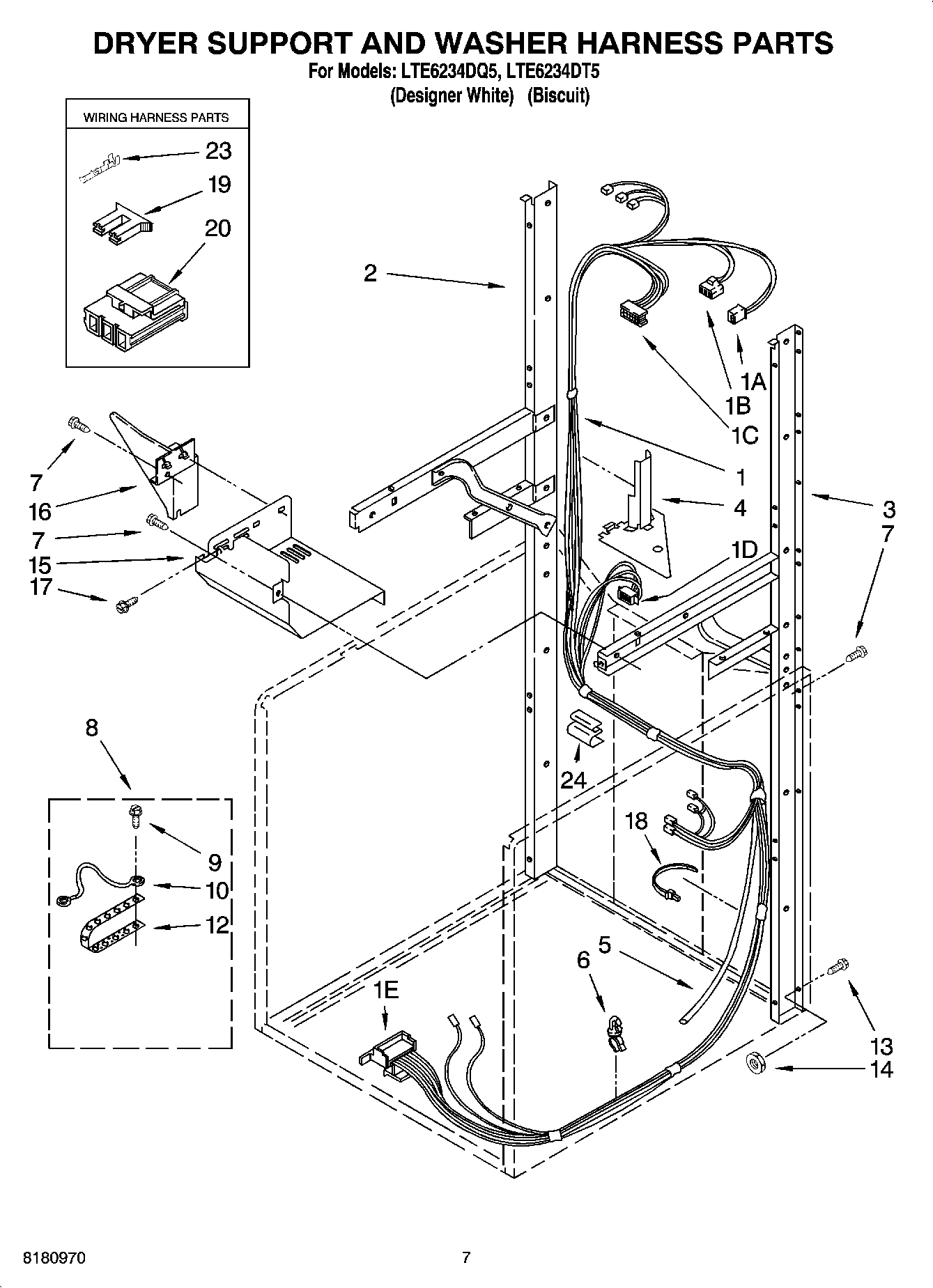

LTE6234DT5 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

LTE6234DT5 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

Written by

in

LTE6234DT5 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

Products

PositionProduct
1A3350130 Whirlpool Connector
1DReceptacle, 3 Way
1EWP62505 Whirlpool Connector
1Harness – Washer
1CW10876590 Whirlpool Connector
1BBlock, Disconnect
2(Left Hand Side)
23388851 Whirlpool Support
33388850 Whirlpool Support
3(Right Hand Side)
43390609 Whirlpool Shield
5W10834213 Whirlpool Hose
6Clip, Harness
7SCREW
8KIT, GROUNDING
9WP90767 Whirlpool Screw
10WPL 685449
12Strap, Ground
13Bolt, 5/16-18 x 1/2
14Nut, Hex (4)
15W11108181 Whirlpool Shield Assembly
16Shield, Thermostat
17WP308685 Whirlpool Microwave Screw
18Tie, Cable
193354925 Whirlpool Connector
20WP3360056 Whirlpool Connector
23WP94614 Whirlpool Terminal
24Protector, Harness
