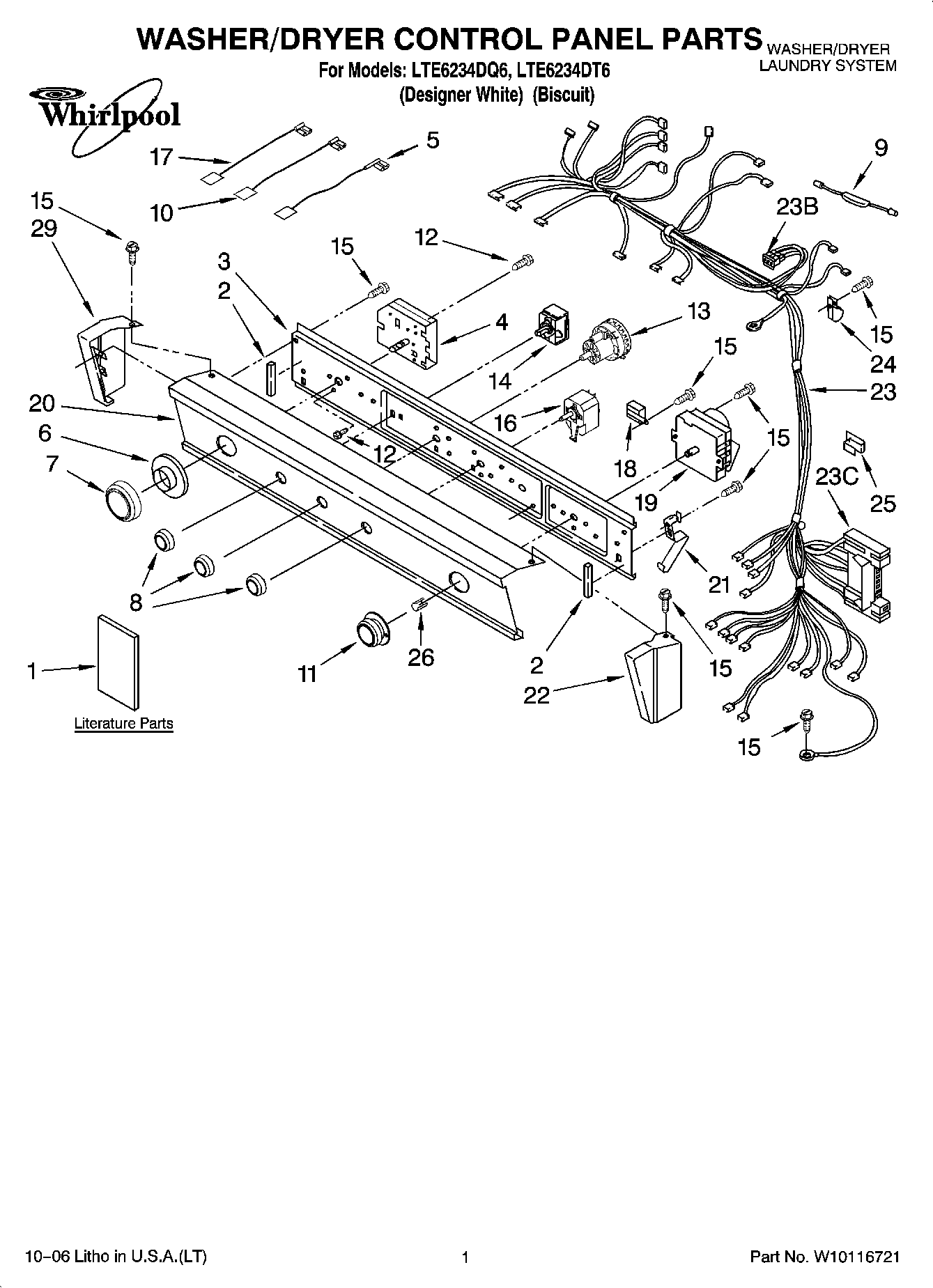

LTE6234DT6 01 – WASHER/DRYER CONTROL PANEL PARTS

LTE6234DT6 01 – WASHER/DRYER CONTROL PANEL PARTS

Written by

in

LTE6234DT6 01 – WASHER/DRYER CONTROL PANEL PARTS

Products

PositionProduct
1Installation Instructions (English)
1Use & Care Guide
1Wiring Diagram
1Arabic Use & Care Guide
1Arabic
1Sheet, Cycle Feature
1Energy Guide
1LITERATURE PARTS
23390688 Whirlpool Bumper Assembly
3W10732070 Whirlpool Bracket
4WP3948357 Whirlpool Timer Assembly
5Wire, Jumper (Black)
6Dial (Washer)
6Dial, (Washer) (Biscuit)
7Knob, Timer (Washer) (Biscuit)
7Knob, Timer (Washer)
8WP3957796 Whirlpool Knob
83957797 Whirlpool Knob
9279872 Whirlpool Resistor
10Wire, Jumper (Black)
11WP3957751 Whirlpool Knob
11WP3957750 Whirlpool Knob
12WP3400064 Whirlpool Screw
13Switch, Pressure
14Switch, Temperature
15WP90767 Whirlpool Screw
16WP3404233 Whirlpool Dryer Starter Switch
17Wire, Jumper (Blue)
18WP694419 Whirlpool Buzzer Adjuster
19WP3976569 Whirlpool Timer
20Panel, Control (Biscuit)
20Panel, Control
213389453 Whirlpool Hinge Assembly
22End Cap (RH) (Biscuit)
22End Cap (RH)
23BReceptacle,
23C3395683 Whirlpool Connector
23Harness – Dryer
247111P002-60 Whirlpool Clamp
25Clip, Harness (2)
26WP688805 Whirlpool Spring Clip
29End Cap (LH)
29End Cap (LH) (Biscuit)
