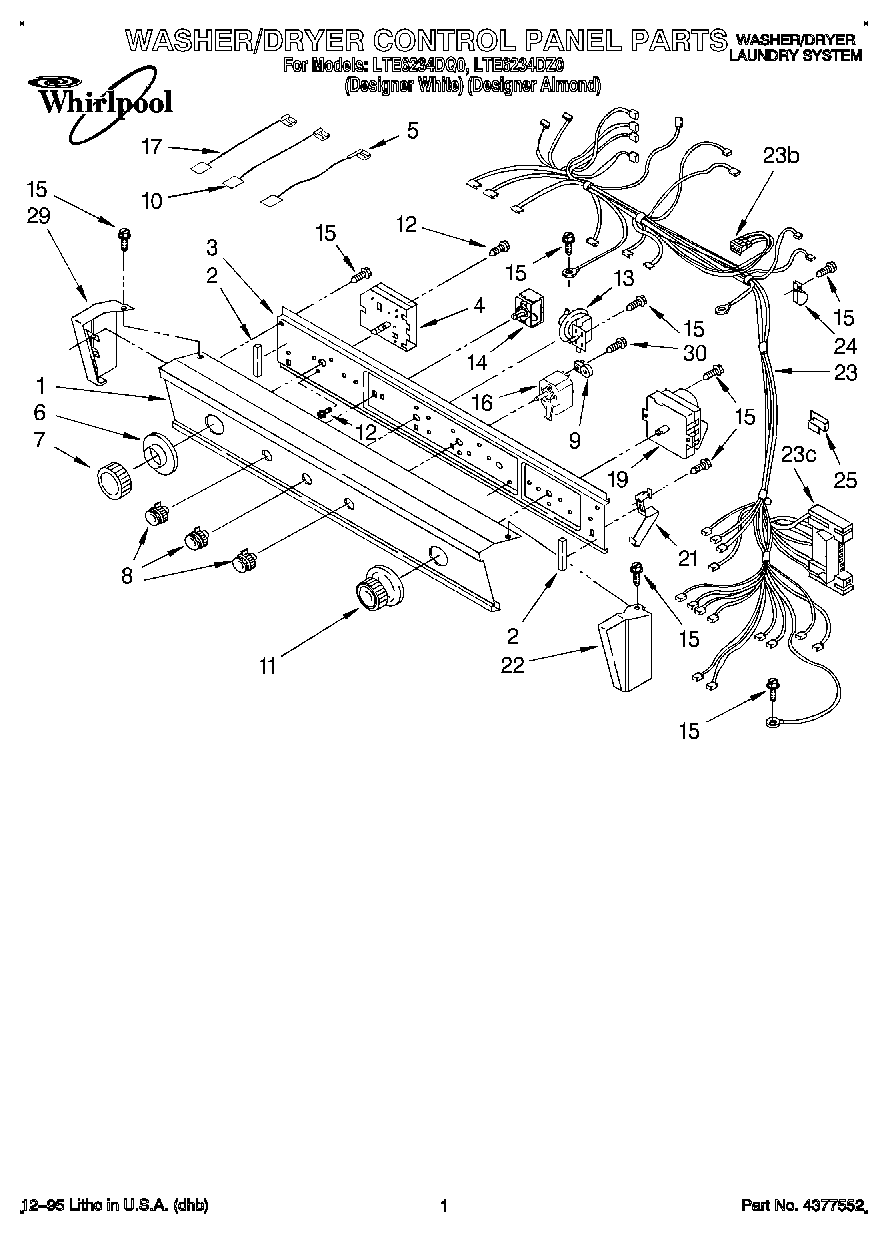

LTE6234DZ0 01 – WASHER/DRYER CONTROL PANEL

Products

Position	Product
1	Panel, Control (Almond)
1	Panel, Control
2	3390688 Whirlpool Bumper Assembly
3	Bracket, Control (Includes Illus. 2)
4	WP3948357 Whirlpool Timer Assembly
5	Wire, Jumper (Black)
6	Dial (Washer)
6	Dial (Washer) (Almond)
7	WP3364293 Whirlpool Timer Knob
8	WP3957796 Whirlpool Knob
8	3957797 Whirlpool Knob
9	279872 Whirlpool Resistor
10	Wire, Jumper (Black)
11	WP3957750 Whirlpool Knob
12	WP356418 Whirlpool Screw
13	Switch, Pressure
14	Switch, Water Temperature (Alt.)
15	WP3390631 Whirlpool Screw
16	WP3404233 Whirlpool Dryer Starter Switch
17	Wire, Jumper (Blue)
19	WP3976569 Whirlpool Timer
21	3389453 Whirlpool Hinge Assembly
22	End Cap (RH)
22	End Cap-Right Hand (Almond)
23C	3395683 Whirlpool Connector
23B	WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
23	Harness - Dryer
24	7111P002-60 Whirlpool Clamp
25	Clip, Harness (2)
29	End Cap (LH) (Almond)
29	End Cap (LH)
30	SCREW
