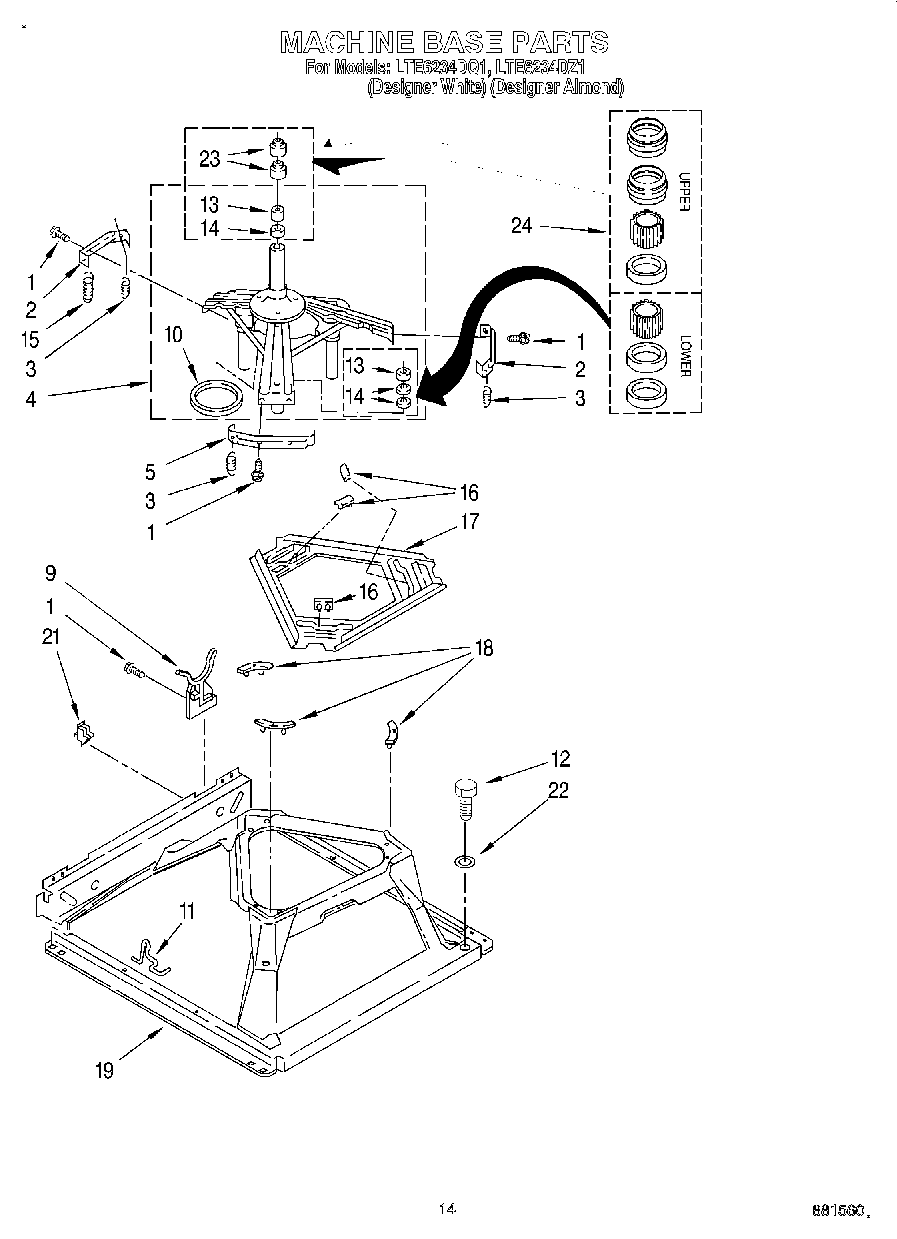

LTE6234DZ1 09 – MACHINE BASE

Products

PositionProduct
1SCREW
2WP64067 Whirlpool Bracket
3WP63907 Whirlpool Washer Suspension Spring
4Support & Brake, Tub
5Bracket, Spring Outer (L.F.)
93350506 Whirlpool Retainer Clip
10WP63134 Whirlpool Ring
11WPW10145155 Whirlpool Retainer
12Screw, 5/16-18 x 1/2 (2)
13WP8546455 Whirlpool Bearing
14W11095997 Whirlpool Seal
15WPW10250667 Whirlpool Washer Suspension Spring
16285219 Whirlpool Washer Suspension Plate Friction Pads 3 Pack
17WP3946509 Whirlpool Skate Plate
18285744 Whirlpool Washer Tub Suspension Rod Kit Pad 3 Pack
19Base Assembly (Includes Illus. 11 & 18)
213349749 Whirlpool Restrainer
22WASHER
23WP8577376 Whirlpool Seal
24285203 Whirlpool CP Bearing
