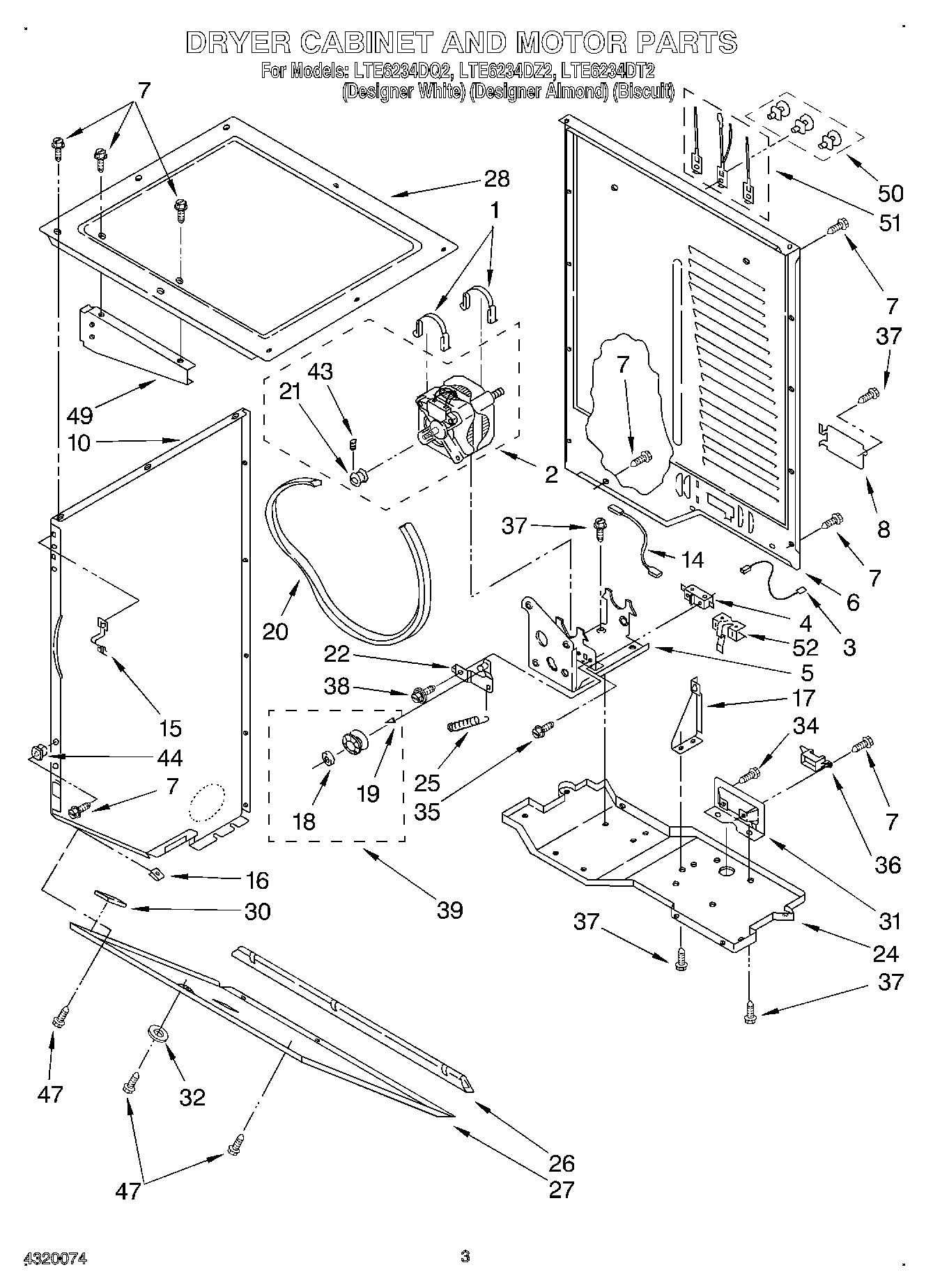

LTE6234DZ2 03 – DRYER CABINET AND MOTOR

LTE6234DZ2 03 – DRYER CABINET AND MOTOR

Written by

in

LTE6234DZ2 03 – DRYER CABINET AND MOTOR

Products

PositionProduct
1WP660658 Whirlpool Clamp
33398948 Whirlpool Wire
4279782 Whirlpool Lid Switch
5W11107903 Whirlpool Bracket
6Panel, Rear
7SCREW
8279814 Whirlpool Cover
10Panel, Side (R.H.) (Biscuit)
103389256 Whirlpool Panel
10Panel, Side (Almond (L.H.))
103389264 Whirlpool Panel Assembly
10Panel, Side (L.H.) (Biscuit)
10Panel, Side (Almond (R.H.))
14Wire, Belt Switch
153389231 Whirlpool Clip Front Panel
16WP98234 Whirlpool Nut
173391639 Whirlpool Bracket Assembly
18WPW10121334 Whirlpool Washer
19WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
20661570V Whirlpool Dryer Drum Belt
21279811 Whirlpool Dryer Drive Motor
22WPW10547294 Whirlpool Idler Pulley
24Base, Dryer
25WPW10446781 Whirlpool Spring
263389683 Whirlpool Cover Assembly
27Panel, Transition (Biscuit)
273389272 Whirlpool Panel
27Panel, Transition (Almond)
28Top, Dryer
303389682 Whirlpool Spacer
313393721 Whirlpool Bracket
32Bumper, Lid Stop (Almond)
32WP3389431 Whirlpool Bumper Assembly
32Bumper, Lid Stop (Biscuit)
34WP273556 Whirlpool Screw
35WP98129 Whirlpool Screw
36WP3397659 Whirlpool Terminal Block
37WP3390631 Whirlpool Screw
38WP3389420 Whirlpool Screw
39279640 Whirlpool Dryer Idler Pulley Kit
43Screw, Set
44WP692400 Whirlpool Nut
47WP693304 Whirlpool Screw
493390722 Whirlpool Shield Assembly
50279393 Whirlpool Terminal Block Screw and Nut Kit
51279318 Whirlpool Terminal
52WP8066120 Whirlpool Lever Assembly
