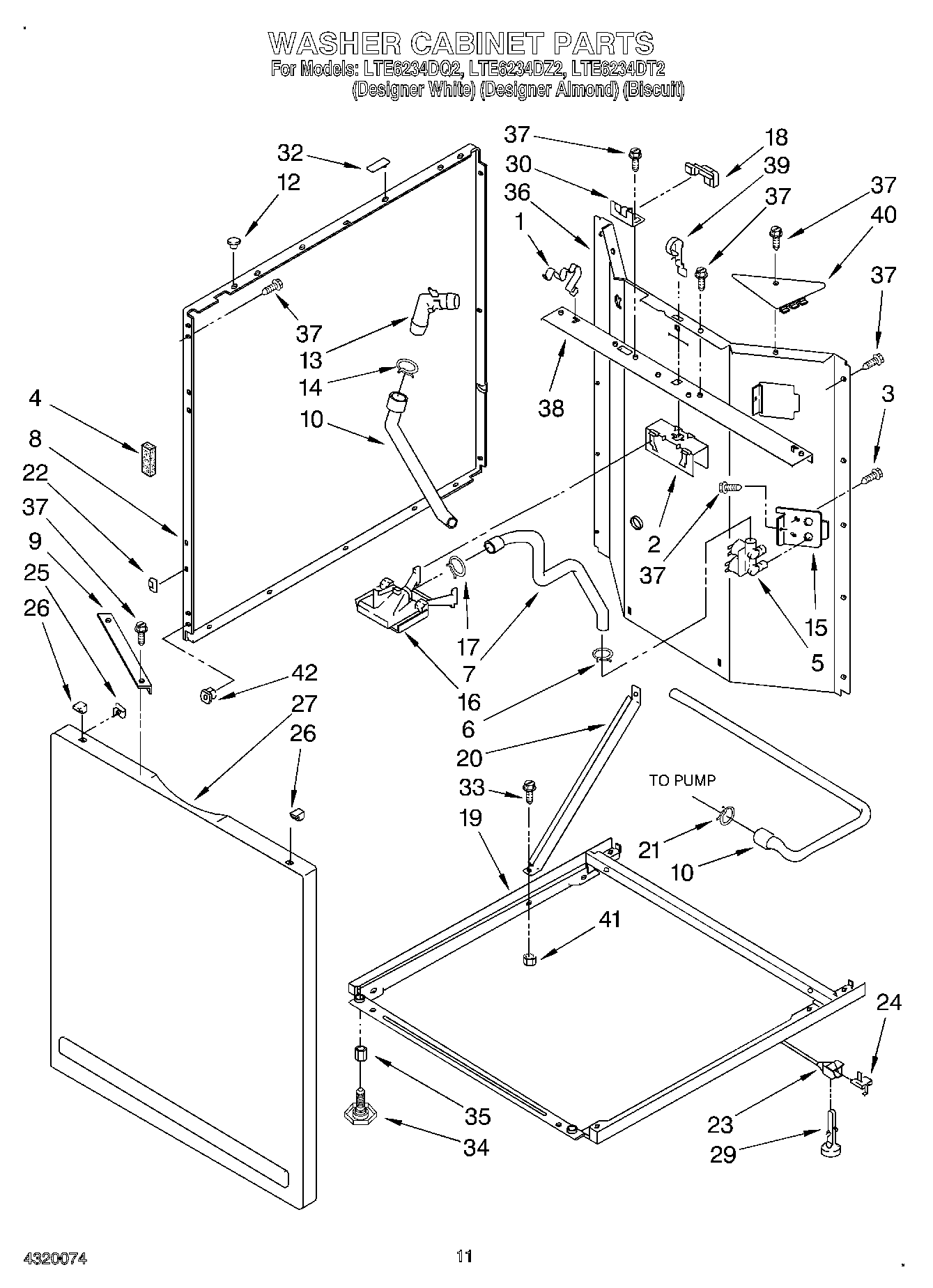

LTE6234DZ2 07 – WASHER CABINET

LTE6234DZ2 07 – WASHER CABINET

Products

PositionProduct
13349770 Whirlpool Clip
23349767 Whirlpool Bracket Assembly
3WP3390631 Whirlpool Screw
43350013 Whirlpool Foam Seal
5285805 Whirlpool Washer Water Inlet Valve
6WP596669 Whirlpool Hose Clamp
73352236 Whirlpool Hose Assembly
8Panel, Side (2) (Same Panel Used On Left And Right Side) (Almond)
8Panel, Side (2) (Same Panel Used On Left And Left Side) (Biscuit)
8WP3349455 Whirlpool Panel
93350744 Whirlpool Brace Assembly
10Hose, Drain
12WP660975 Whirlpool Button Plug
13W11213338 Whirlpool Connector
14WP356138 Whirlpool Hose Clamp
153349673 Whirlpool Bracket Assembly
16WP3360977 Whirlpool Washer Tub Fill Nozzle
183350145 Whirlpool Shield Assembly
19WP3402724 Whirlpool Washer Base
203388857 Whirlpool Bracket
21WP371502 Whirlpool Clamp
22W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
23WP3349311 Whirlpool Link
24WP359364 Whirlpool Clip
25WP98234 Whirlpool Nut
26WP345670 Whirlpool Lock
27Panel, Front (Almond)
27Panel, Front (Biscuit)
27WP3349499 Whirlpool Panel
29WP358594 Whirlpool Leveling Feet
303350144 Whirlpool Bracket
33Bolt, 5/16-18 x 1/2
34WPW10001130 Whirlpool Leveling Leg
35Nut, 3/8-16
368564987 Whirlpool Panel
37SCREW
383349697 Whirlpool Back Rail
39SPRING-LVR
403390608 Whirlpool Shield Assembly
41Nut, Hex (4)
42NUT, PUSH IN
