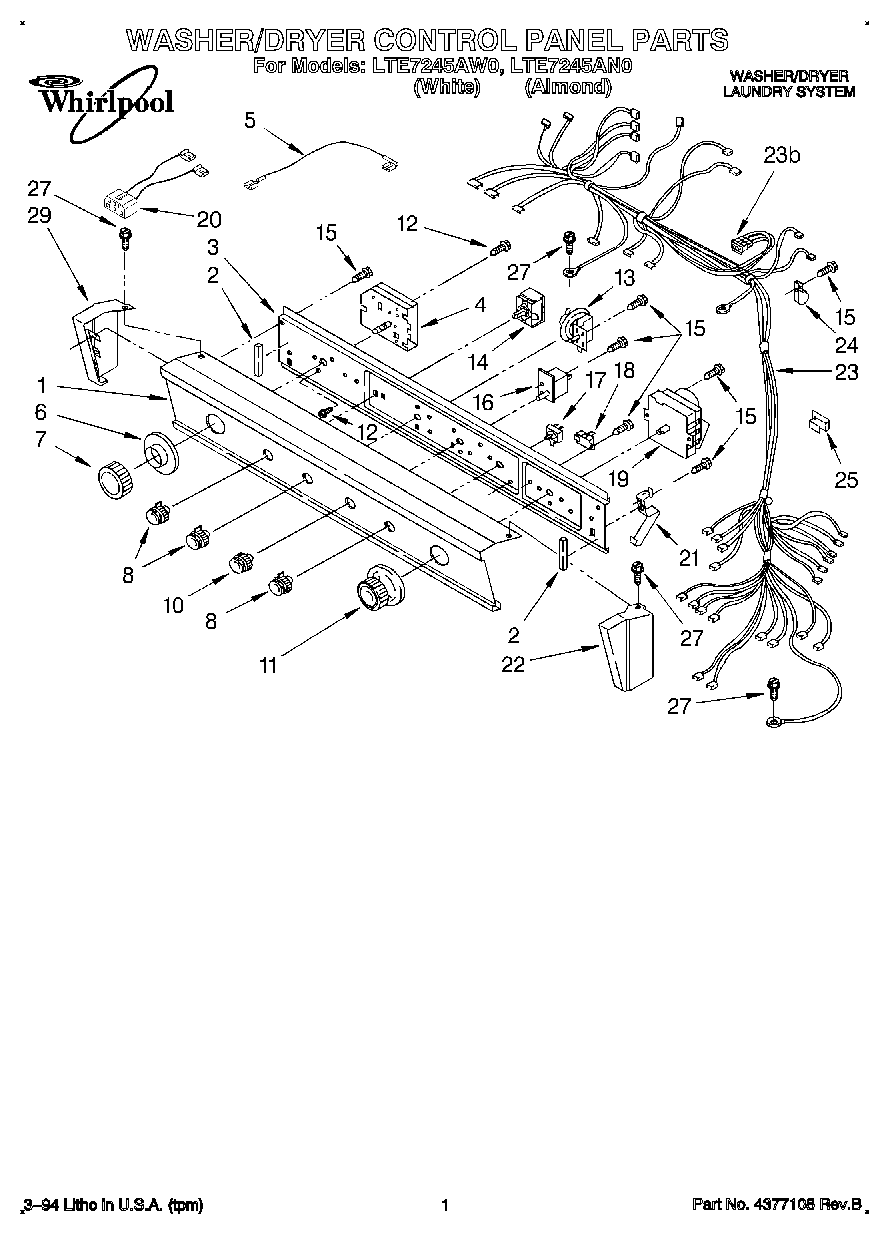

LTE7245AN0 01 – WASHER/DRYER CONTROL PANEL

LTE7245AN0 01 – WASHER/DRYER CONTROL PANEL

Written by

in

LTE7245AN0 01 – WASHER/DRYER CONTROL PANEL

Products

PositionProduct
1Panel, Control (Almond)
1Panel, Control (White)
23390688 Whirlpool Bumper Assembly
3Bracket, Control (Includes Illus. 2)
4285938 Whirlpool Washer Timer
5Wire, Jumper (Blue)
5Wire, Jumper (Black)
6Dial, Timer (Washer) (Almond)
6Dial, Timer (Washer) (White)
7WP3364293 Whirlpool Timer Knob
8WP3957796 Whirlpool Knob
83957797 Whirlpool Knob
9279872 Whirlpool Resistor
10WP3957800 Whirlpool Knob
11WP3957750 Whirlpool Knob
12WP356418 Whirlpool Screw
13Switch, Pressure
14Switch, Water Temperature
15WP3390631 Whirlpool Screw
16Switch, Push-To-Start
17WP3399640 Whirlpool Switch
18WP694419 Whirlpool Buzzer Adjuster
19WP3976568 Whirlpool Timer
20Wire-Jumper Assembly
213389453 Whirlpool Hinge Assembly
22End Cap (RH)
22End Cap-Right Hand (Almond)
23WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
23Harness – Dryer
247111P002-60 Whirlpool Clamp
25Clip, Harness (2)
29End Cap (LH) (Almond)
29End Cap (LH)
30SCREW
