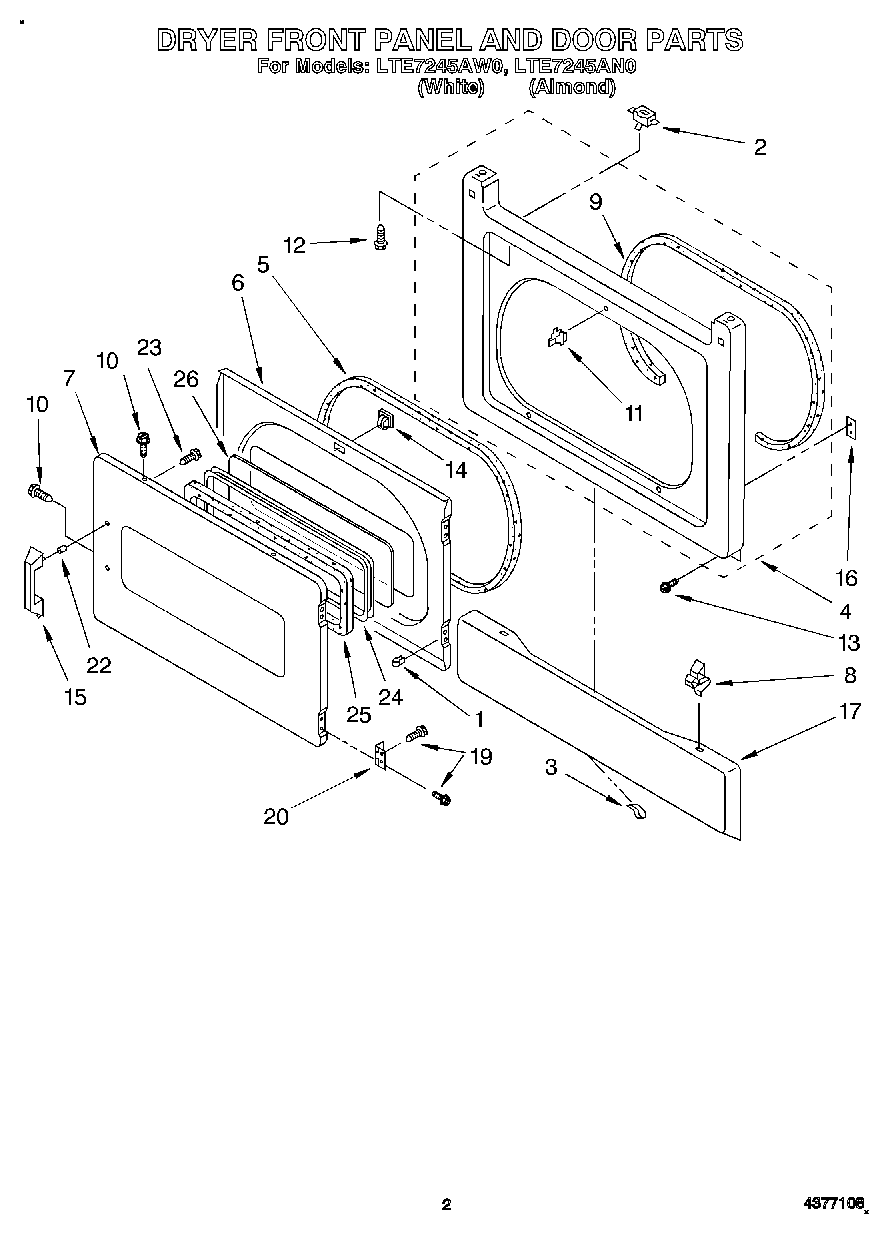

LTE7245AN0 02 – DRYER FRONT PANEL AND DOOR

Products

Position	Product
1	Nut, “U“ (4)
2	WP3391902 Whirlpool Lid Switch
3	WP98234 Whirlpool Nut
4	Panel, Front (Almond)
4	279718 Whirlpool Panel
5	WP3390735 Whirlpool Door Seal
6	W10244331 Whirlpool Rear Door
7	Door, Front (Almond)
7	W10322548 Whirlpool Door Assembly
8	WP3388229 Whirlpool Dryer Spring Clip
9	WP3387242 Whirlpool Seal
10	WP694091 Whirlpool Screw
12	WP3395530 Whirlpool Screw
13	WP308685 Whirlpool Microwave Screw
14	279570 Whirlpool Dryer Door Latch Kit
15	WPL 3392907
15	WP3392906 Whirlpool Door Handle
16	WP3390902 Whirlpool Clip
17	3388958 Whirlpool Panel
17	Panel, Toe (Almond)
18	WPW10139210 Whirlpool Screw
19	WP488627 Whirlpool Refrigerator Screw
20	W11175815 Whirlpool Hinge
22	Fastener, Tubular
23	Screw, 8-18 x 3/4 (Door Handle)
24	3392914 Whirlpool Window Frame
25	Gasket, Window
26	Window (2)
