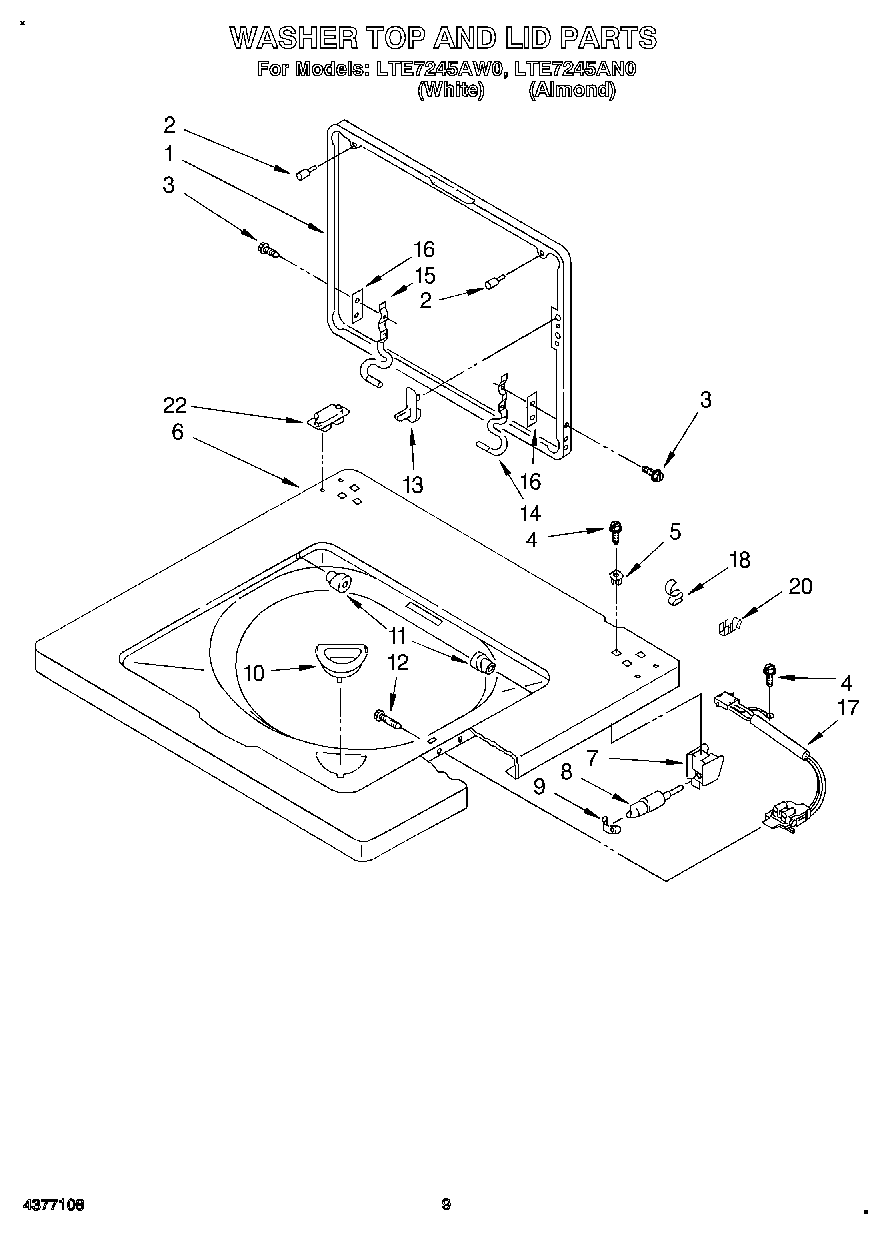

LTE7245AN0 06 – WASHER TOP AND LID

LTE7245AN0 06 – WASHER TOP AND LID

Written by

in

LTE7245AN0 06 – WASHER TOP AND LID

Products

PositionProduct
1Lid (White)
1Lid (Almond)
2WP9724509 Whirlpool Bumper
3SCREW
4SCREW
5WP692400 Whirlpool Nut
63349817 Whirlpool Top Assembly
6Top, Console (Almond)
73354020 Whirlpool Bracket
8WP3350152 Whirlpool Retainer
9Clip, Retainer
10WP3362952 Whirlpool Bezel
11WP21258 Whirlpool Washer Lid Hinge Bearing
12Screw & Washer, Lid Switch (2)
13WP358684 Whirlpool Strike Assembly
143350101 Whirlpool Hinge
153350102 Whirlpool Hinge Assembly
16WP21097 Whirlpool Pad
17WP3355458 Whirlpool Lid Switch
18WP90016 Whirlpool Clip
20W10113937 Whirlpool Clamp
22W11116924 Whirlpool Locator
