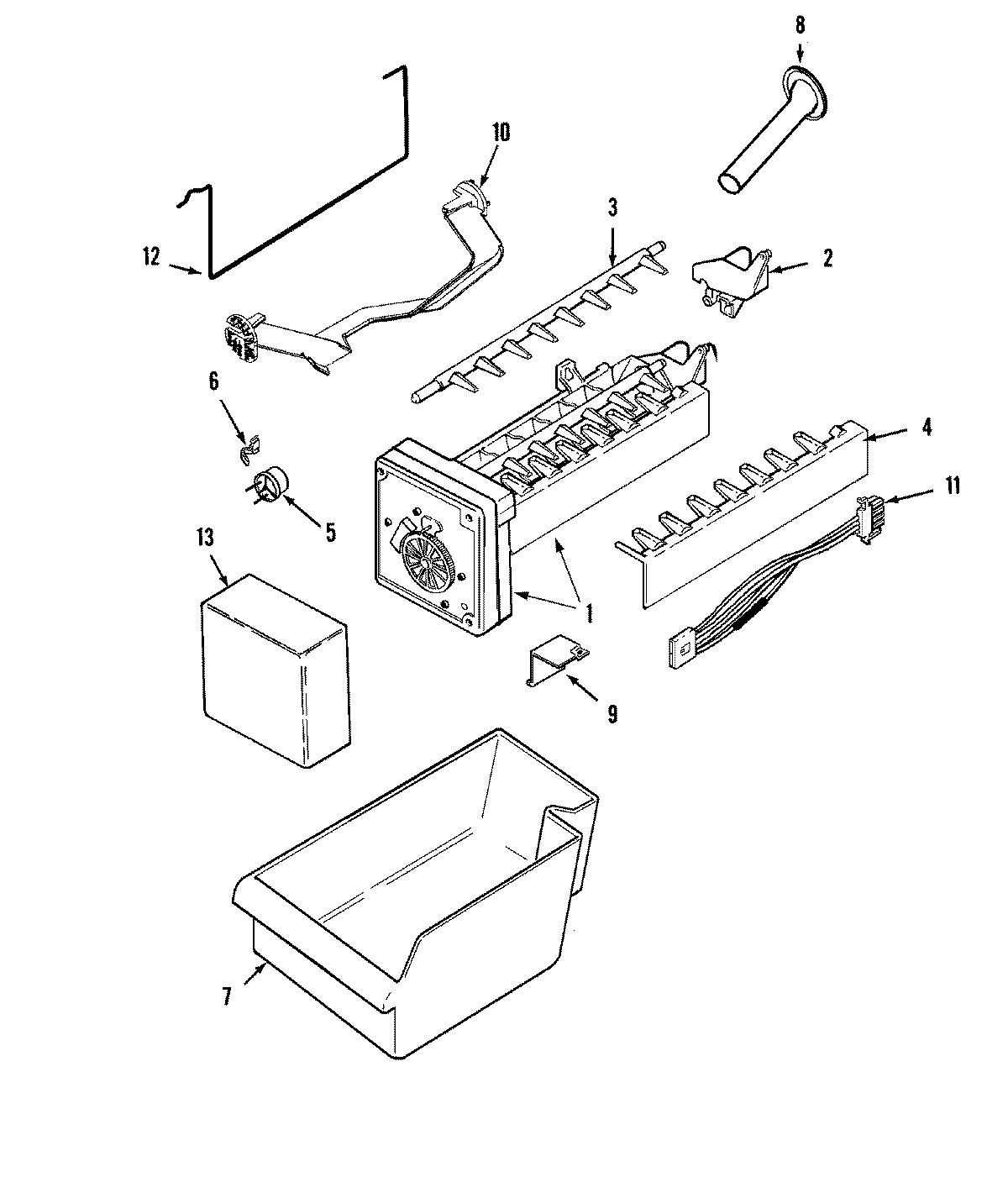

LTF2112ARB 06 – ICE MAKER

Products

Position	Product
1	MAY 63001488
1	MAY 63001487
1	MAY 63001486
1	WP99003172 Whirlpool Silicone L
1	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
2	WP628356 Whirlpool Refrigerator Fill Cup
3	WP627843 Whirlpool Refrigerator Ejector Arm
4	WP2182124 Whirlpool Refrigerator Stripper Arm
5	WP627985 Whirlpool Icemaker Cycling Thermostat
5	MAY 95093-1
6	WP2315522 Whirlpool Refrigerator Clip
7	MAY 61001886
8	MAY 61005940
9	MAY 95108-1
9	BRACKET, MODULE & HEATER
10	MAY 61005174
11	MAY 61001882
12	MAY 61005173
12	MAY 61005175
13	MAY 61005374
