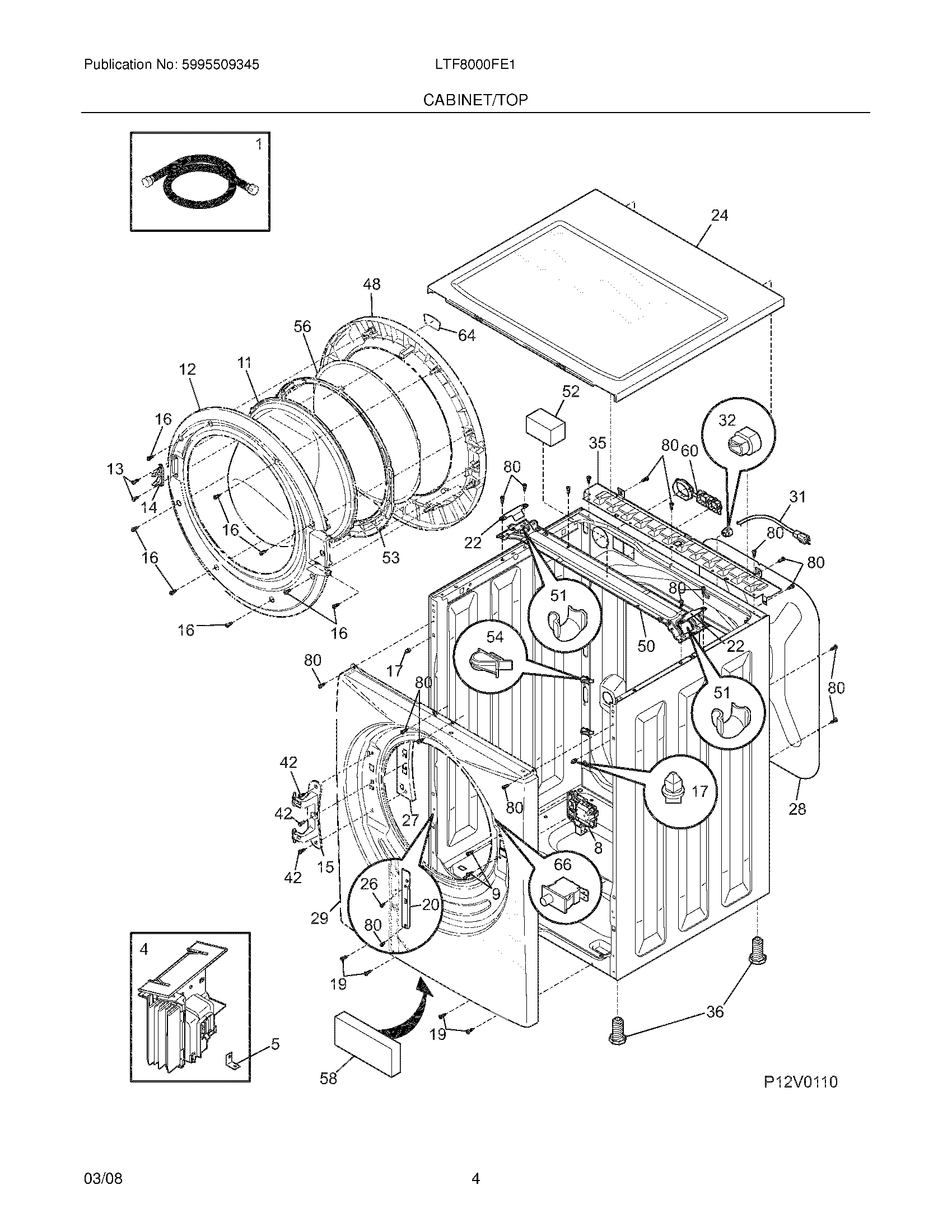

LTF8000FE1 05 – CABINET/TOP

LTF8000FE1 05 – CABINET/TOP

Written by

in

LTF8000FE1 05 – CABINET/TOP

Products

PositionProduct
NIWCI 134434900
NI134596200 Frigidaire Support Kit
NI134591500 Frigidaire Transport Plug Kit
NIWCI 134547600
NIWCI 134889700
NIWCI 134603100
NI134178901 Frigidaire Screw
15303912532 Frigidaire Hose Inlet 60"
4134743500 Frigidaire Washer Electronic Control Board Motor
5134522900 Frigidaire Bracket
8DOOR LOCK/SWITCH ASSY
11134366400 Frigidaire Panel
12134550702 Frigidaire Frame
13131302901 Frigidaire Screw
14131763302 Frigidaire Washer Door Strike
15WCI 134550800
16131205300 Frigidaire Screw
17WCI 134408700
19131302800 Frigidaire Drum Vane Screw
20WCI 134434901
22134648500 Frigidaire Spring Bracket
24WCI 134365060
26WCI 134521600
27134550900 Frigidaire Hinge Bracket
28WCI 134364300
29WCI 134550160
315304505407 Frigidaire Cord
325303209428 Frigidaire Serv.Cord Bushing
35WCI 134365100
36134548800 Frigidaire Washer Leg Levelling
42137380600 Frigidaire Screw – M5 x 0.8
48134550565 Frigidaire Panel-Outside Door
50WCI 134364600
51WCI 134562100
52131931202 Frigidaire Dampener
53134551300 Frigidaire Ring
54WCI 134364900
56137577700 Frigidaire Glass
58WCI 131800405
60134372000 Frigidaire Grommet
64WCI 134601625
66WCI 134813646
80131168200 Frigidaire Dryer Screw
