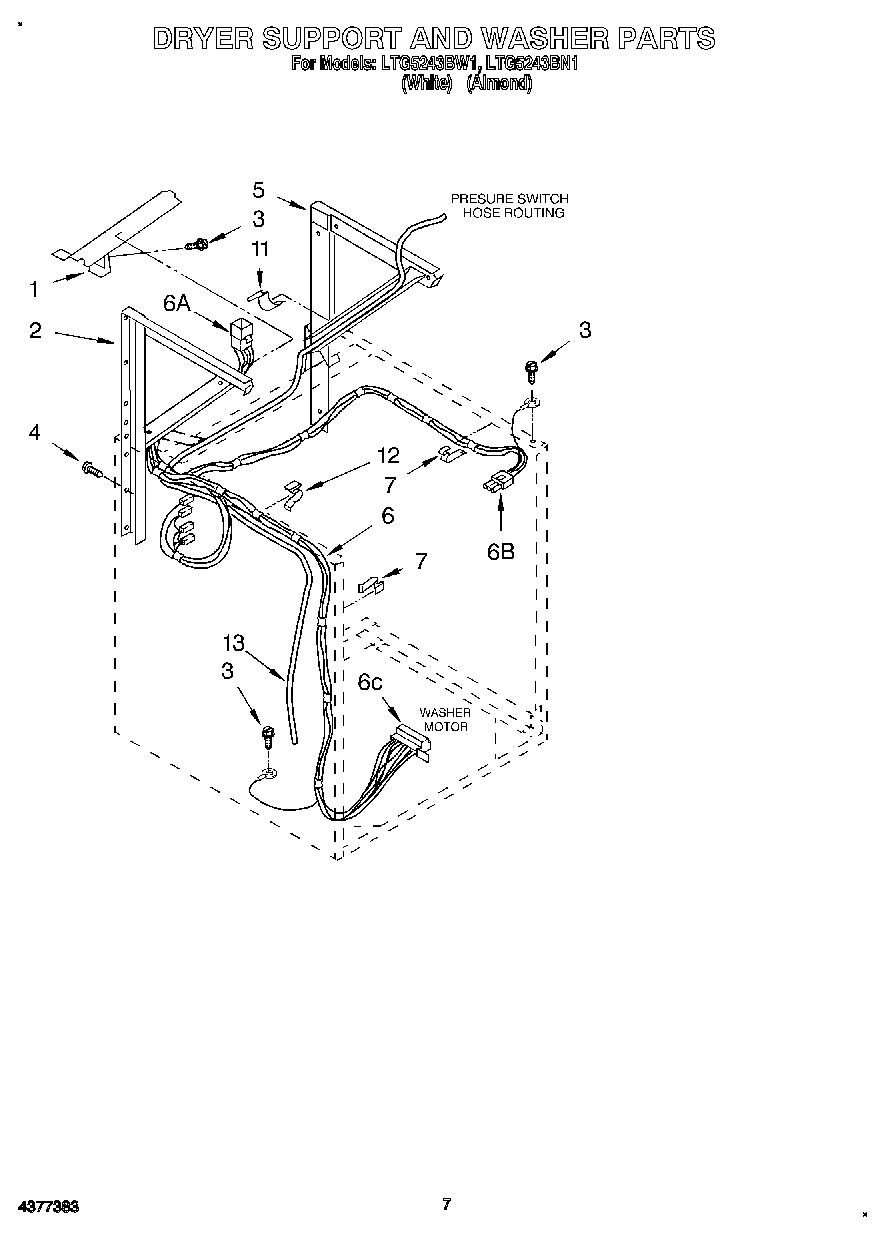

LTG5243BW1 05 – DRYER SUPPORT AND WASHER

LTG5243BW1 05 – DRYER SUPPORT AND WASHER

Written by

in

LTG5243BW1 05 – DRYER SUPPORT AND WASHER

Products

PositionProduct
1694304 Whirlpool Channel Cover
2W11174025 Whirlpool Support Assembly
3SCREW
4WP308544 Whirlpool Screw
5W11174024 Whirlpool Support
6APlug, Terminal (12-Way) (Connects With Automatic Console Harness)
6Harness, Upper (Automatic) (Includes Illus. 6A, 6B & 6C)
6CWP62505 Whirlpool Connector
6BWP62889 Whirlpool Washer Lid Switch Terminal Receptacle
78528351 Whirlpool Clip
11WP90016 Whirlpool Clip
12CLIP
13W10834213 Whirlpool Hose
