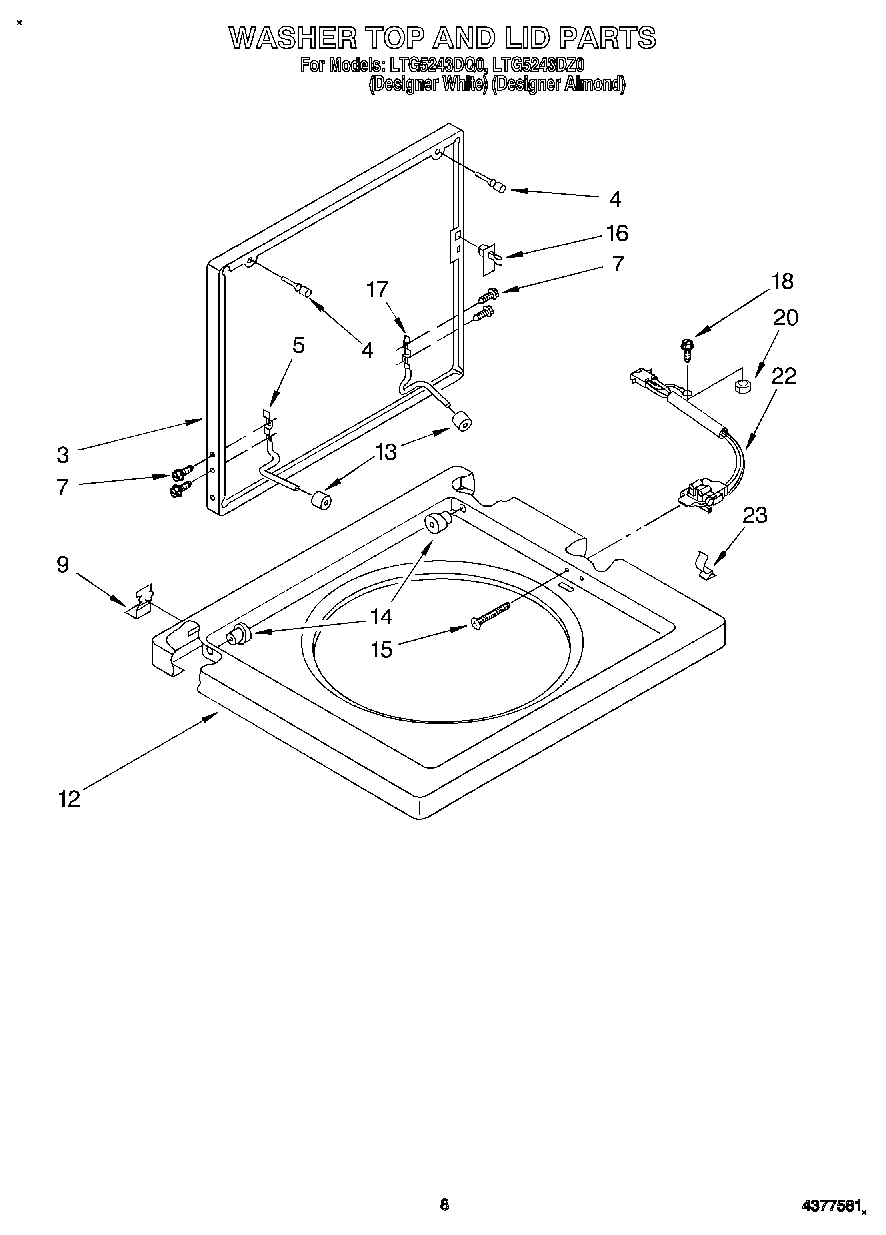

LTG5243DQ0 06 – WASHER TOP AND LID

LTG5243DQ0 06 – WASHER TOP AND LID

Written by

in

LTG5243DQ0 06 – WASHER TOP AND LID

Products

PositionProduct
3WP3398848 Whirlpool Lid
3Lid (Almond)
480011 Whirlpool Washer Lid Bumper Kit of 2
5384458 Whirlpool Hinge Assembly
7SCREW
9WP692985 Whirlpool Clip Assembly
12Top (Almond)
12WP384693 Whirlpool Top
13Bumper, Lid Hinge
14WP21258 Whirlpool Washer Lid Hinge Bearing
15WP3356311 Whirlpool Screw
16WP358684 Whirlpool Strike Assembly
17384459 Whirlpool Hinge
18WP308544 Whirlpool Screw
20W10080180 Whirlpool Nut
22WP3355806 Whirlpool Lid Switch
23WP90016 Whirlpool Clip
