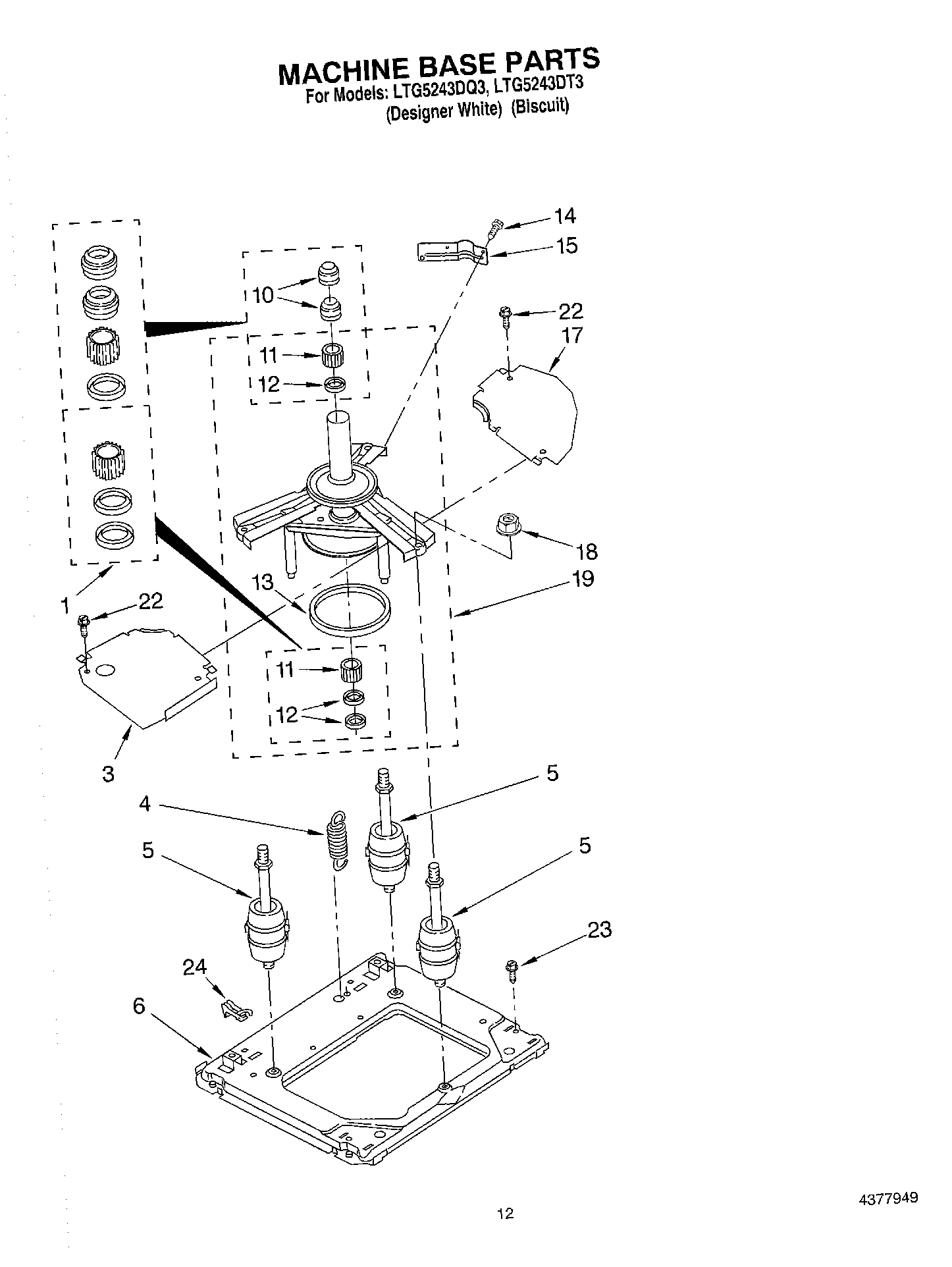

LTG5243DQ3 09 – MACHINE BASE

Products

Position	Product
1	285203 Whirlpool CP Bearing
3	WP64137 Whirlpool Shield Assembly
4	WPW10250667 Whirlpool Washer Suspension Spring
5	W10207783 Whirlpool Washer Suspension Spring Kit (Set of 3)
6	WP8577373 Whirlpool Base Assembly
10	WP8577376 Whirlpool Seal
11	WP8546455 Whirlpool Bearing
12	W11095997 Whirlpool Seal
13	WP63134 Whirlpool Ring
14	SCREW
15	63636 Whirlpool Bracket
17	63637 Whirlpool Shield
18	279710 Whirlpool Nut
19	W10863713 Whirlpool Support
22	WP90767 Whirlpool Screw
23	386011 Whirlpool Screw
24	696044 Whirlpool Block
