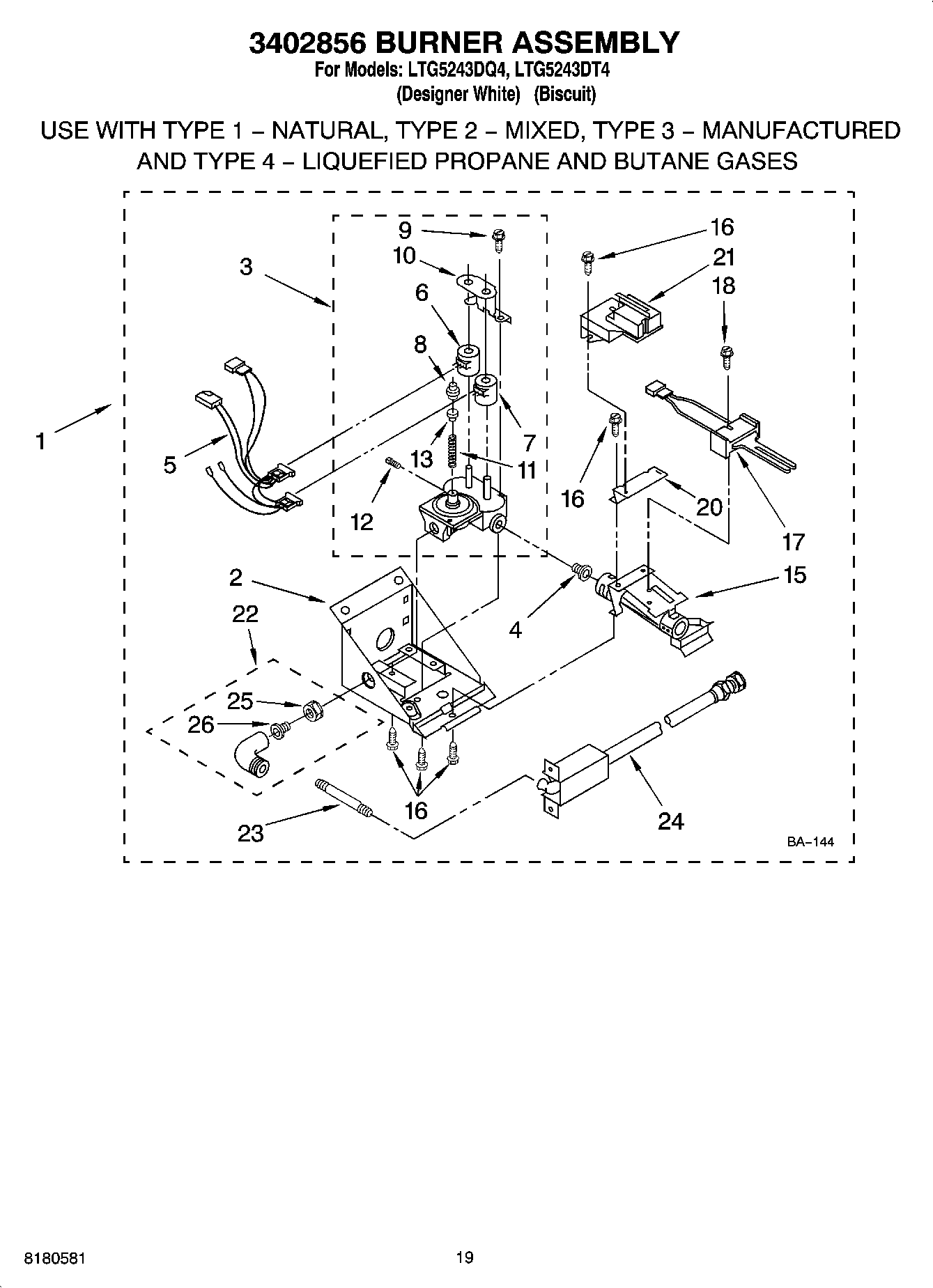

LTG5243DQ4 16 – 3402856 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	SEALER
	WP285195 Whirlpool Sealer Assembly
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	Plug, Dryer Side Panel (Biscuit)
	350572 Whirlpool Oil Transmission 15 Oz
	ACCESSORY PARTS
	799344 Whirlpool Refrigerator Paint
	350930 Whirlpool White Spray Paint
	LUBRICANT
	350938 Whirlpool Spray Gun
	OIL
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	692790 Whirlpool Plug
	72017 Whirlpool Appliance Touch-Up Paint White
1	WPL 3402856
2	Base, Burner
3	279888 Whirlpool Valve Assembly
4	WP234822 Whirlpool Gas Orifice
4	WP347743 Whirlpool Gas Orifice
5	WP3401849 Whirlpool Wire Harness
6	279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
8	WP694424 Whirlpool Limiter
9	694421 Whirlpool Screw Assembly
10	694538 Whirlpool Bracket
11	WP694422 Whirlpool Spring
12	W10295523 Whirlpool Plug
13	WP694423 Whirlpool Regulator
15	8578392 Whirlpool Burner
16	WP693995 Whirlpool Screw
17	279311 Whirlpool Dryer Flat Igniter with Bracket
18	WPW10366705 Whirlpool Screw
20	Bracket, Sensor
21	WP338906 Whirlpool Dryer Gas Sensor
22	3406051 Whirlpool Elbow
23	W10110397 Whirlpool Pipe
24	Supply Line (Gas)
25	Nut, Compression
26	3393767 Whirlpool Pipe
26	W10402145 Whirlpool LP Gas Connection
26	Following Parts Not Illustrated
