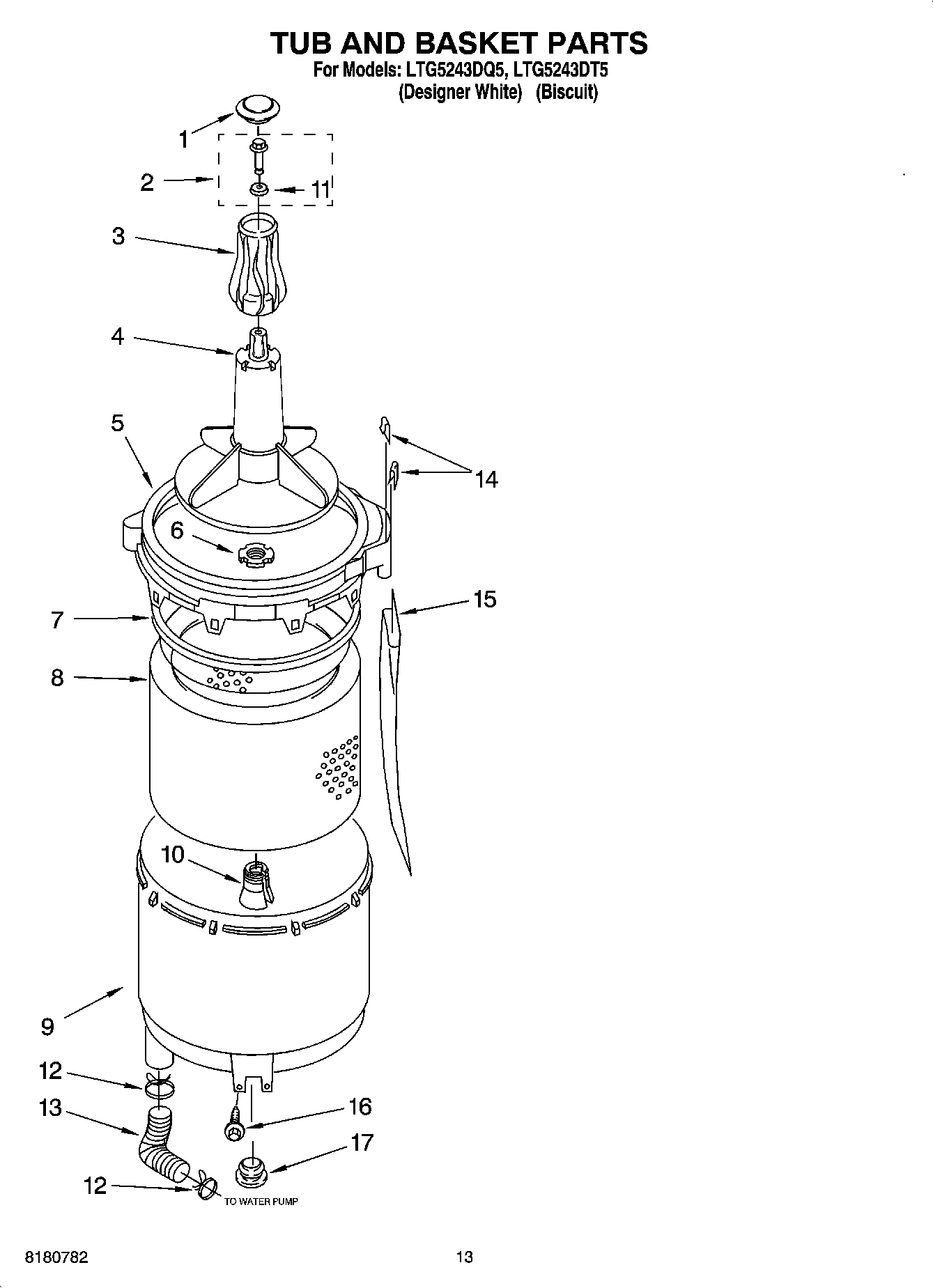

LTG5243DQ5 10 – TUB AND BASKET PARTS

Products

Position	Product
1	WP3355758 Whirlpool Agitator Cap
2	WP358237 Whirlpool Agitator Bolt
3	WP63840 Whirlpool Filter
4	WP3349098 Whirlpool Agitator Assembly
5	W10831641 Whirlpool Tub Ring
6	WP21366 Whirlpool Spanner Nut
7	WP3359587 Whirlpool Tub Seal
8	Basket
9	W10811358 Whirlpool Tub
10	WP389140 Whirlpool Drive Block or Bell
11	WP3949550 Whirlpool Gasket Assembly
12	WP616099 Whirlpool Clamp
13	280120 Whirlpool Hose
14	8577411 Whirlpool Pad
15	356398 Whirlpool Tube
16	W11573574 Whirlpool Screw
17	W10814296 Whirlpool Washer Center Post Seal Gasket
