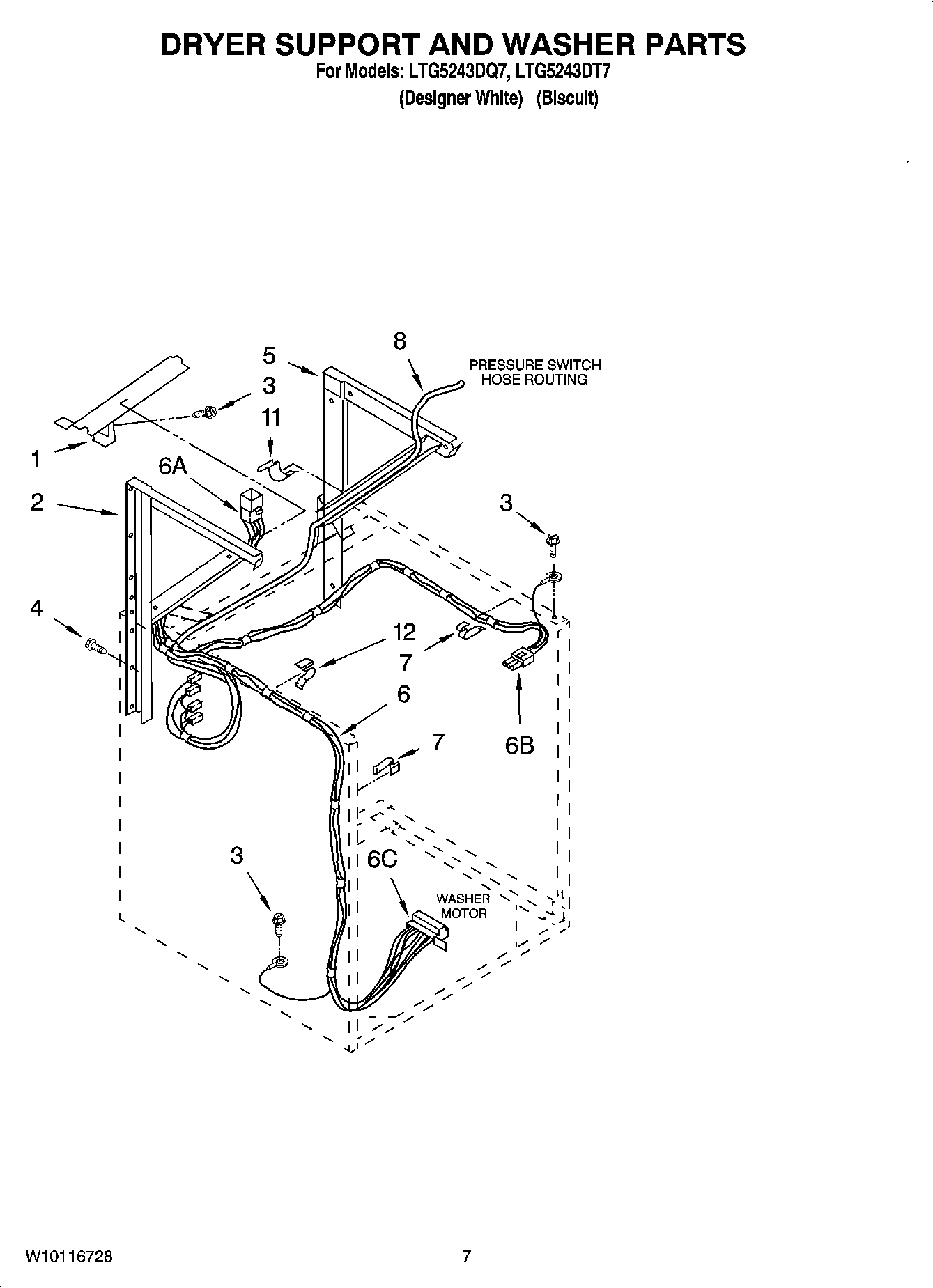

LTG5243DQ7 05 – DRYER SUPPORT AND WASHER PARTS

LTG5243DQ7 05 – DRYER SUPPORT AND WASHER PARTS

Written by

in

LTG5243DQ7 05 – DRYER SUPPORT AND WASHER PARTS

Products

PositionProduct
1694304 Whirlpool Channel Cover
2W11174025 Whirlpool Support Assembly
3SCREW
4W11676450 Whirlpool Screw
5W11174024 Whirlpool Support
6APlug, Terminal (12-Way) (Connects With Automatic Console Harness)
63957867 Whirlpool Wire Harness
6CWP62505 Whirlpool Connector
6BWP62889 Whirlpool Washer Lid Switch Terminal Receptacle
78528351 Whirlpool Clip
8WP353244 Whirlpool Hose
11WP90016 Whirlpool Clip
12CLIP
