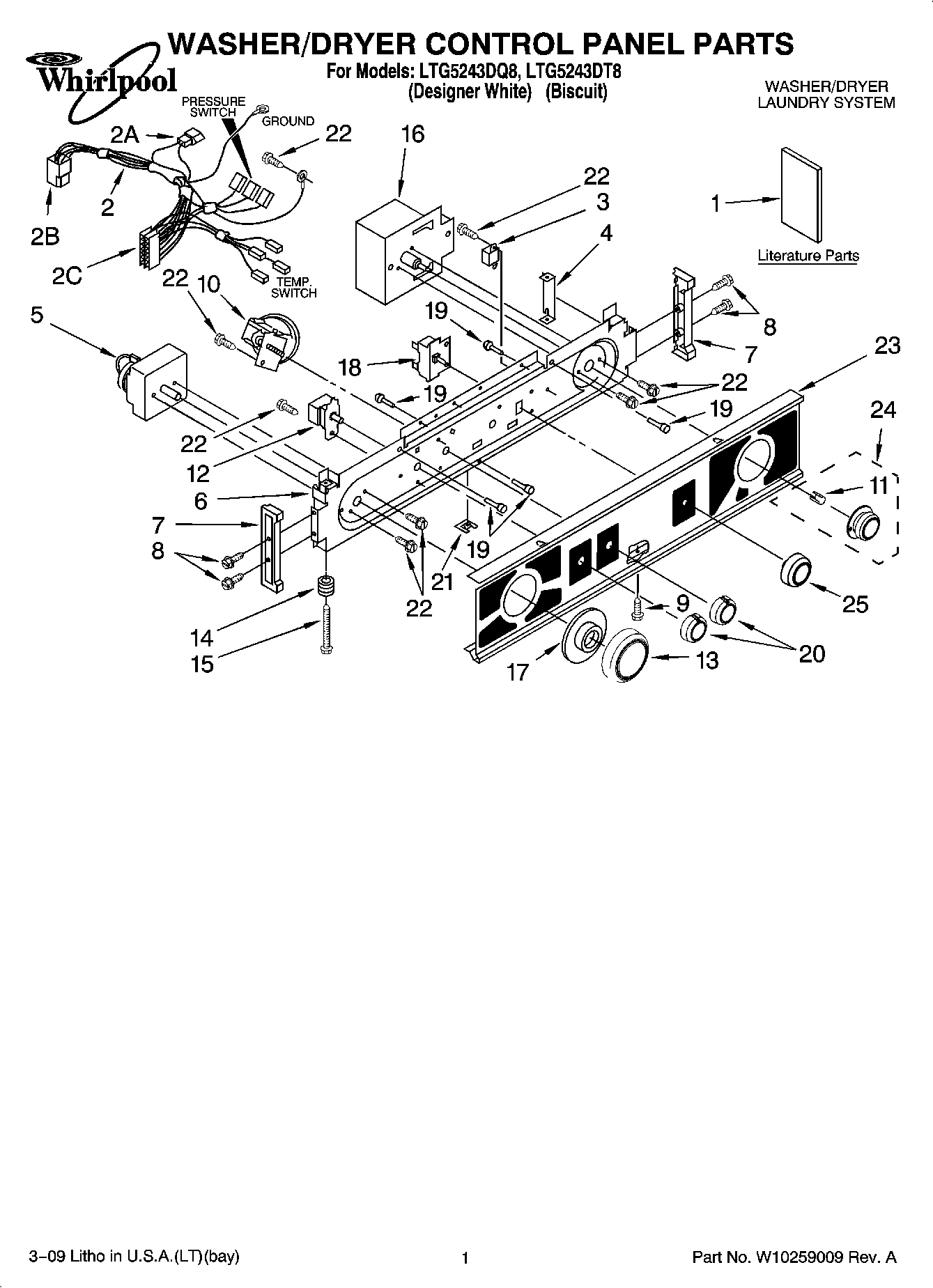

LTG5243DQ8 01 – WASHER/DRYER CONTROL PANEL PARTS

Products

Position	Product
1	Installation Instructions
1	Sheet, Cycle Feature
1	Use & Care Guide
1	Energy Guide
1	Wiring Diagram
02A	3350130 Whirlpool Connector
02C	Timer, Block Disconnect (White)
2	Harness, Console Wiring (Automatic) (Includes Illus. 2A, 2B & 2C)
02B	696073 Whirlpool Connector
3	WP694419 Whirlpool Buzzer Adjuster
4	WP692983 Whirlpool Console Lock
5	WP3952499 Whirlpool Timer Control
6	8528153 Whirlpool Bracket Assembly
7	3978584 Whirlpool End Cap
7	End Cap, Console (L.H. & R.H.)
8	NAMEPLATE
9	WP694091 Whirlpool Screw
10	WP3362987 Whirlpool Washer Water Level Switch
11	WP688805 Whirlpool Spring Clip
12	WP8054142 Whirlpool Temperature Switch
13	W10807860 Whirlpool White Control Knob
13	WP3957822 Whirlpool Knob
14	WP693151 Whirlpool Lock Spring
15	WP3400860 Whirlpool Screw
16	WP3406720 Whirlpool Timer
17	Dial, Timer (Washer) (Bisc
17	WP3957841 Whirlpool Dial
18	WP3977456 Whirlpool Start Switch
19	693152 Whirlpool Bumper
20	WP3957796 Whirlpool Knob
20	3957797 Whirlpool Knob
21	694037 Whirlpool Clip
22	WP90767 Whirlpool Screw
23	Panel, Control
23	Panel, Control (Biscuit)
24	3957753 Whirlpool Knob
24	WP3957752 Whirlpool Knob
25	WP3957800 Whirlpool Knob
