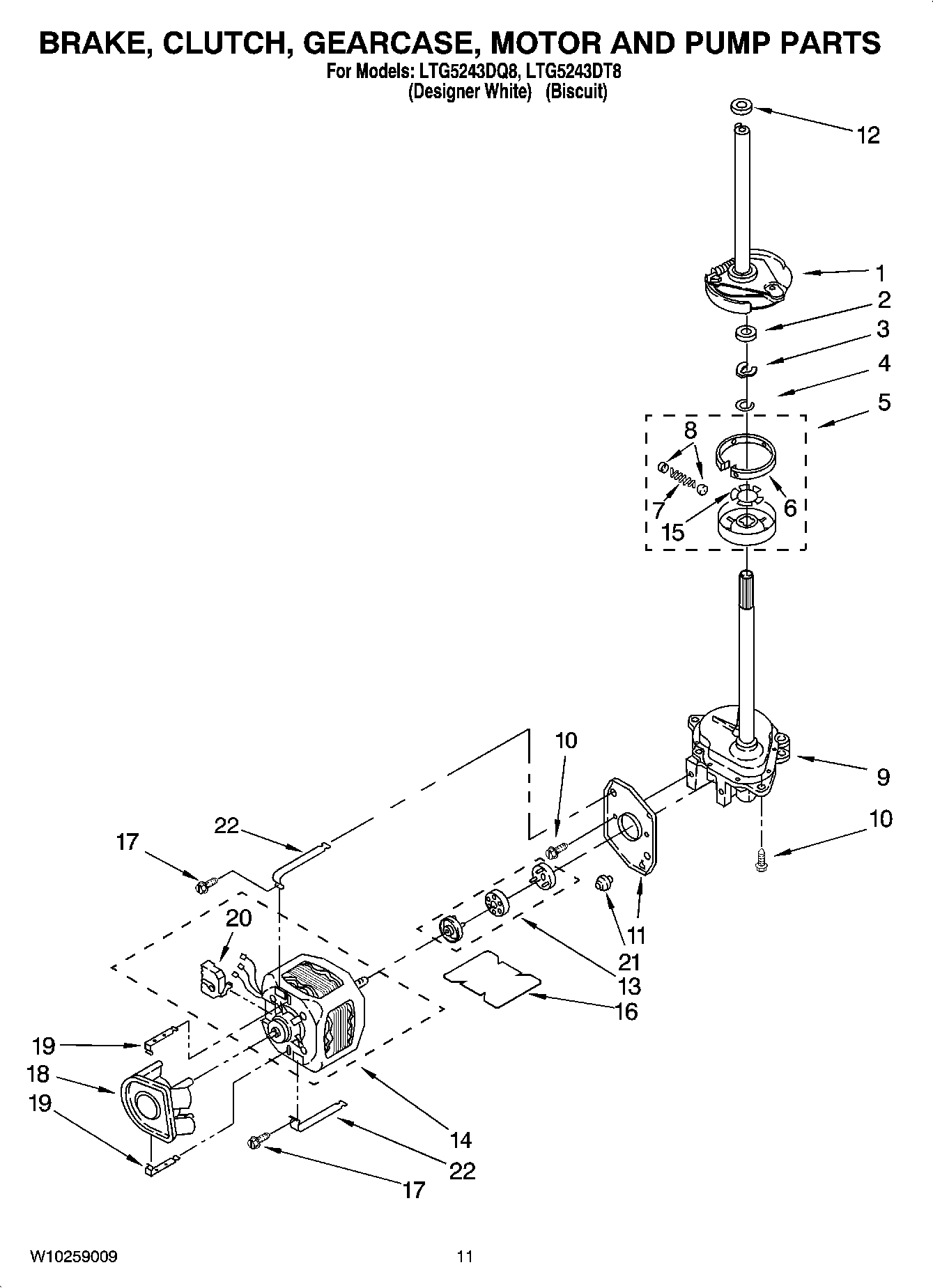

LTG5243DQ8 08 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

Products

Position	Product
1	W10820043 Whirlpool Washer Drive and Brake Basket Assembly
2	WP63292 Whirlpool Washer
3	WPW10080230 Whirlpool Ring
4	285353 Whirlpool Ring
5	285785 Whirlpool Washer Direct Drive Clutch
6	285790 Whirlpool Washer Clutch Band and Lining Kit
7	WP8559387 Whirlpool Spring
8	WP62646 Whirlpool Cap
9	3360629 Whirlpool Washer Gearcase Transmission
10	WP3400516 Whirlpool Screw
11	WP62611 Whirlpool Plate
12	WP8577374 Whirlpool Seal Shaft
13	285753A Whirlpool Washer Direct Drive Motor Coupling
14	WP661600 Whirlpool Drive Motor
15	Clip, Anti-Rattle
16	WP3946532 Whirlpool Shield
17	WP273556 Whirlpool Screw
18	WP3363394 Whirlpool Washer Drain Pump
19	WP8546127 Whirlpool Retainer Clip
20	Switch, Main Drive Motor
21	WP62691 Whirlpool Grommet
22	WPW10086010 Whirlpool Motor Retainer Clip
