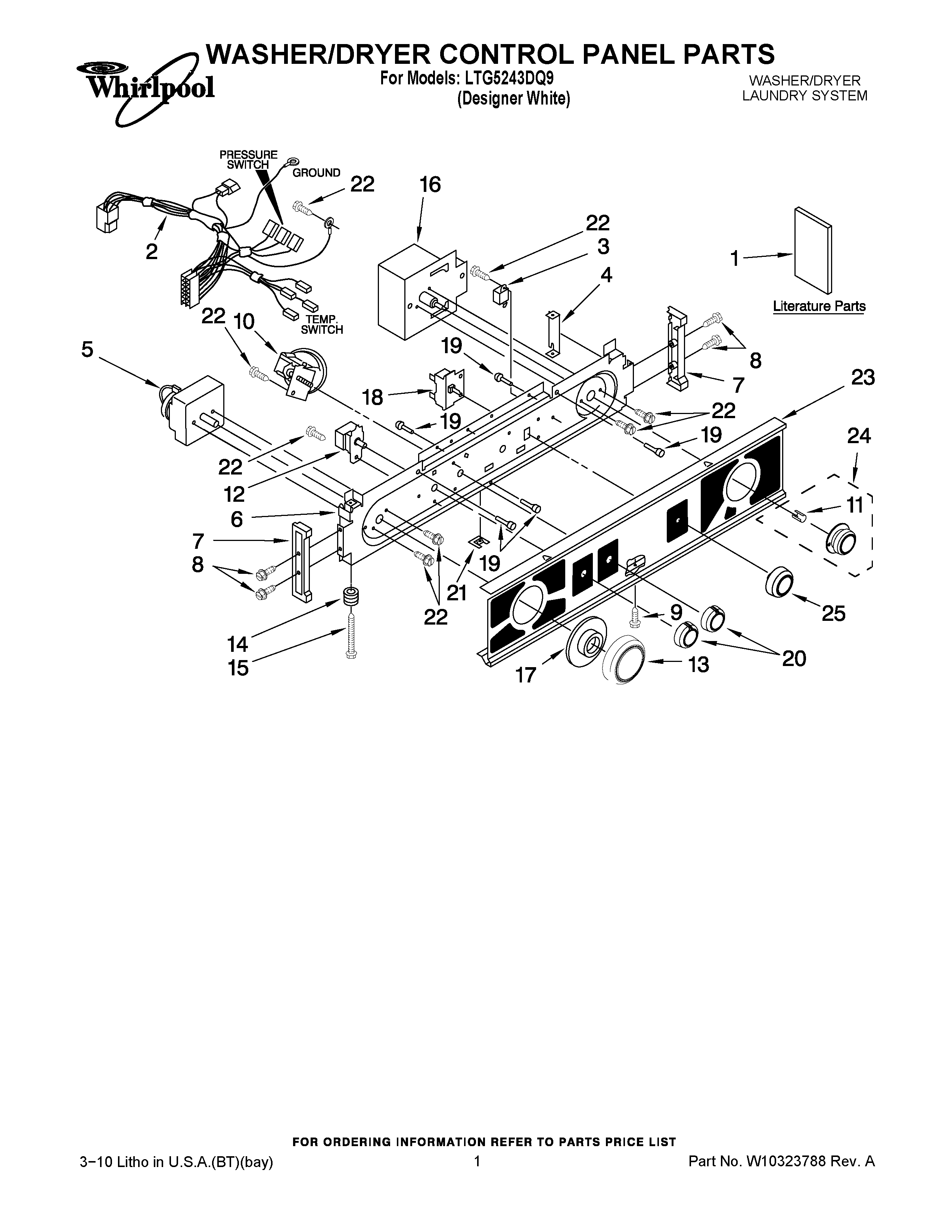

LTG5243DQ9 01 – WASHER/DRYER CONTROL PANEL PARTS

Products

PositionProduct
1Installation Instructions
1Wiring Diagram
1Use & Care Guide
1ENERGY GUIDE
1Sheet, Cycle Feature
2WPW10278751 Whirlpool Wire Harness
3WP694419 Whirlpool Buzzer Adjuster
4WP692983 Whirlpool Console Lock
5WP3952499 Whirlpool Timer Control
68528153 Whirlpool Bracket Assembly
7End Cap, Console (L.H. & R.H.)
8NAMEPLATE
9WP488627 Whirlpool Refrigerator Screw
10WPW10231404 Whirlpool Washer Water Level Switch
11WP688805 Whirlpool Spring Clip
12WP8054142 Whirlpool Temperature Switch
13W10807860 Whirlpool White Control Knob
14WP693151 Whirlpool Lock Spring
15WP3400860 Whirlpool Screw
16WP3406720 Whirlpool Timer
17WP3957841 Whirlpool Dial
18WP3977456 Whirlpool Start Switch
19693152 Whirlpool Bumper
20WP3957796 Whirlpool Knob
21694037 Whirlpool Clip
22WP90767 Whirlpool Screw
23Panel, Control
24WP3957752 Whirlpool Knob
25WP3957800 Whirlpool Knob
