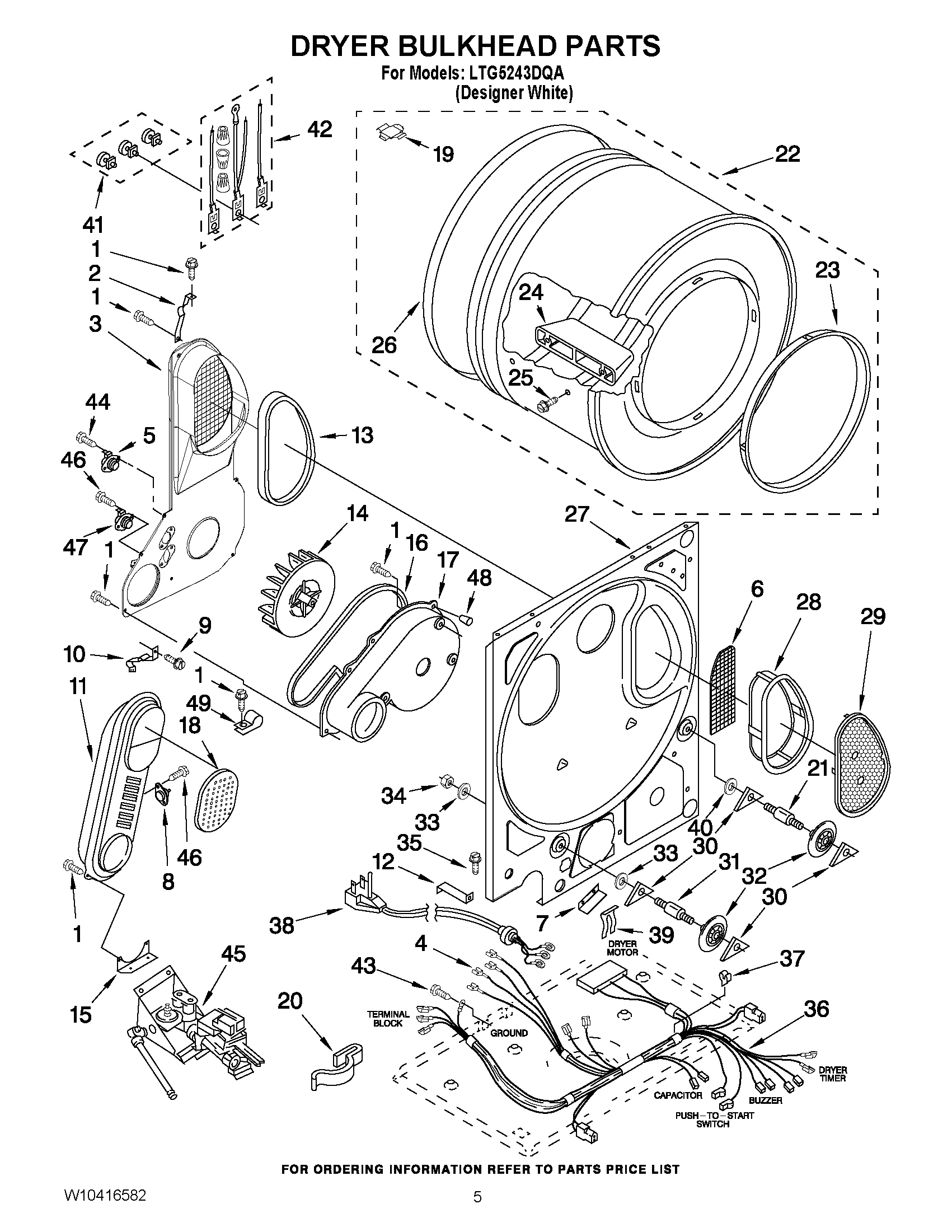

LTG5243DQA 04 – DRYER BULKHEAD PARTS

Products

Position	Product
1	SCREW
2	345396 Whirlpool Clip
3	Air Duct & Cover
4	WP94614 Whirlpool Terminal
5	THRMST-FIX
6	Screen, Back-Up
7	WPL 697571
8	W11050897 Whirlpool Dryer High Limit Thermostat
9	WP489463 Whirlpool Refrigerator Screw
10	279771 Whirlpool Clip
11	280007 Whirlpool Heater Box
12	WPL 3387208
13	SEAL
14	WP696426 Whirlpool Wheel
15	347455 Whirlpool Support Assembly
16	8066094 Whirlpool Seal
17	WP696418 Whirlpool Fan Scroll
18	345335 Whirlpool Cover
19	8066086 Whirlpool Plug
20	WP3400935 Whirlpool Dishwasher Clip
21	SHAFT SUPPORT ROLLER DRYER
22	3391834 Whirlpool Drum
23	WP3394508 Whirlpool Bearing Ring
24	685207 Whirlpool Dryer Baffle
25	W10853898 Whirlpool Screw
26	SEAL
27	Bulkhead
28	W10828351 Whirlpool Dryer Filter Lint Screen with Cover
30	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
31	SHAFT SUPPORT ROLLER DRYER
32	349241T Whirlpool Dryer Drum Support Roller Kit
33	WP348197 Whirlpool Washer Assembly
34	WP3359452 Whirlpool Nut
35	WP3390631 Whirlpool Screw
36	Harness, Main Dryer Wiring (Includes Illus. 36A, 36B, 36D)
37	CLIP
38	WPW10581952 Whirlpool Power Cord
39	W11712577 Whirlpool Clip
40	WP3388703 Whirlpool Washer
41	279393 Whirlpool Terminal Block Screw and Nut Kit
42	279318 Whirlpool Terminal
43	W10850756 Whirlpool Screw
44	WP488729 Whirlpool Refrigerator Door Screw
45	WPL 3402856
46	WP90767 Whirlpool Screw
47	WP8572767 Whirlpool Cutoff TML
48	W10491983 Whirlpool Tine Tip
49	488946 Whirlpool Air Conditioner Clamp
