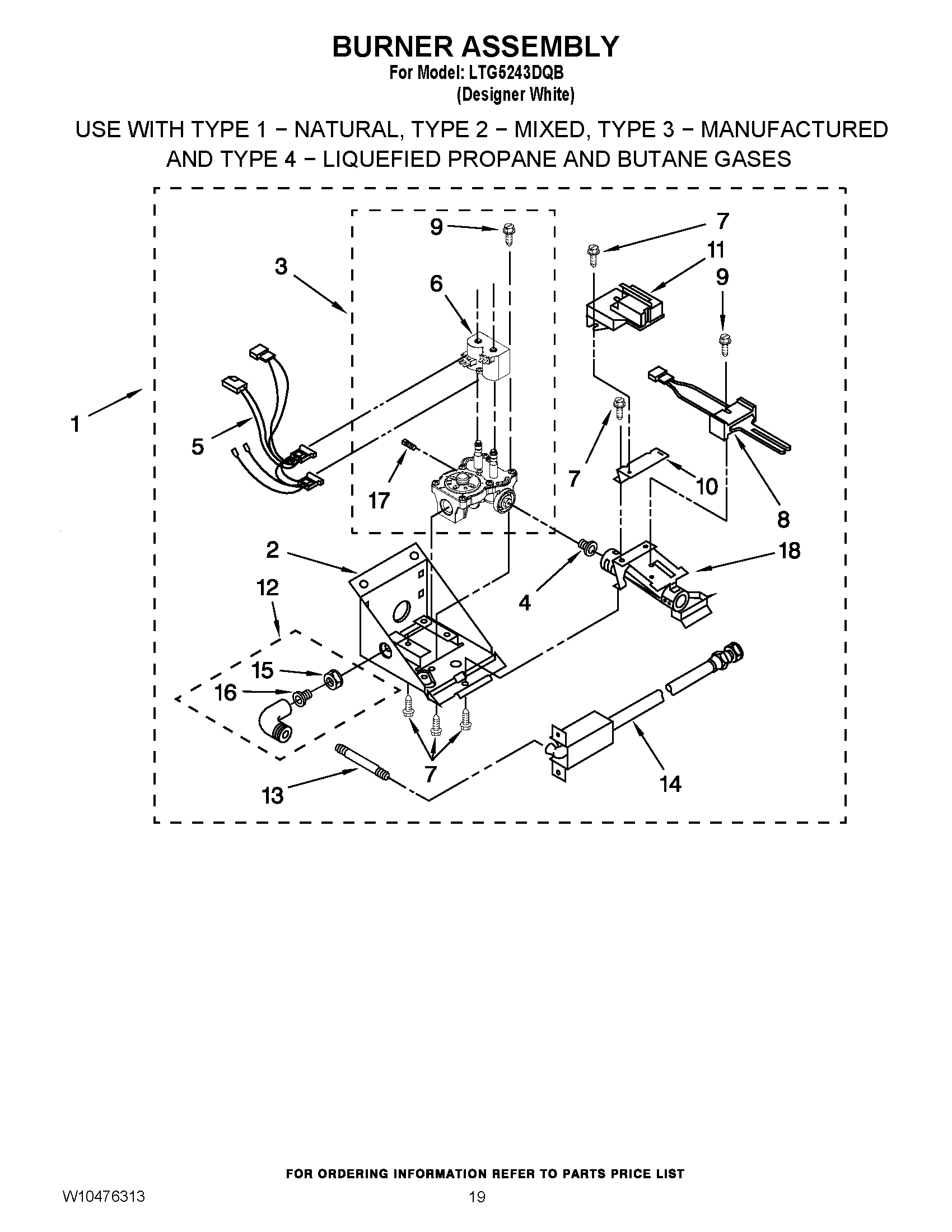

LTG5243DQB 16 – BURNER ASSEMBLY

LTG5243DQB 16 – BURNER ASSEMBLY

Written by

in

LTG5243DQB 16 – BURNER ASSEMBLY

Products

PositionProduct
NIW10402145 Whirlpool LP Gas Connection
1BURNER (REFER TO PAGE 19 FOR COMPLETE BREAKDOWN )
2Base, Burner
3279888 Whirlpool Valve Assembly
4Orifice, Burner (Type 1)
5WP3401849 Whirlpool Wire Harness
6WPW10328463 Whirlpool Valve Coil
7326049536 Whirlpool Screw
8279311 Whirlpool Dryer Flat Igniter with Bracket
9WPW10366705 Whirlpool Screw
10Bracket, Sensor
11WP338906 Whirlpool Dryer Gas Sensor
123406051 Whirlpool Elbow
13W10110397 Whirlpool Pipe
14Supply Line (Gas)
15NUT
163393767 Whirlpool Pipe
17W10295523 Whirlpool Plug
188578392 Whirlpool Burner
