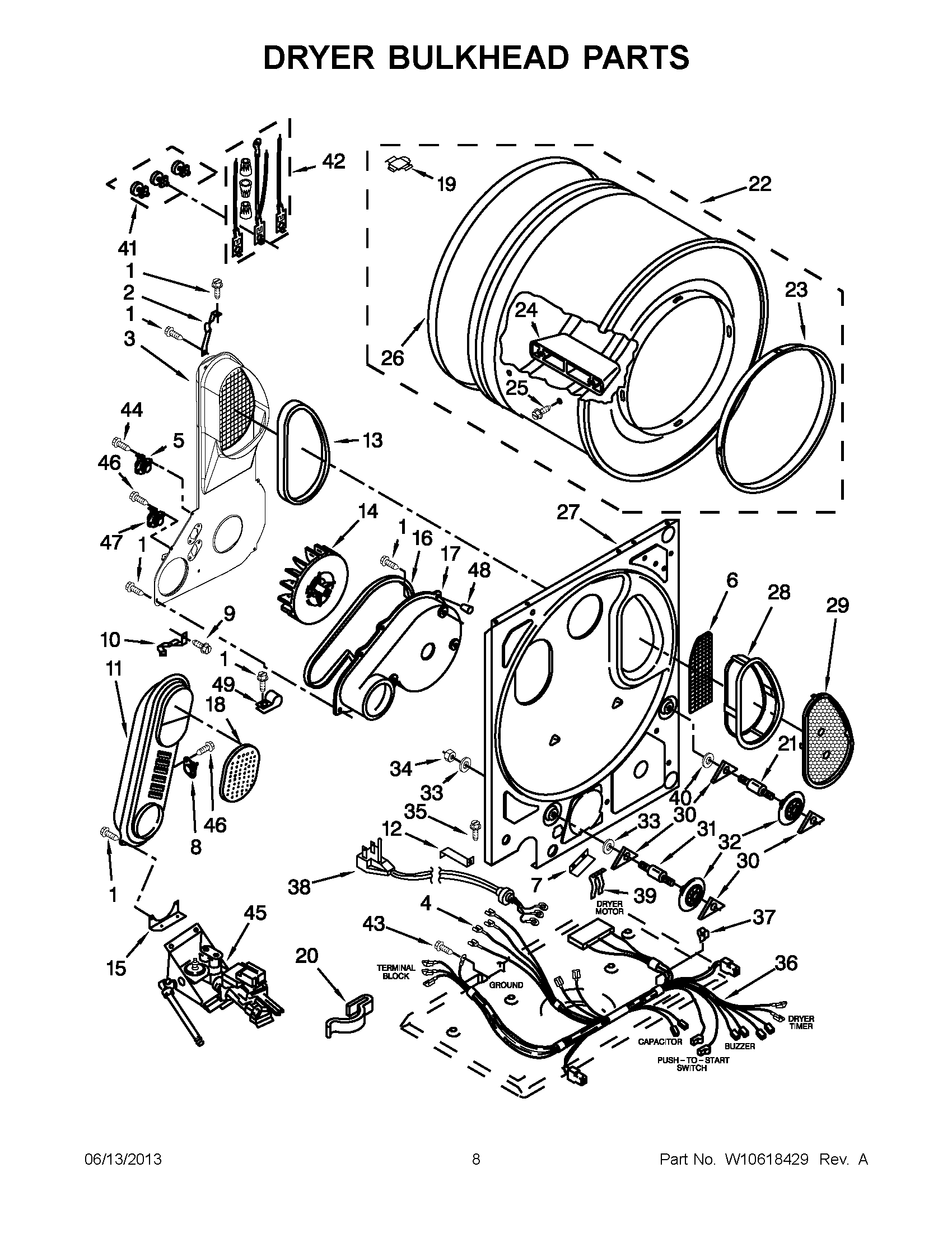

LTG5243DQC 04 – DRYER BULKHEAD PARTS

LTG5243DQC 04 – DRYER BULKHEAD PARTS

Written by

in

LTG5243DQC 04 – DRYER BULKHEAD PARTS

Products

PositionProduct
1SCREW
2345396 Whirlpool Clip
3696529 Whirlpool Air Duct
4WP94614 Whirlpool Terminal
5THRMST-FIX
6Screen, Back-Up
7WPL 697571
8W11050897 Whirlpool Dryer High Limit Thermostat
9WP489463 Whirlpool Refrigerator Screw
10279771 Whirlpool Clip
11280007 Whirlpool Heater Box
12WPL 3387208
13SEAL
14WP696426 Whirlpool Wheel
15347455 Whirlpool Support Assembly
168066094 Whirlpool Seal
17WP696418 Whirlpool Fan Scroll
18345335 Whirlpool Cover
198066086 Whirlpool Plug
20WP3400935 Whirlpool Dishwasher Clip
21SHAFT SUPPORT ROLLER DRYER
223391834 Whirlpool Drum
23WP3394508 Whirlpool Bearing Ring
24685207 Whirlpool Dryer Baffle
25W10853898 Whirlpool Screw
26SEAL
27Bulkhead
28W10828351 Whirlpool Dryer Filter Lint Screen with Cover
30WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
31SHAFT SUPPORT ROLLER DRYER
32349241T Whirlpool Dryer Drum Support Roller Kit
33WP348197 Whirlpool Washer Assembly
34WP3359452 Whirlpool Nut
35WP3390631 Whirlpool Screw
36W10488669 Whirlpool Wire Harness
37CLIP
38WPW10581952 Whirlpool Power Cord
39W11712577 Whirlpool Clip
40WP3388703 Whirlpool Washer
44WP488729 Whirlpool Refrigerator Door Screw
45WPL 3402856
46WP90767 Whirlpool Screw
47WP3392519 Whirlpool Dryer Thermal Fuse
48W10491983 Whirlpool Tine Tip
49488946 Whirlpool Air Conditioner Clamp
