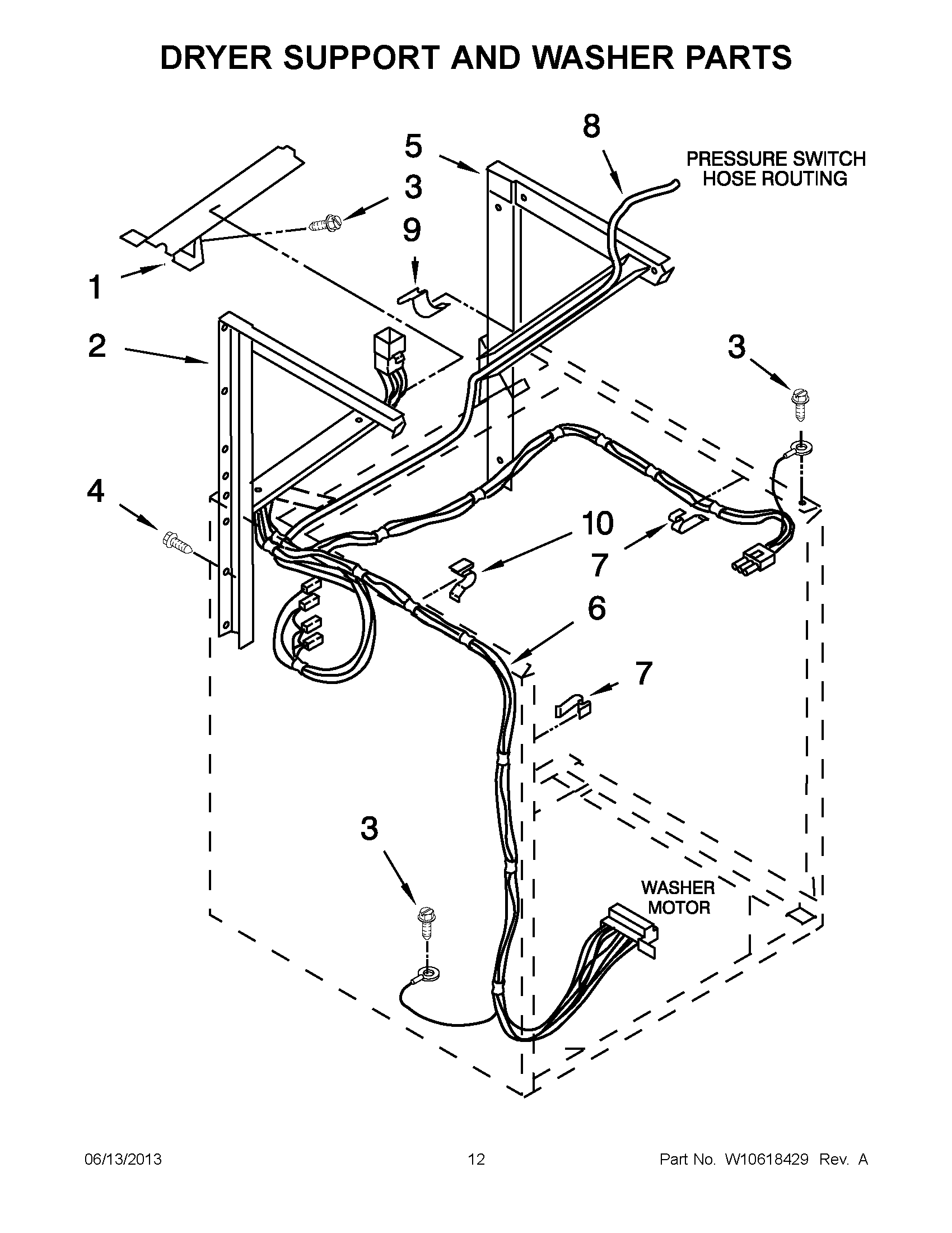

LTG5243DQC 06 – DRYER SUPPORT AND WASHER PARTS

LTG5243DQC 06 – DRYER SUPPORT AND WASHER PARTS

Written by

in

LTG5243DQC 06 – DRYER SUPPORT AND WASHER PARTS

Products

PositionProduct
1694304 Whirlpool Channel Cover
2W11174025 Whirlpool Support Assembly
3SCREW
4W11676450 Whirlpool Screw
5W11174024 Whirlpool Support
6W10303815 Whirlpool Harness Wire
78528351 Whirlpool Clip
8WP353244 Whirlpool Hose
9WP90016 Whirlpool Clip
10CLIP
