LTG5243DQC 08 – WASHER TOP AND LID PARTS

LTG5243DQC 08 – WASHER TOP AND LID PARTS

Written by

in

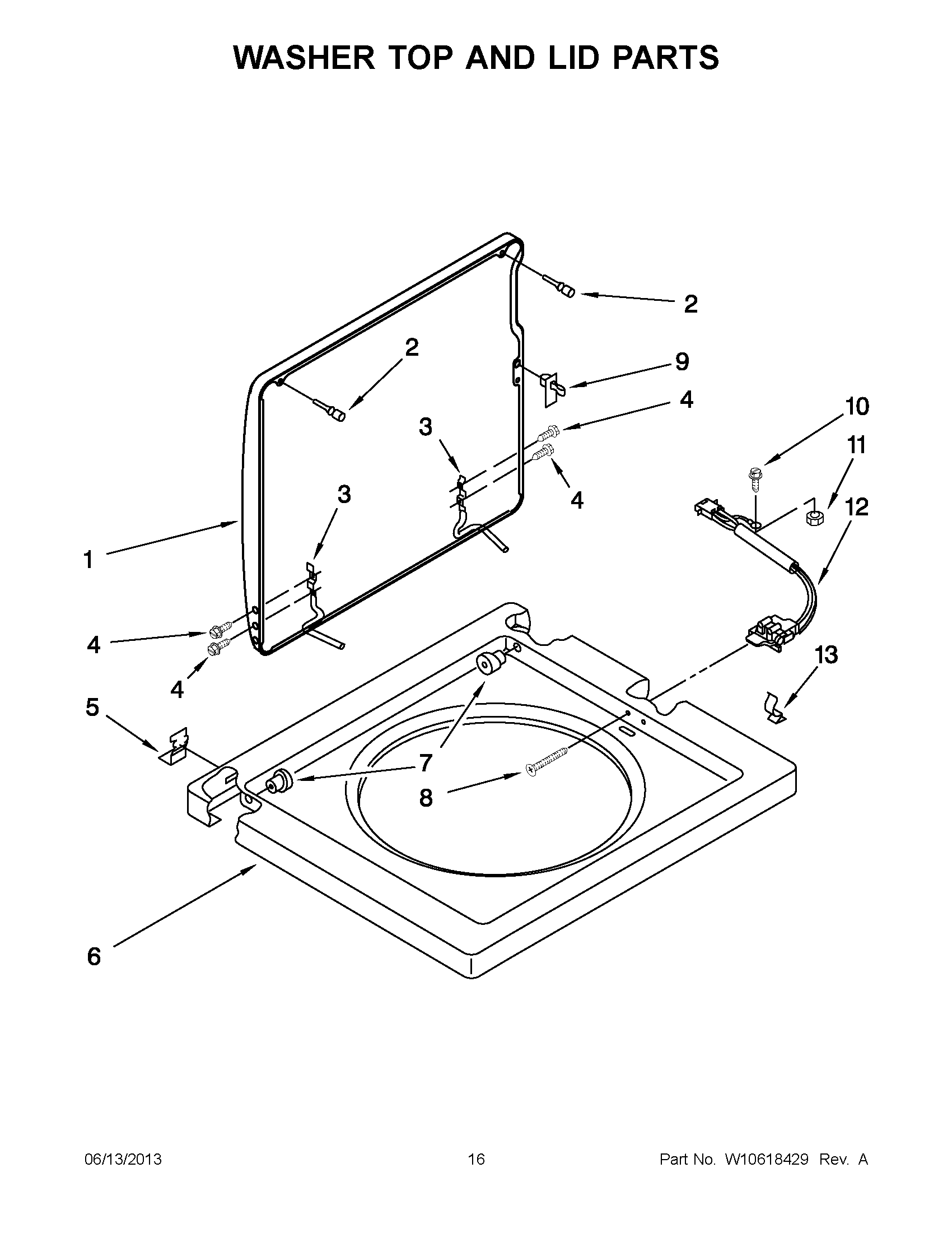

LTG5243DQC 08 – WASHER TOP AND LID PARTS

Products

PositionProduct
1WP3398848 Whirlpool Lid
2WP9724509 Whirlpool Bumper
3WP91770 Whirlpool Hinge
4SCREW
5WP692985 Whirlpool Clip Assembly
6WP384693 Whirlpool Top
7WP21258 Whirlpool Washer Lid Hinge Bearing
8WP3356311 Whirlpool Screw
9WP358684 Whirlpool Strike Assembly
10WP308544 Whirlpool Screw
11W10080180 Whirlpool Nut
12WP3355806 Whirlpool Lid Switch
13WP90016 Whirlpool Clip
