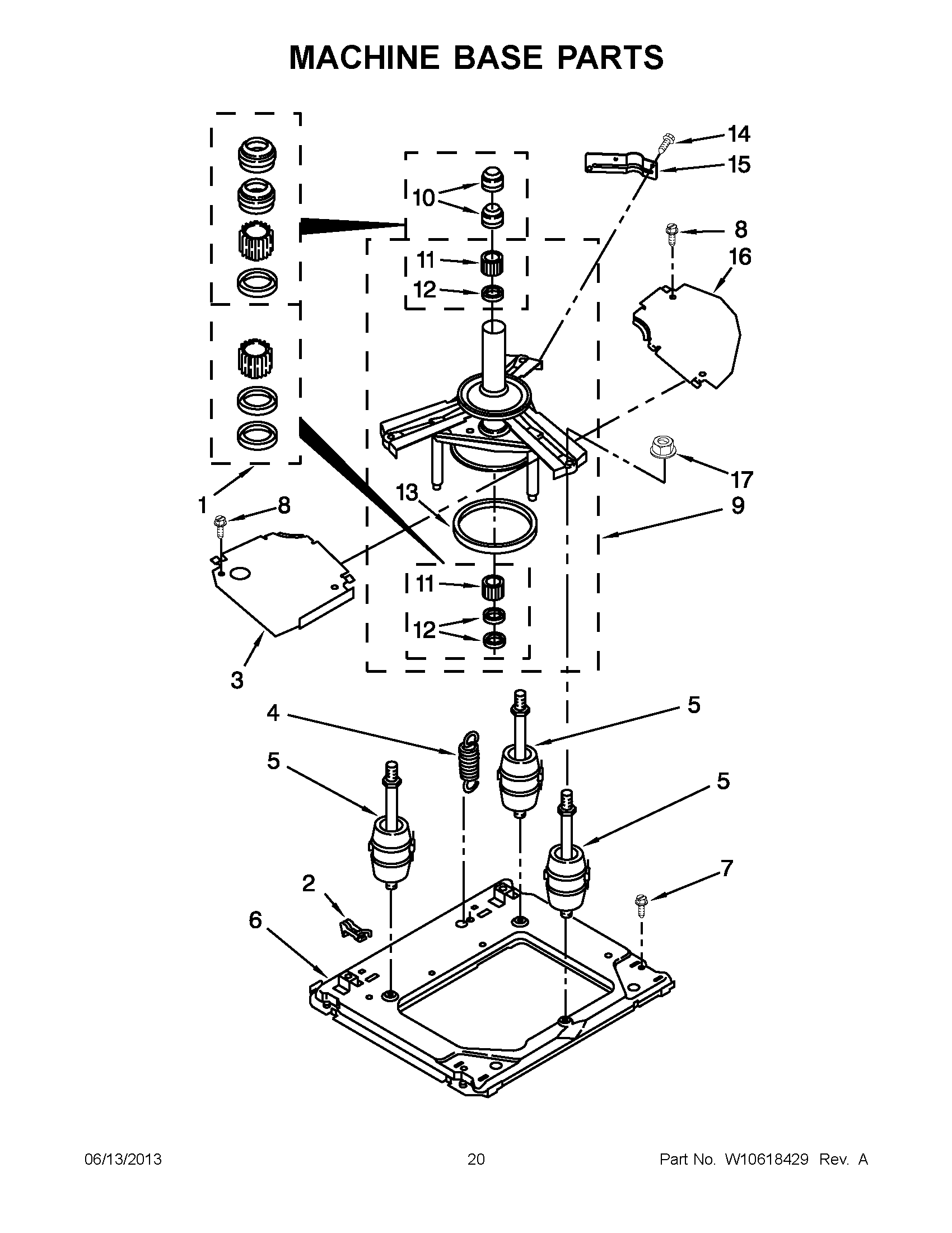

LTG5243DQC 10 – MACHINE BASE PARTS

LTG5243DQC 10 – MACHINE BASE PARTS

Written by

in

LTG5243DQC 10 – MACHINE BASE PARTS

Products

PositionProduct
1285203 Whirlpool CP Bearing
2696044 Whirlpool Block
3WP64137 Whirlpool Shield Assembly
4WPW10250667 Whirlpool Washer Suspension Spring
5W10207783 Whirlpool Washer Suspension Spring Kit (Set of 3)
6WP8577373 Whirlpool Base Assembly
7386011 Whirlpool Screw
8WP90767 Whirlpool Screw
9W10863713 Whirlpool Support
10WP8577376 Whirlpool Seal
11WP8546455 Whirlpool Bearing
12W11095997 Whirlpool Seal
13WP63134 Whirlpool Ring
14SCREW
1563636 Whirlpool Bracket
1663637 Whirlpool Shield
17279710 Whirlpool Nut
