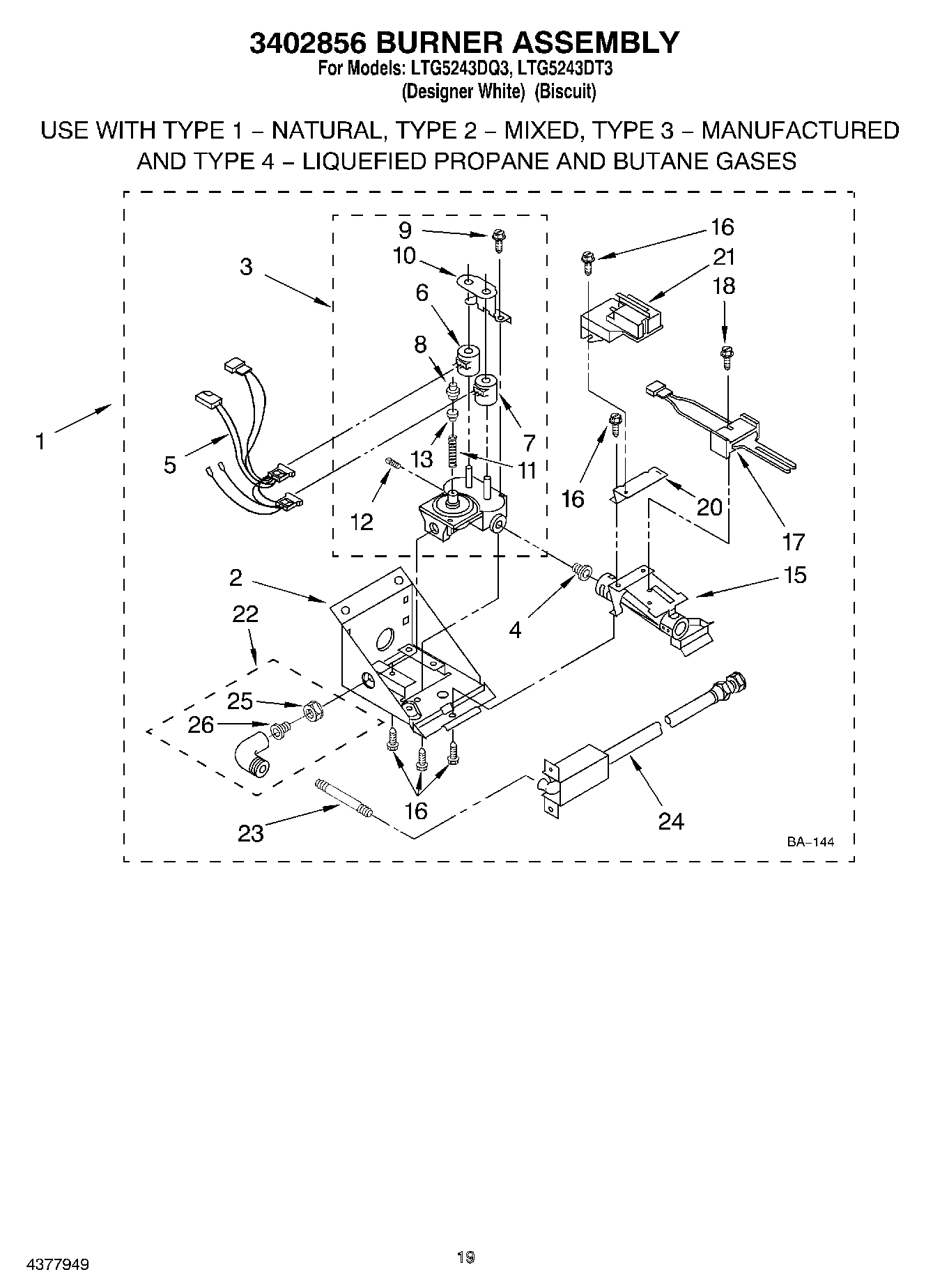

LTG5243DT3 16 – 3402856 BURNER ASSEMBLY

LTG5243DT3 16 – 3402856 BURNER ASSEMBLY

Products

PositionProduct
1WPL 3402856
2Base, Burner
3279888 Whirlpool Valve Assembly
4WP234822 Whirlpool Gas Orifice
4WP347743 Whirlpool Gas Orifice
5WP3401849 Whirlpool Wire Harness
6279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
8WP694424 Whirlpool Limiter
9694421 Whirlpool Screw Assembly
10694538 Whirlpool Bracket
11WP694422 Whirlpool Spring
12W10295523 Whirlpool Plug
13WP694423 Whirlpool Regulator
158578392 Whirlpool Burner
16WP693995 Whirlpool Screw
17279311 Whirlpool Dryer Flat Igniter with Bracket
18WPW10366705 Whirlpool Screw
20Bracket, Sensor
21WP338906 Whirlpool Dryer Gas Sensor
223406051 Whirlpool Elbow
23W10110397 Whirlpool Pipe
24Supply Line (Gas)
25Nut, Compression
263393767 Whirlpool Pipe
26W10402145 Whirlpool LP Gas Connection
