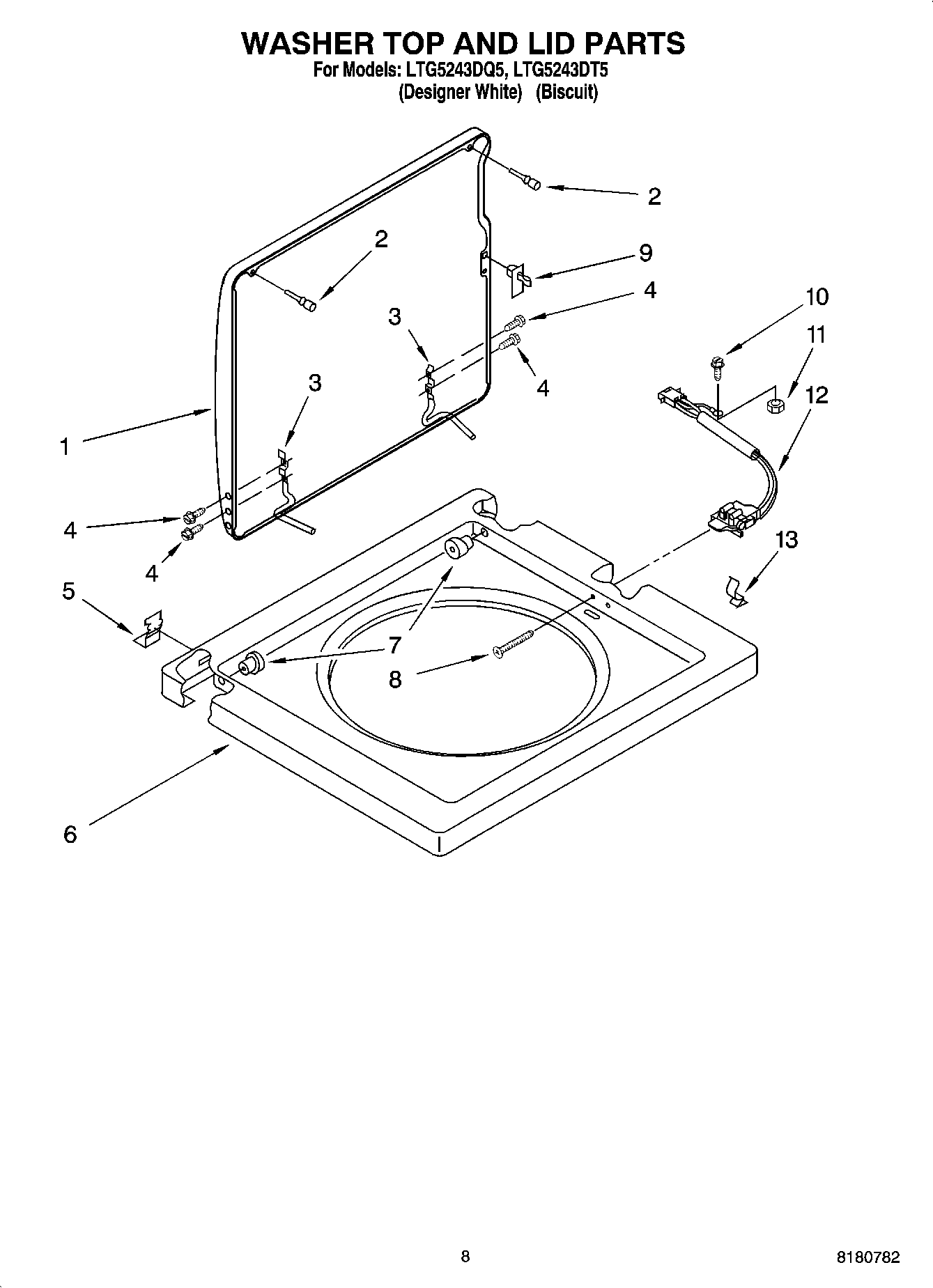

LTG5243DT5 06 – WASHER TOP AND LID PARTS

LTG5243DT5 06 – WASHER TOP AND LID PARTS

Written by

in

LTG5243DT5 06 – WASHER TOP AND LID PARTS

Products

PositionProduct
13398849 Whirlpool Lid Assembly
1WP3398848 Whirlpool Lid
280011 Whirlpool Washer Lid Bumper Kit of 2
3WP91770 Whirlpool Hinge
4SCREW
5WP692985 Whirlpool Clip Assembly
6WP384693 Whirlpool Top
6Top (Biscuit)
7WP21258 Whirlpool Washer Lid Hinge Bearing
8WP3356311 Whirlpool Screw
9WP358684 Whirlpool Strike Assembly
10WP308544 Whirlpool Screw
11W10080180 Whirlpool Nut
12WP3355806 Whirlpool Lid Switch
13WP90016 Whirlpool Clip
