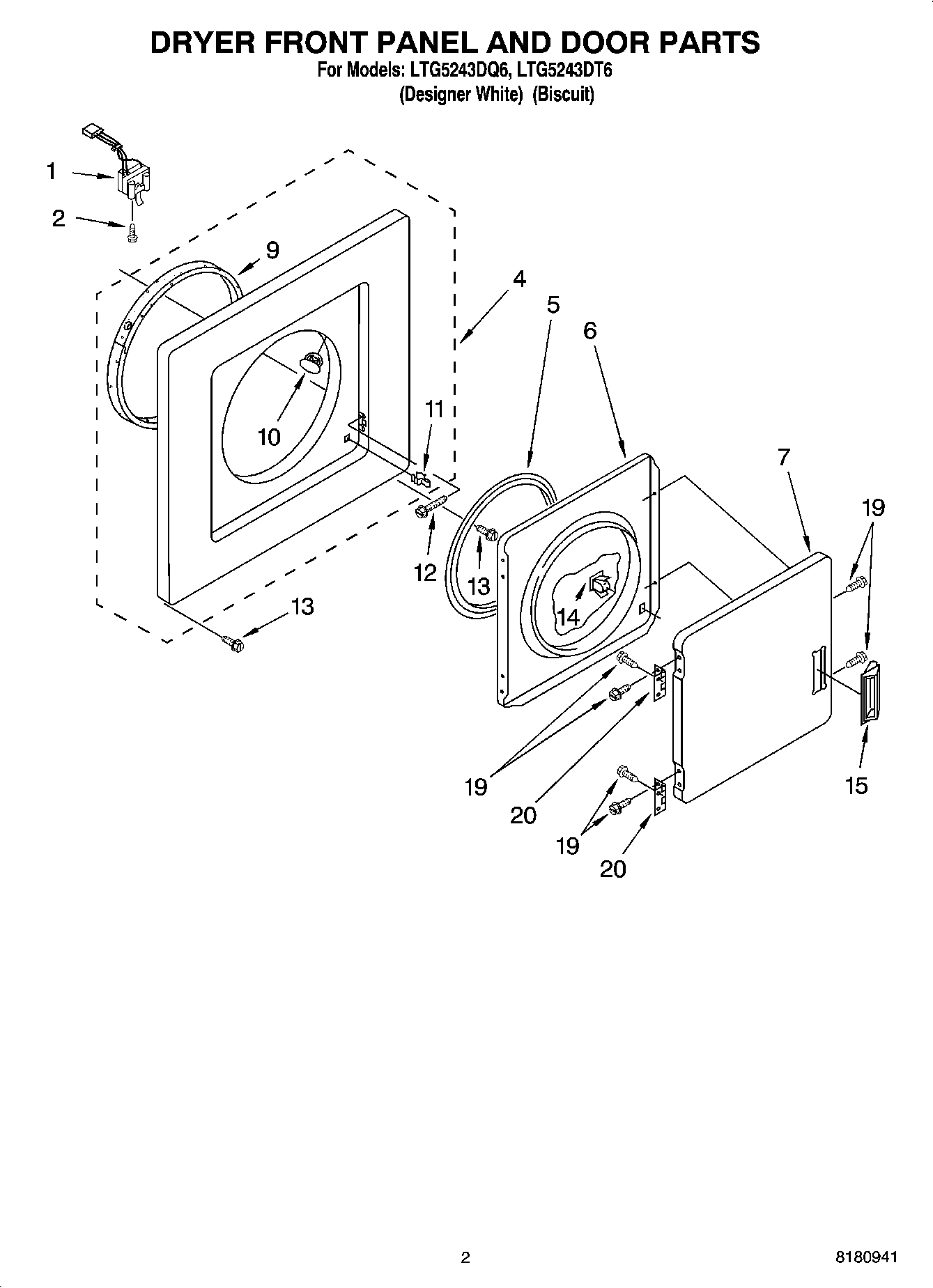

LTG5243DT6 02 – DRYER FRONT PANEL AND DOOR PARTS

Products

Position	Product
1	WP3406108 Whirlpool Door Switch
2	WP3395530 Whirlpool Screw
4	Panel, Front (Biscuit)
4	285314 Whirlpool O/S1 Panel
5	W11613302 Whirlpool Door Seal
6	280077 Whirlpool Door
7	3978598 Whirlpool Door
7	WP348205 Whirlpool Door
9	279264 Whirlpool Bearing and Seal Kit
10	279220 Whirlpool Clip
11	279570 Whirlpool Dryer Door Latch Kit
12	SCREW
14	WP3389441 Whirlpool Door Catch
15	WP686711 Whirlpool Door Handle
15	3978592 Whirlpool Handle
19	WP694091 Whirlpool Screw
20	WP348023 Whirlpool Hinge
