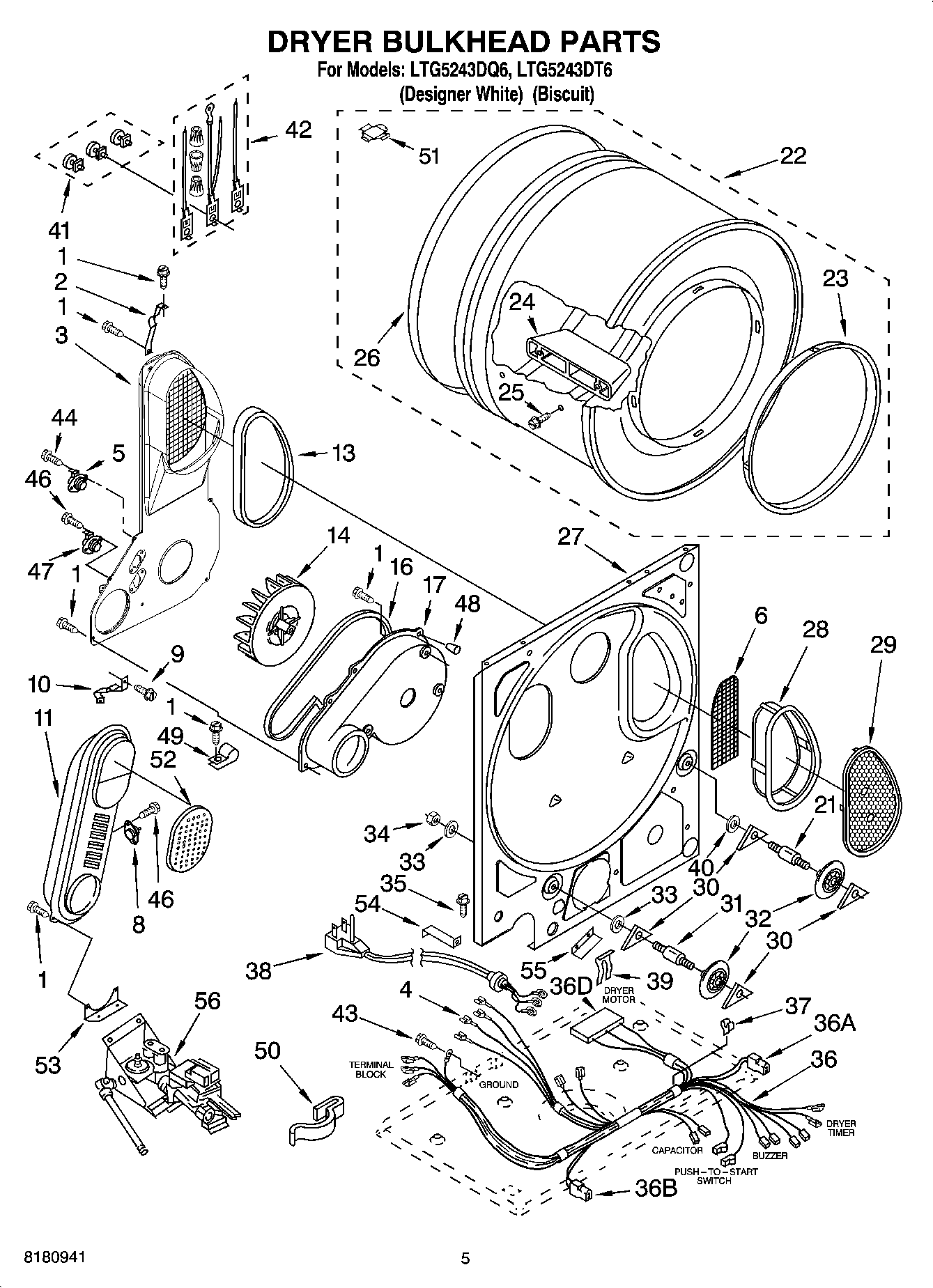

LTG5243DT6 04 – DRYER BULKHEAD PARTS

LTG5243DT6 04 – DRYER BULKHEAD PARTS

Written by

in

LTG5243DT6 04 – DRYER BULKHEAD PARTS

Products

PositionProduct
1SCREW
2345396 Whirlpool Clip
3Air Duct & Cover
4WP94614 Whirlpool Terminal
5THRMST-FIX
6Screen, Back-Up
8W11050897 Whirlpool Dryer High Limit Thermostat
9WP489463 Whirlpool Refrigerator Screw
10279771 Whirlpool Clip
11280007 Whirlpool Heater Box
13SEAL
14WP696426 Whirlpool Wheel
168066094 Whirlpool Seal
17WP696418 Whirlpool Fan Scroll
21SHAFT SUPPORT ROLLER DRYER
223391834 Whirlpool Drum
23WP3394508 Whirlpool Bearing Ring
24685207 Whirlpool Dryer Baffle
25WPW10109200 Whirlpool Screw
26SEAL
27Bulkhead
28W10828351 Whirlpool Dryer Filter Lint Screen with Cover
30WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
31SHAFT SUPPORT ROLLER DRYER
32349241T Whirlpool Dryer Drum Support Roller Kit
33WP348197 Whirlpool Washer Assembly
34WP3359452 Whirlpool Nut
35WP3390631 Whirlpool Screw
36AReceptacle, Latching (2-Way) (Uses Terminal 94614)
36D3395683 Whirlpool Connector
36Harness, Main Dryer Wiring (Includes Illus. 36A, 36B, 36D)
36BReceptacle, (Gas Valve)
37CLIP
38WPW10581952 Whirlpool Power Cord
39W11712577 Whirlpool Clip
40WP3388703 Whirlpool Washer
41279393 Whirlpool Terminal Block Screw and Nut Kit
42279318 Whirlpool Terminal
43W10850756 Whirlpool Screw
44WP488729 Whirlpool Refrigerator Door Screw
46WP90767 Whirlpool Screw
47WP8572767 Whirlpool Cutoff TML
48W10491983 Whirlpool Tine Tip
49488946 Whirlpool Air Conditioner Clamp
50WP3400935 Whirlpool Dishwasher Clip
518066086 Whirlpool Plug
52345335 Whirlpool Cover
53347455 Whirlpool Support Assembly
54WPL 3387208
55WPL 697571
56WPL 3402856
