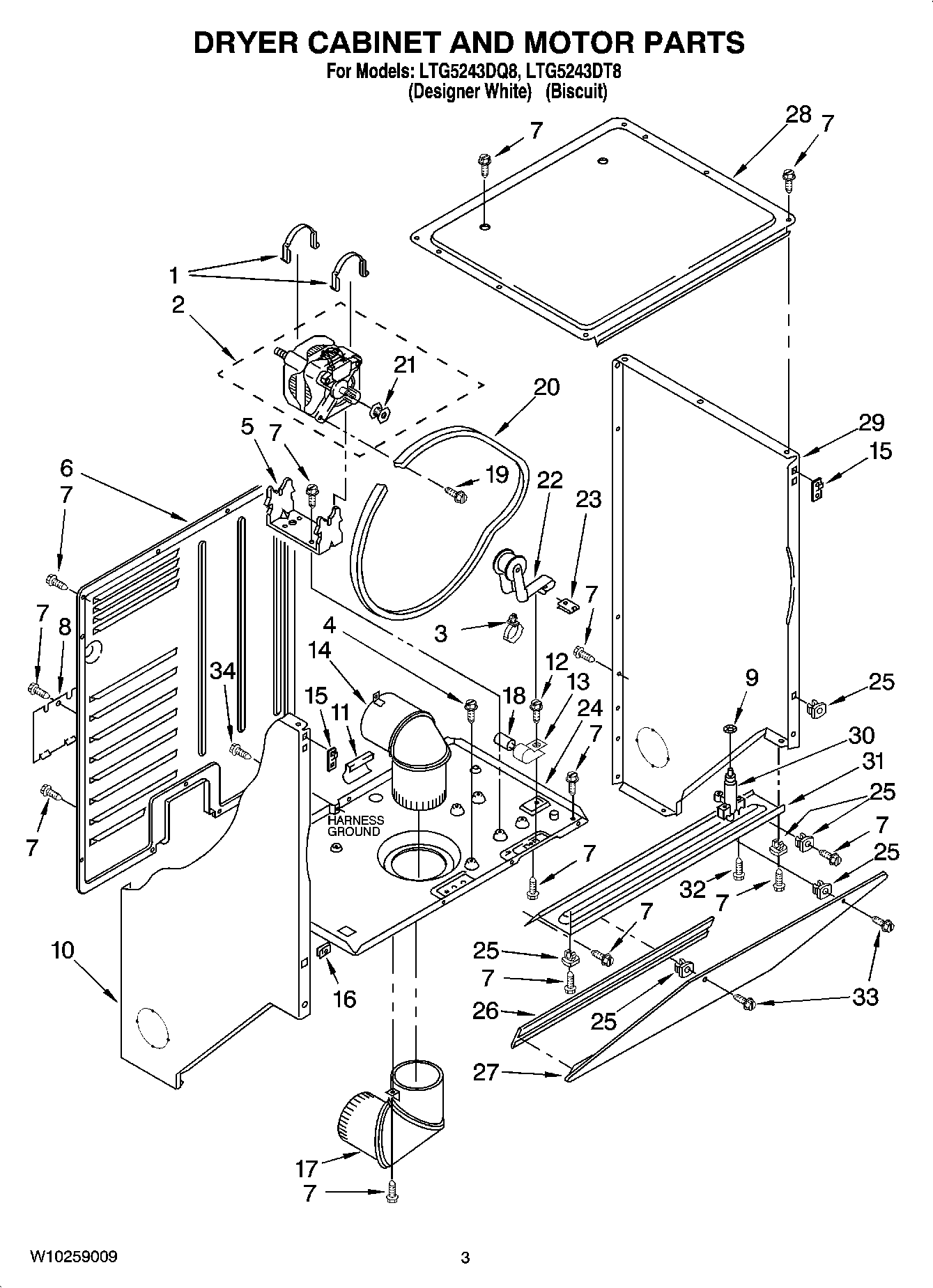

LTG5243DT8 03 – DRYER CABINET AND MOTOR PARTS

Products

Position	Product
1	CLAMP
2	WPW10448901 Whirlpool Drive Motor
3	8559320 Whirlpool Clip
4	WP3351614 Whirlpool Screw
5	696541 Whirlpool Base
6	Panel, Rear
8	Cover, Terminal Block
9	WP90296 Whirlpool Clip
10	Panel, Side (L.H.) (Biscuit)
10	WP3402293 Whirlpool Panel Assembly
11	686770 Whirlpool Support Bracket
12	SCREW
13	357030 Whirlpool Clamp
14	Elbow, Upper
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	WP98234 Whirlpool Nut
17	3399603 Whirlpool Elbow
18	CAPACITOR
19	WP3390631 Whirlpool Screw
20	3394652 Whirlpool Drum Belt
21	8066051 Whirlpool Motor Pulley
22	WP691366 Whirlpool Dryer Idler Pulley Assembly
23	WP692771 Whirlpool Nut
24	3399633 Whirlpool Dryer Base
25	WP692400 Whirlpool Nut
26	WP692926 Whirlpool Cover Appliance
27	3978591 Whirlpool Panel
27	692933 Whirlpool Panel
28	WP692641 Whirlpool Dryer Top Assembly
29	WP3402287 Whirlpool Panel
29	Panel, Side (R.H.) (Biscuit)
30	WP693145 Whirlpool Lid Latch
31	WP692781 Whirlpool Closure Assembly
31	Closure, Control Area (Biscuit)
32	Screw & Washer
33	WP693304 Whirlpool Screw
34	W10850756 Whirlpool Screw
