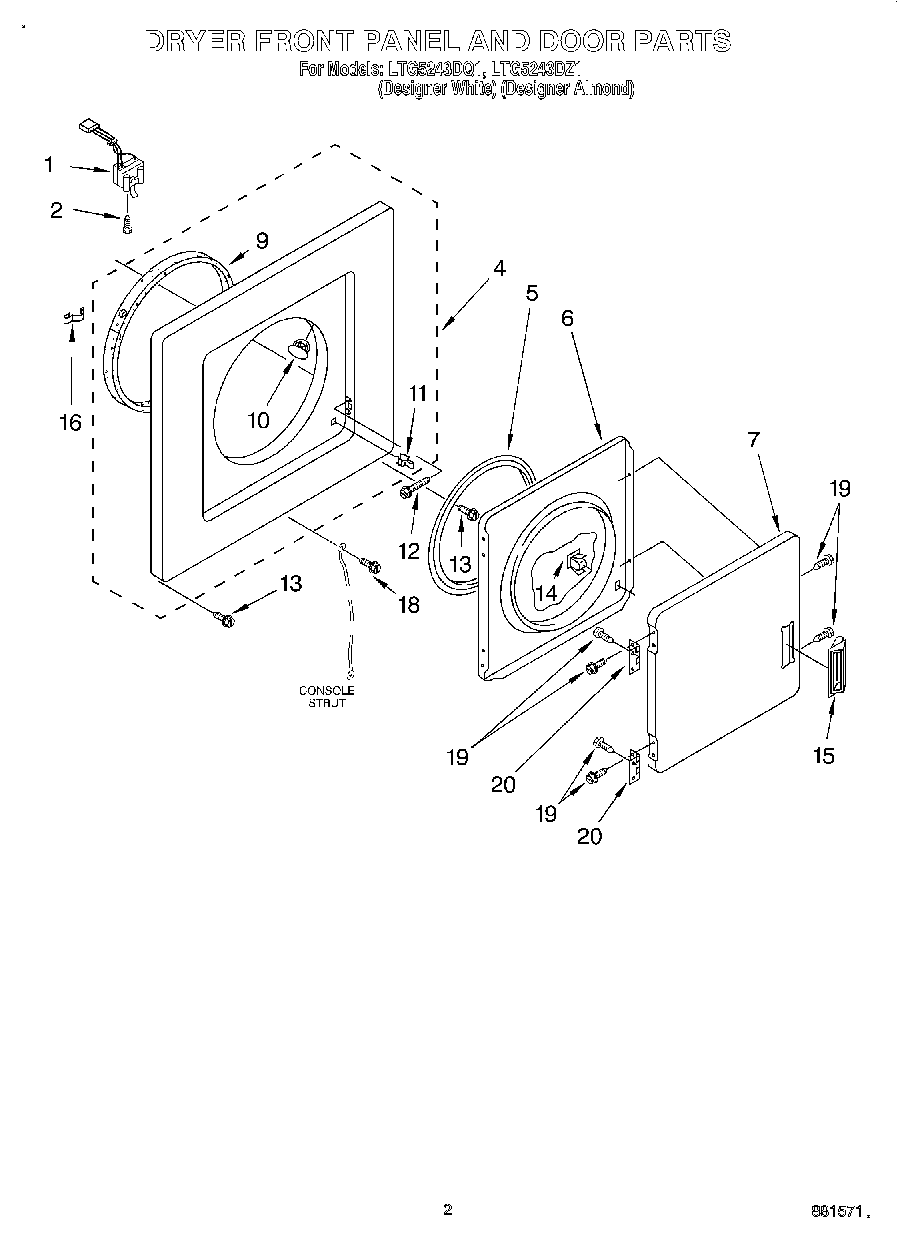

LTG5243DZ1 02 – DRYER FRONT PANEL AND DOOR

LTG5243DZ1 02 – DRYER FRONT PANEL AND DOOR

Written by

in

LTG5243DZ1 02 – DRYER FRONT PANEL AND DOOR

Products

PositionProduct
1WP3406108 Whirlpool Door Switch
2WP3395530 Whirlpool Screw
4Panel, Front (Almond)
4285314 Whirlpool O/S1 Panel
5W11613302 Whirlpool Door Seal
6280077 Whirlpool Door
7Door, Front (Almond)
7WP348205 Whirlpool Door
9279264 Whirlpool Bearing and Seal Kit
10279220 Whirlpool Clip
11279570 Whirlpool Dryer Door Latch Kit
12WP98129 Whirlpool Screw
13SCREW
14WP3389441 Whirlpool Door Catch
15WP686711 Whirlpool Door Handle
15Handle, Door (Almond)
16Support Protector
18WP3390631 Whirlpool Screw
19WP694091 Whirlpool Screw
20WP348023 Whirlpool Hinge
