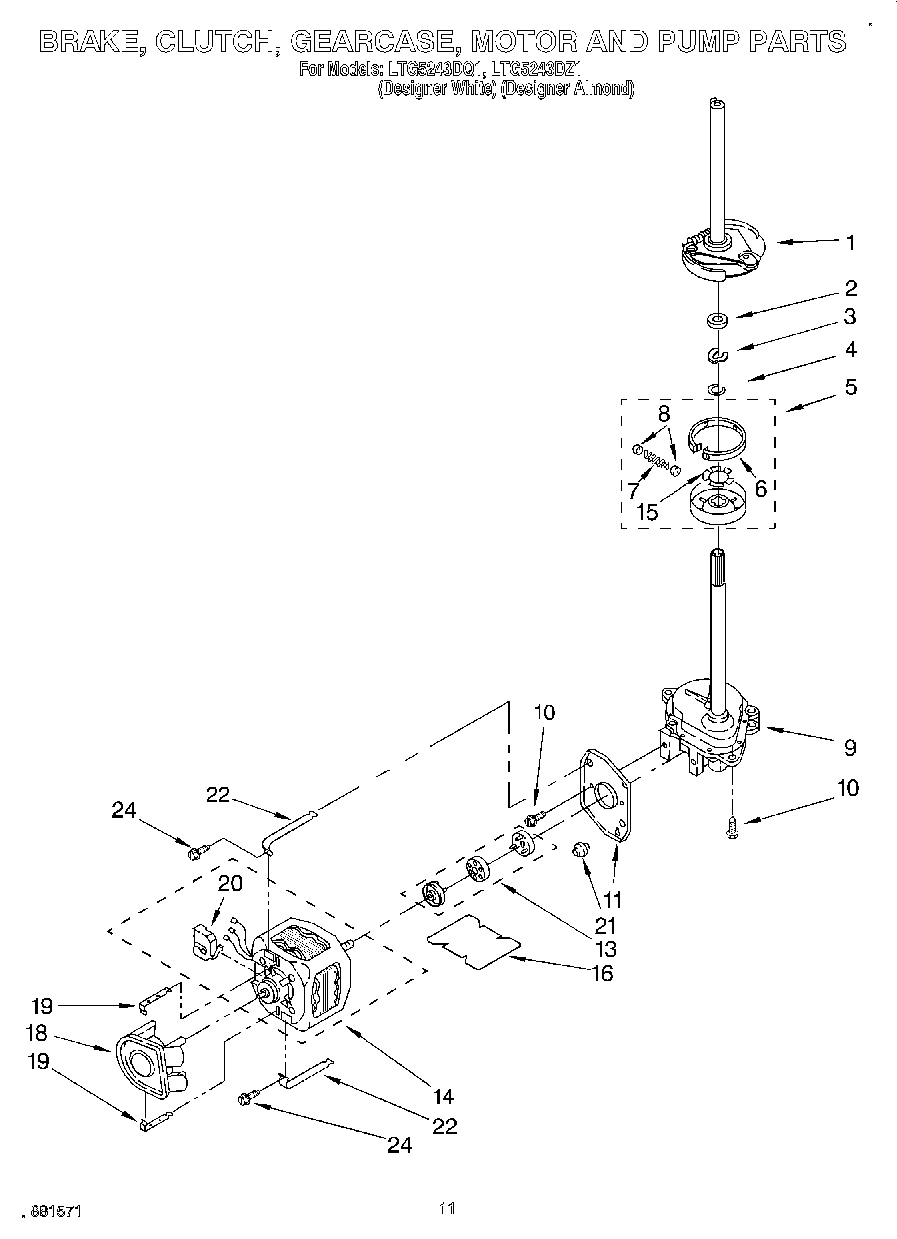

LTG5243DZ1 08 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMPadmin2025-04-26T12:20:14+00:00LTG5243DZ1 08 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP ProductsPositionProduct1W10820043 Whirlpool Washer Drive and Brake Basket Assembly2WP63292 Whirlpool Washer3WPW10080230 Whirlpool Ring4285353 Whirlpool Ring5285785 Whirlpool Washer Direct Drive Clutch6285790 Whirlpool Washer Clutch Band and Lining Kit7WP8559387 Whirlpool Spring8WP62646 Whirlpool Cap93360629 Whirlpool Washer Gearcase Transmission10WP3400516 Whirlpool Screw11WP62611 Whirlpool Plate13285753A Whirlpool Washer Direct Drive Motor Coupling14WP661600 Whirlpool Drive Motor15Clip, Anti-Rattle16WP3946532 Whirlpool Shield18WP3363394 Whirlpool Washer Drain Pump19WP8546127 Whirlpool Retainer Clip20Switch, Main Drive Motor21WP62691 Whirlpool Grommet22WPW10086010 Whirlpool Motor Retainer Clip24WP273556 Whirlpool Screw
