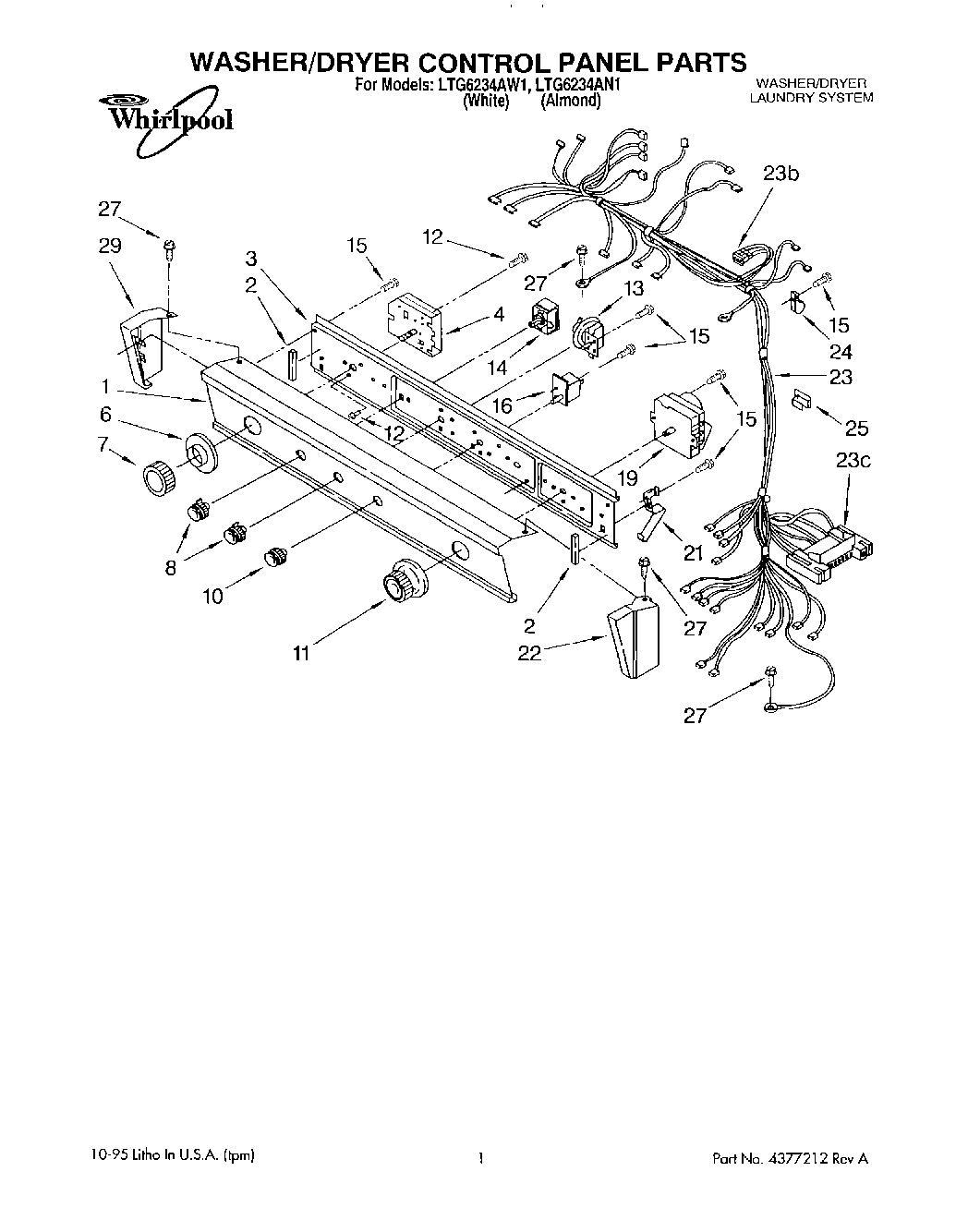

LTG6234AN1 01 – WASHER/DRYER CONTROL PANEL

Products

Position	Product
1	Panel, Control (White)
1	Panel, Control (Almond)
2	3390688 Whirlpool Bumper Assembly
3	Bracket, Control (Includes Illus. 2)
4	285938 Whirlpool Washer Timer
6	Skirt, Timer Knob (Washer) (White)
6	Skirt, Timer Knob (Washer) (Almond)
7	WP3364293 Whirlpool Timer Knob
8	3957797 Whirlpool Knob
8	WP3957796 Whirlpool Knob
10	WP3957800 Whirlpool Knob
11	WP3957750 Whirlpool Knob
12	WP356418 Whirlpool Screw
13	Switch, Pressure
14	Switch, Water Temperature (Alt.)
15	WP3390631 Whirlpool Screw
16	Switch, Push-To-Start
19	WP3976569 Whirlpool Timer
21	3389453 Whirlpool Hinge Assembly
22	End Cap-Right Hand (Almond)
22	End Cap (RH)
23B	WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
23C	3395683 Whirlpool Connector
23	Harness – Dryer
24	7111P002-60 Whirlpool Clamp
25	Clip, Harness (2)
27	SCREW
29	End Cap (LH)
29	End Cap (LH) (Almond)
