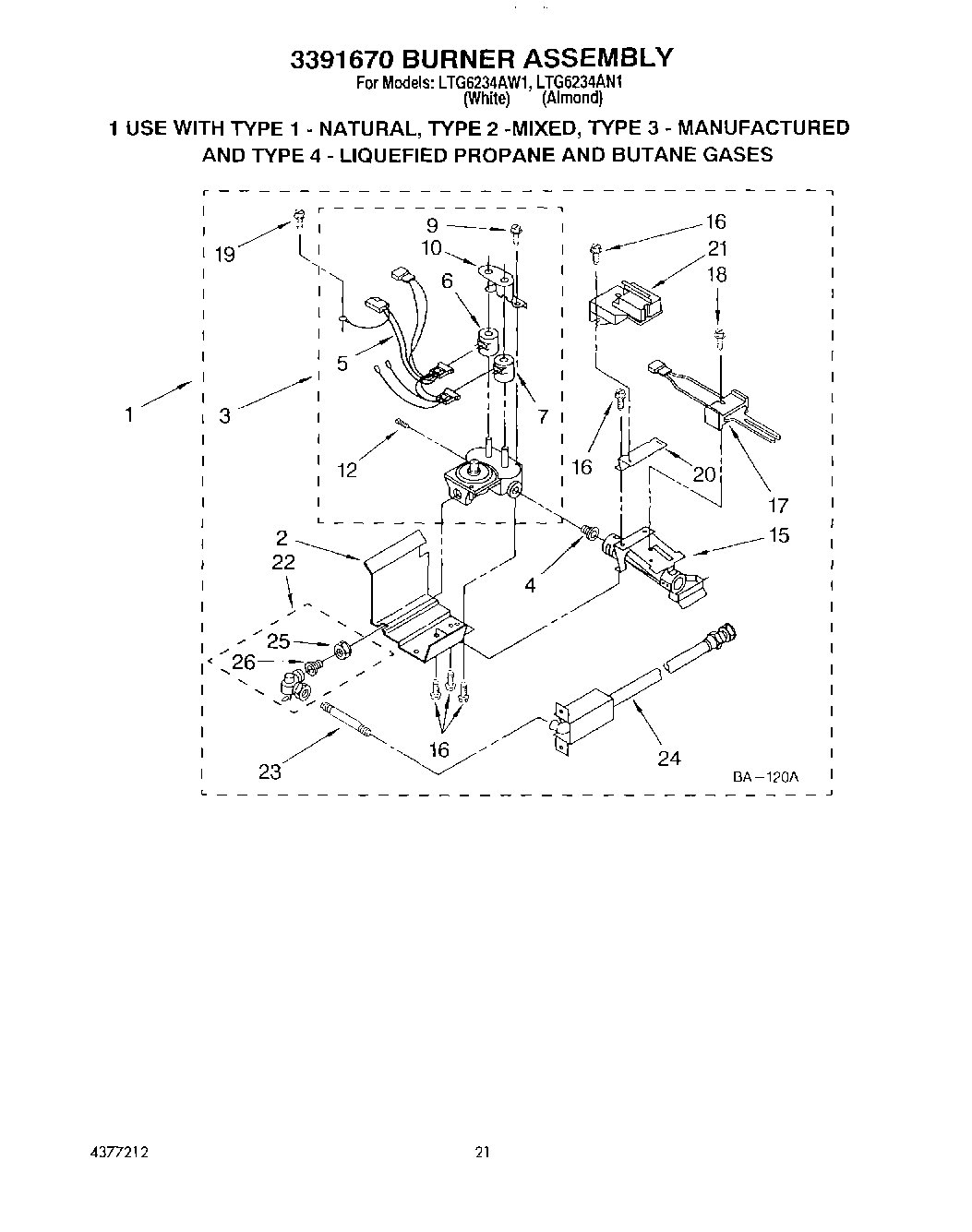

LTG6234AN1 15 – 3391670 BURNER ASSEMBLY

Products

Position	Product
1	Burner Assembly 60 Hz.
2	3391699 Whirlpool Base
3	279889 Whirlpool Valve Assembly
4	WP234822 Whirlpool Gas Orifice
4	WP347744 Whirlpool Gas Orifice
5	WP3401849 Whirlpool Wire Harness
6	279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
9	694421 Whirlpool Screw Assembly
10	694538 Whirlpool Bracket
12	W10295523 Whirlpool Plug
15	8578392 Whirlpool Burner
16	SCREW
17	279311 Whirlpool Dryer Flat Igniter with Bracket
18	WPW10366705 Whirlpool Screw
19	WP3390631 Whirlpool Screw
20	Bracket, Sensor
21	WP338906 Whirlpool Dryer Gas Sensor
22	697441 Whirlpool Valve
23	Nipple, Short
24	Supply Line (Gas)
25	Nut, Compression
26	3392235A Whirlpool Gas Conversion Kit
26	3393767 Whirlpool Pipe
