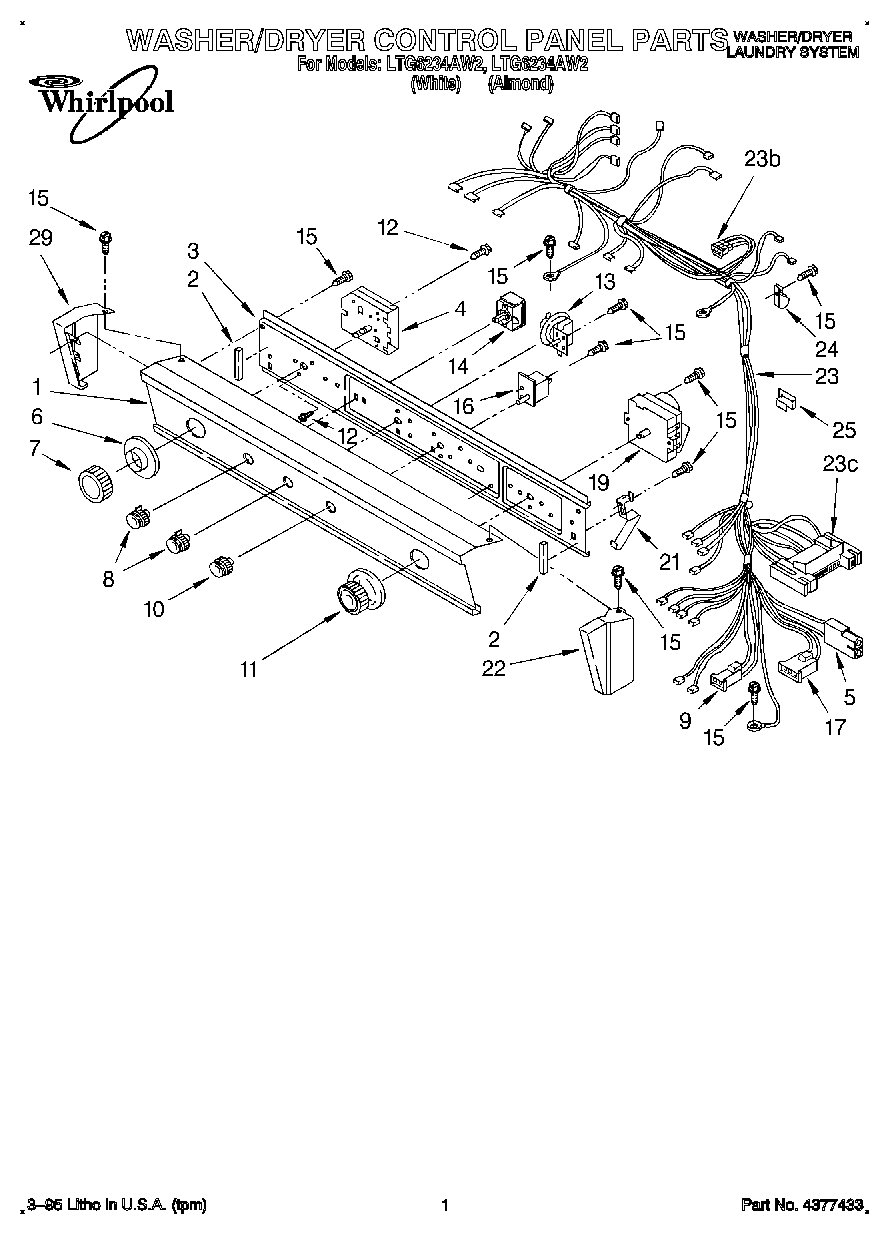

LTG6234AN2 01 – WASHER/DRYER CONTROL PANELadmin2025-04-26T12:17:40+00:00LTG6234AN2 01 – WASHER/DRYER CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Panel, Control (Almond) |
| 1 | Panel, Control (White) |
| 2 | 3390688 Whirlpool Bumper Assembly |
| 3 | Bracket, Control (Includes Illus. 2) |
| 4 | 285938 Whirlpool Washer Timer |
| 5 | Receptacle, Latching (2-Way) (Uses Terminal 94614) |
| 6 | Dial (Washer) |
| 6 | Dial (Washer) (Almond) |
| 7 | WP3364293 Whirlpool Timer Knob |
| 8 | WP3957796 Whirlpool Knob |
| 8 | 3957797 Whirlpool Knob |
| 9 | Connector, 2-Position (Gas Valve) |
| 10 | WP3957800 Whirlpool Knob |
| 11 | WP3957750 Whirlpool Knob |
| 12 | WP356418 Whirlpool Screw |
| 13 | Switch, Pressure |
| 14 | Switch, Water Temperature (Alt.) |
| 15 | WP3390631 Whirlpool Screw |
| 16 | Switch, Push-To-Start |
| 17 | Connector, 3-Position (Gas Valve) |
| 19 | WP3976569 Whirlpool Timer |
| 21 | 3389453 Whirlpool Hinge Assembly |
| 22 | End Cap-Right Hand (Almond) |
| 22 | End Cap (RH) |
| 23B | WP62889 Whirlpool Washer Lid Switch Terminal Receptacle |
| 23C | 3395683 Whirlpool Connector |
| 23 | Harness - Dryer |
| 24 | 7111P002-60 Whirlpool Clamp |
| 25 | Clip, Harness (2) |
| 29 | End Cap (LH) (Almond) |
| 29 | End Cap (LH) |
