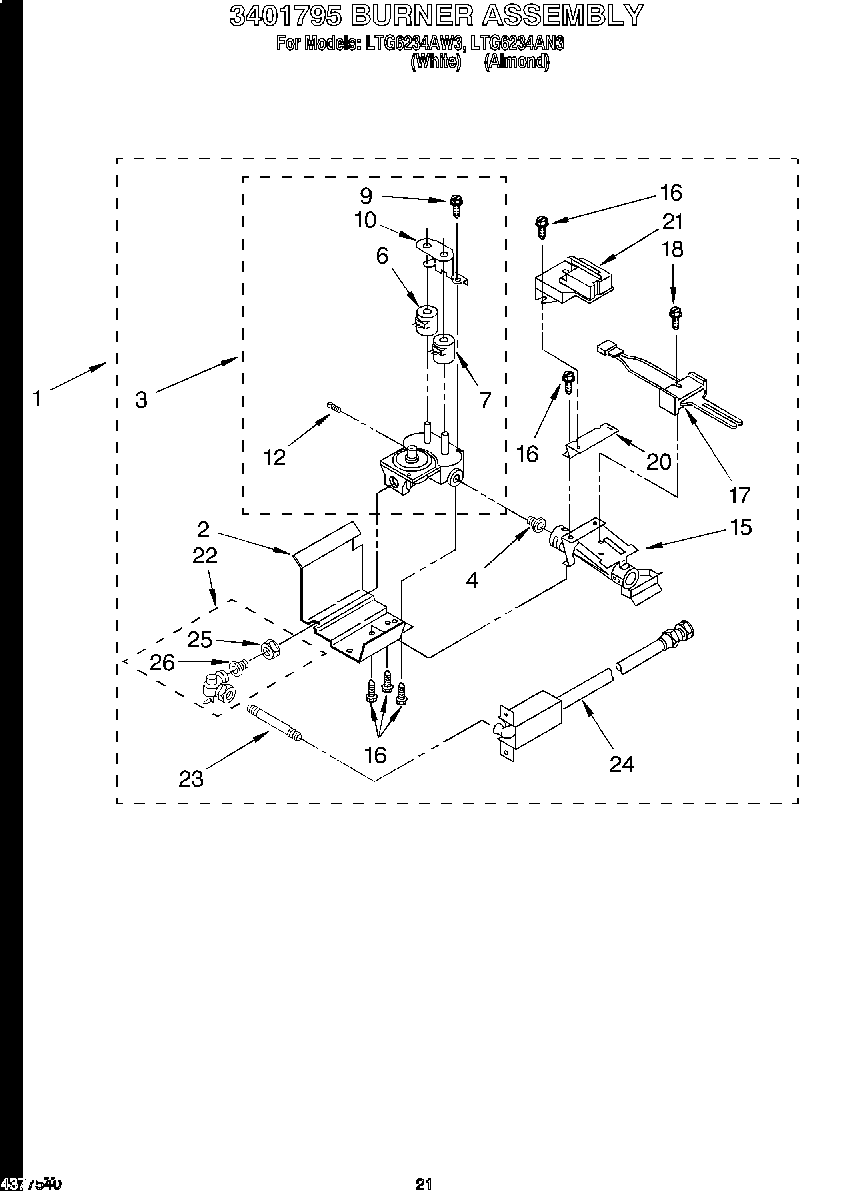

LTG6234AN3 15 – 3401795 BURNER ASSEMBLY

Products

Position	Product
1	Burner Assembly 60 Hz.
2	3391699 Whirlpool Base
3	279889 Whirlpool Valve Assembly
4	ORIFICE, BURNER (TYPE 4 (BUTANE))
4	ORIFICE, NATURAL GAS
6	279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
9	694421 Whirlpool Screw Assembly
10	694538 Whirlpool Bracket
12	W10295523 Whirlpool Plug
15	8578392 Whirlpool Burner
16	WP693995 Whirlpool Screw
17	279311 Whirlpool Dryer Flat Igniter with Bracket
18	WPW10366705 Whirlpool Screw
20	Bracket, Sensor
21	WP338906 Whirlpool Dryer Gas Sensor
22	697441 Whirlpool Valve
23	Nipple, Short
24	Supply Line (Gas)
25	Nut, Compression
26	3393767 Whirlpool Pipe
26	3392235A Whirlpool Gas Conversion Kit
