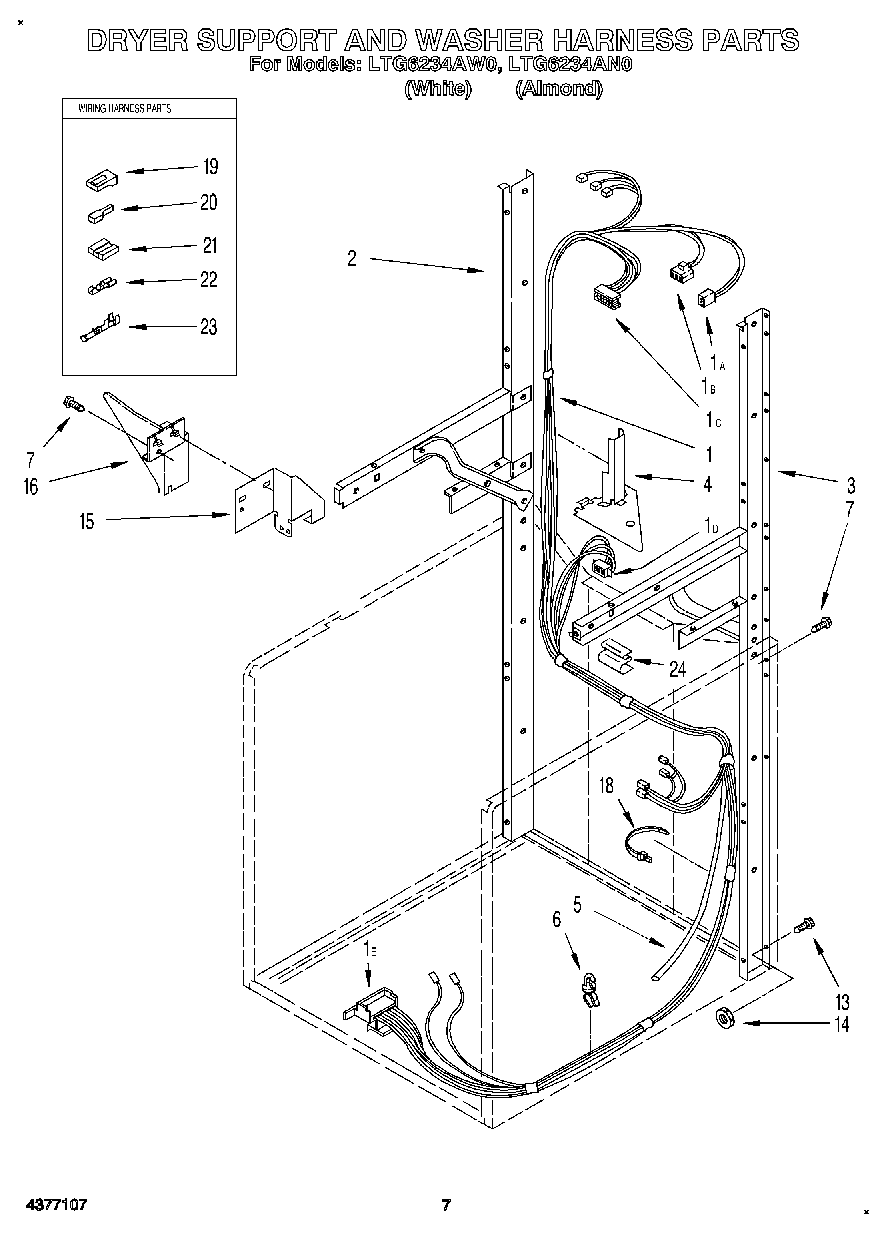

LTG6234AW0 05 – DRYER SUPPORT AND WASHER HARNESS

Products

Position	Product
1	5 Block, Disconnect (Uses Terminal 352088)
1	1 Receptacle, 3 Way (Uses Terminal 94614)
1	Harness – Washer
1	Block, Disconnect
1	W10876590 Whirlpool Connector
1	3350130 Whirlpool Connector
2	3388851 Whirlpool Support
3	3388850 Whirlpool Support
4	3390609 Whirlpool Shield
5	W10834213 Whirlpool Hose
6	Clip, Harness
7	SCREW
13	Screw, 5/16-18 x 1/2 (2)
14	Nut, Hex (4)
15	3392232 Whirlpool Shield
16	Shield, Thermostat
18	Tie, Cable
19	Insulator, Terminal
20	WP285432 Whirlpool Terminal
21	Connector Block (Alternate)
22	Terminal, Female
23	WP596797 Whirlpool Terminal
23	WP94614 Whirlpool Terminal
24	Protector, Harness
