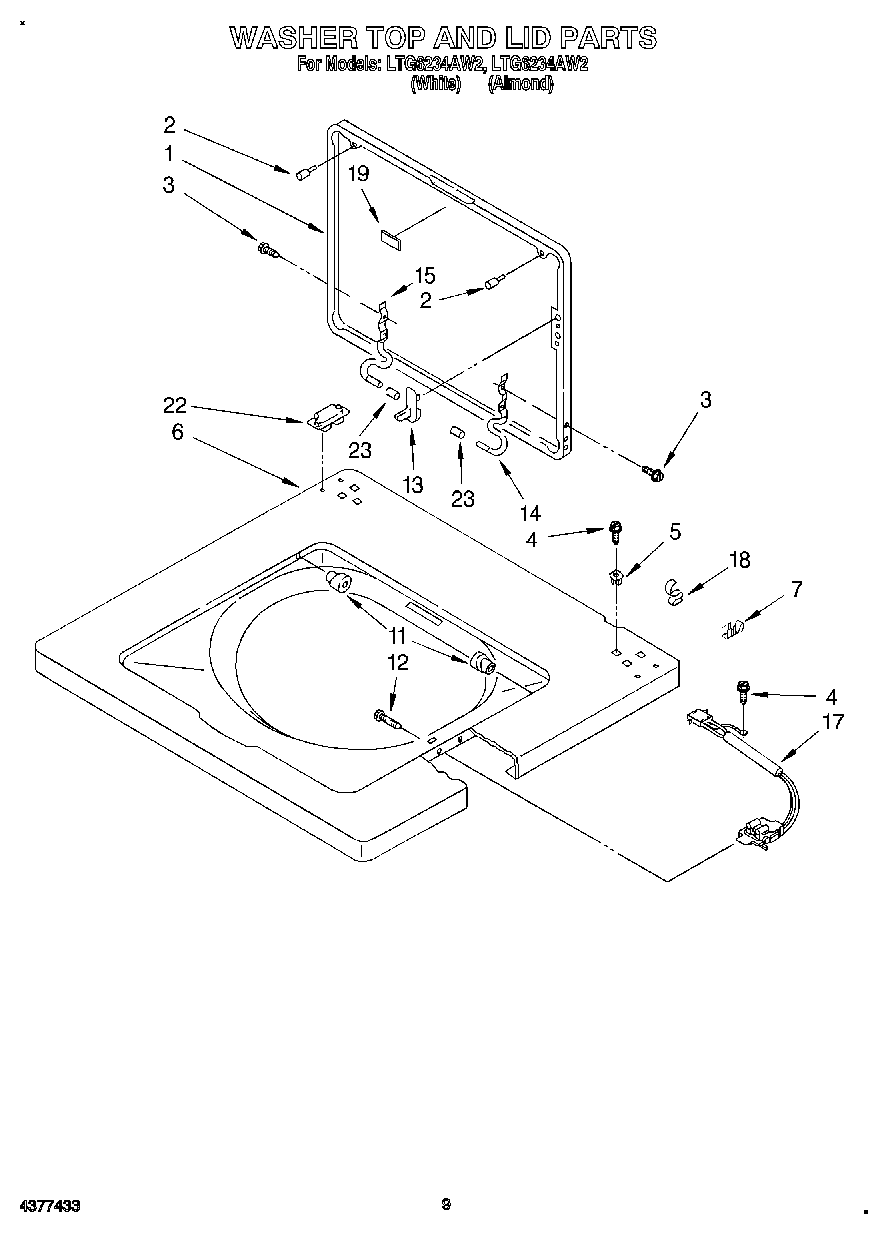

LTG6234AW2 06 – WASHER TOP AND LID

LTG6234AW2 06 – WASHER TOP AND LID

Written by

in

LTG6234AW2 06 – WASHER TOP AND LID

Products

PositionProduct
1Lid (Almond)
1Lid (White)
2WP9724509 Whirlpool Bumper
3SCREW
4SCREW
5WP692400 Whirlpool Nut
6Top, Console (Almond)
6Top
7W10113937 Whirlpool Clamp
11WP21258 Whirlpool Washer Lid Hinge Bearing
12WP3356311 Whirlpool Screw
13WP358684 Whirlpool Strike Assembly
14WP54583 Whirlpool Hinge
15WP54584 Whirlpool Hinge
17WP3355458 Whirlpool Lid Switch
18WP90016 Whirlpool Clip
19Strike, Magnetic
22W11116924 Whirlpool Locator
23Bumper, Lid Hinge
