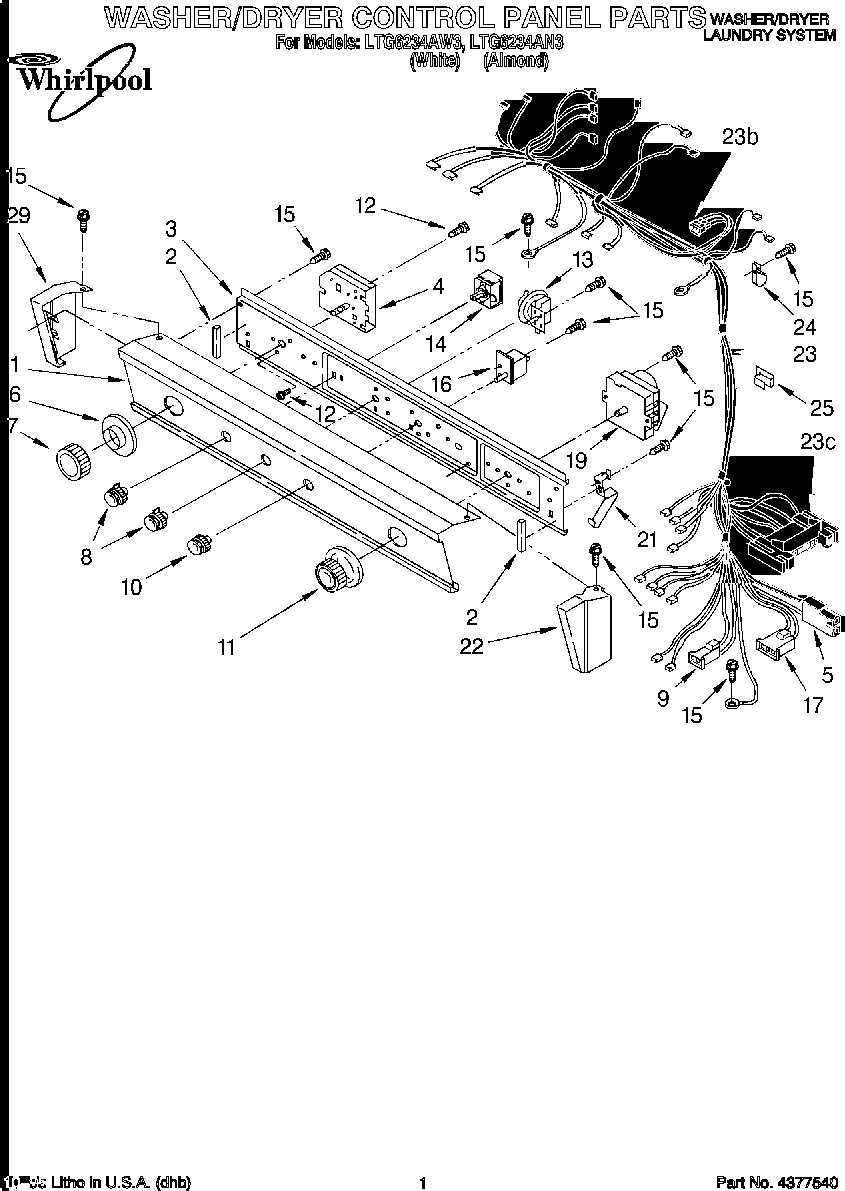

LTG6234AW3 01 – WASHER/DRYER CONTROL PANEL

Products

Position	Product
1	Panel, Control (Almond)
1	Panel, Control (White)
2	3390688 Whirlpool Bumper Assembly
3	Bracket, Control (Includes Illus. 2)
4	285938 Whirlpool Washer Timer
5	Receptacle, Latching (2-Way) (Uses Terminal 94614)
6	Dial (Washer)
6	Dial (Washer) (Almond)
7	WP3364293 Whirlpool Timer Knob
8	WP3957796 Whirlpool Knob
8	3957797 Whirlpool Knob
9	Connector, 2-Position (Gas Valve)
10	WP3957800 Whirlpool Knob
11	WP3957750 Whirlpool Knob
12	WP356418 Whirlpool Screw
13	Switch, Pressure
14	Switch, Water Temperature (Alt.)
15	WP3390631 Whirlpool Screw
16	WP3395382 Whirlpool Push To Start Switch
17	Connector, 3-Position (Gas Valve)
19	WP3976569 Whirlpool Timer
21	3389453 Whirlpool Hinge Assembly
22	End Cap-Right Hand (Almond)
22	End Cap (RH)
23B	WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
23C	3395683 Whirlpool Connector
23	Harness - Dryer
24	7111P002-60 Whirlpool Clamp
25	Clip, Harness (2)
29	End Cap (LH) (Almond)
29	End Cap (LH)
