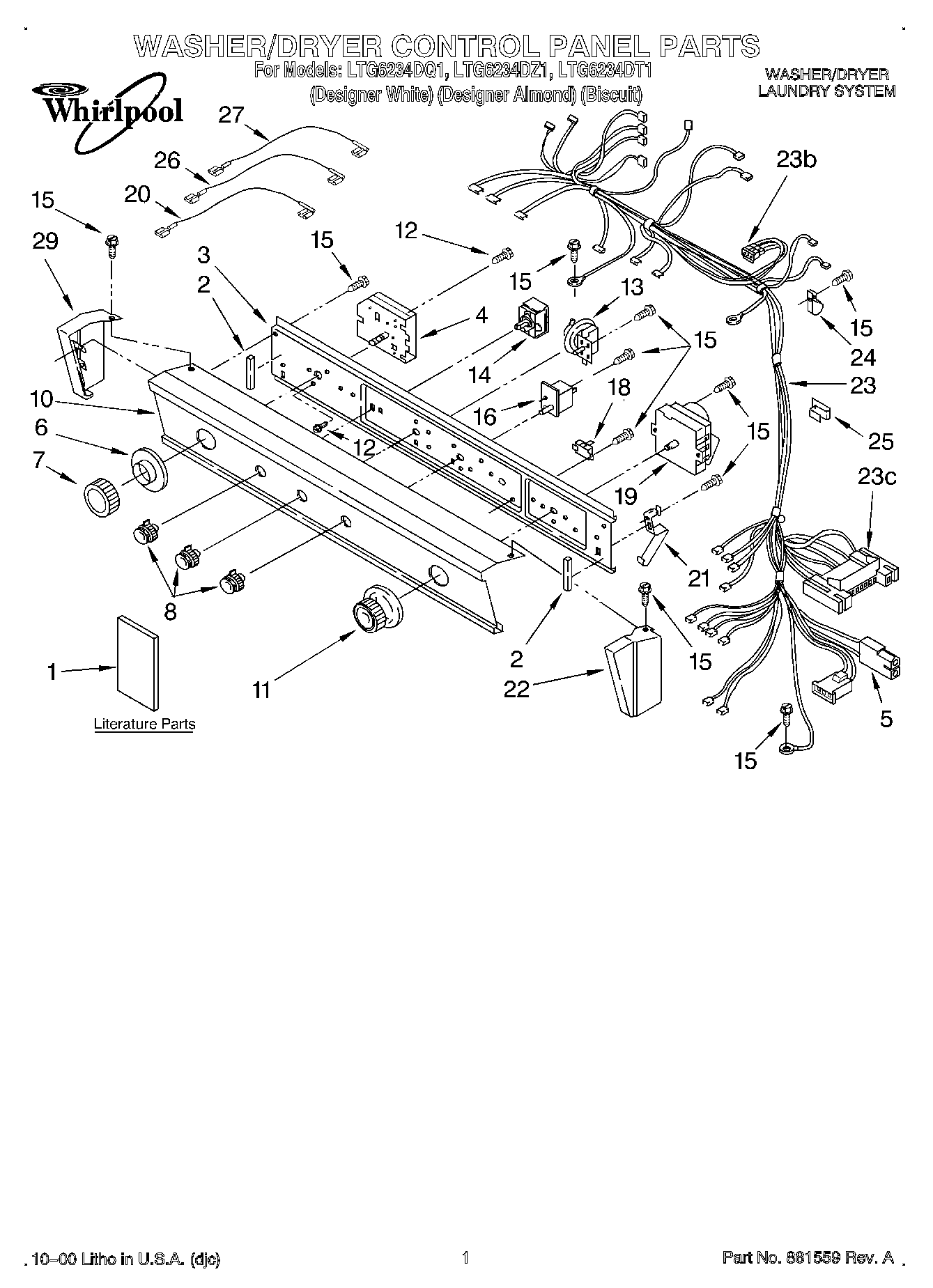

LTG6234DQ1 01 – WASHER/DRYER CONTROL PANEL, LITERAT

Products

Position	Product
	WPL LIT3954144
	WPL LIT3952895
	Label, Wiring Diagram
	Guide, Use And Care
1	Instructions, Installation
2	3390688 Whirlpool Bumper Assembly
3	Bracket, Control (Includes Illus. 2)
4	WP3948357 Whirlpool Timer Assembly
5	Receptacle, Latching (2-Way) (Uses Terminal 94614)
6	Dial, Timer (Washer) (Biscuit)
6	Dial (Washer)
6	Dial (Washer) (Almond)
7	WP3364293 Whirlpool Timer Knob
8	3957797 Whirlpool Knob
8	WP3957796 Whirlpool Knob
10	Panel, Control (Almond)
10	Panel, Control (Biscuit)
10	Panel, Control
11	WP3957750 Whirlpool Knob
11	WP3957751 Whirlpool Knob
12	WP356418 Whirlpool Screw
13	WP3952466 Whirlpool Washer Water Level Switch
14	Switch, Temperature
15	WP3390631 Whirlpool Screw
16	WP3404233 Whirlpool Dryer Starter Switch
18	WP694419 Whirlpool Buzzer Adjuster
19	WP3976569 Whirlpool Timer
20	Wire, Jumper (Black)
21	3389453 Whirlpool Hinge Assembly
22	End Cap-Right Hand (Almond)
22	End Cap (RH)
22	End Cap (RH) (Biscuit)
23	3395683 Whirlpool Connector
23	Harness – Dryer
23	3350130 Whirlpool Connector
24	7111P002-60 Whirlpool Clamp
25	Clip, Harness (2)
26	Wire, Jumper (Black)
27	Wire, Jumper (Blue)
29	End Cap (LH)
29	End Cap (LH) (Almond)
29	End Cap (LH) (Biscuit)
