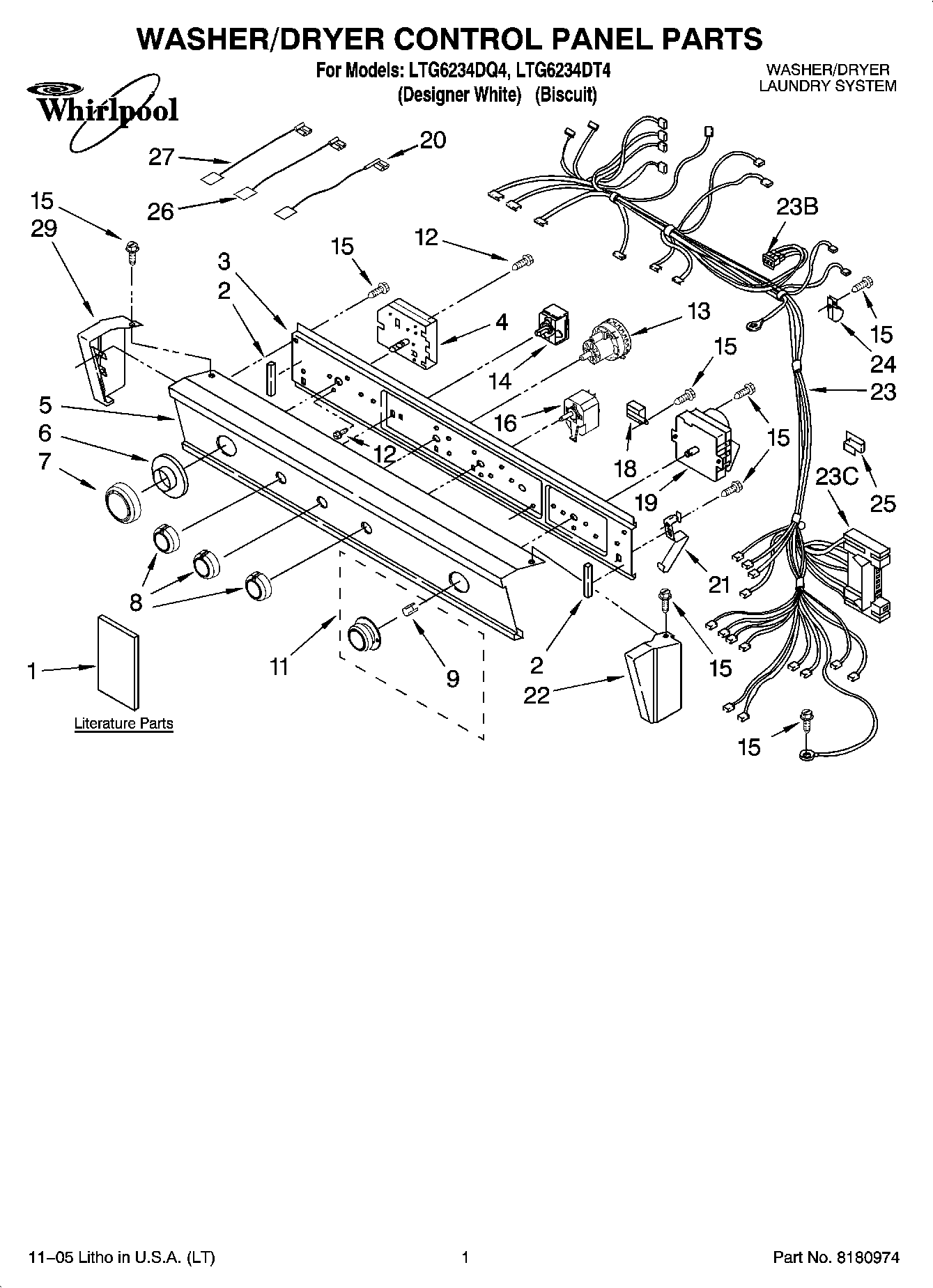

LTG6234DQ4 01 – WASHER/DRYER CONTROL PANEL PARTS

LTG6234DQ4 01 – WASHER/DRYER CONTROL PANEL PARTS

Written by

in

LTG6234DQ4 01 – WASHER/DRYER CONTROL PANEL PARTS

Products

PositionProduct
1Installation Instructions
1Use & Care Guide
1Wiring Diagram
1Energy Guide
1Sheet, Cycle Feature
23390688 Whirlpool Bumper Assembly
3W10732070 Whirlpool Bracket
4WP3948357 Whirlpool Timer Assembly
5Panel, Control (Biscuit)
5Panel, Control
6Dial, (Washer) (Biscuit)
6Dial (Washer)
7Knob, Timer (Washer) (Biscuit)
7Knob, Timer (Washer)
8WP3957796 Whirlpool Knob
83957797 Whirlpool Knob
9WP688805 Whirlpool Spring Clip
11WP3957750 Whirlpool Knob
11WP3957751 Whirlpool Knob
12WP3400064 Whirlpool Screw
13Switch, Pressure
14Switch, Temperature
15WP90767 Whirlpool Screw
16WP3404233 Whirlpool Dryer Starter Switch
18WP694419 Whirlpool Buzzer Adjuster
19WP3976569 Whirlpool Timer
20Wire, Jumper (Blue)
213389453 Whirlpool Hinge Assembly
22End Cap (RH) (Biscuit)
22End Cap (RH)
23Harness – Dryer
23BReceptacle,
23C3395683 Whirlpool Connector
247111P002-60 Whirlpool Clamp
25Clip, Harness (2)
26Wire, Jumper (Black)
27Wire, Jumper (Black)
29End Cap (LH) (Biscuit)
29End Cap (LH)
