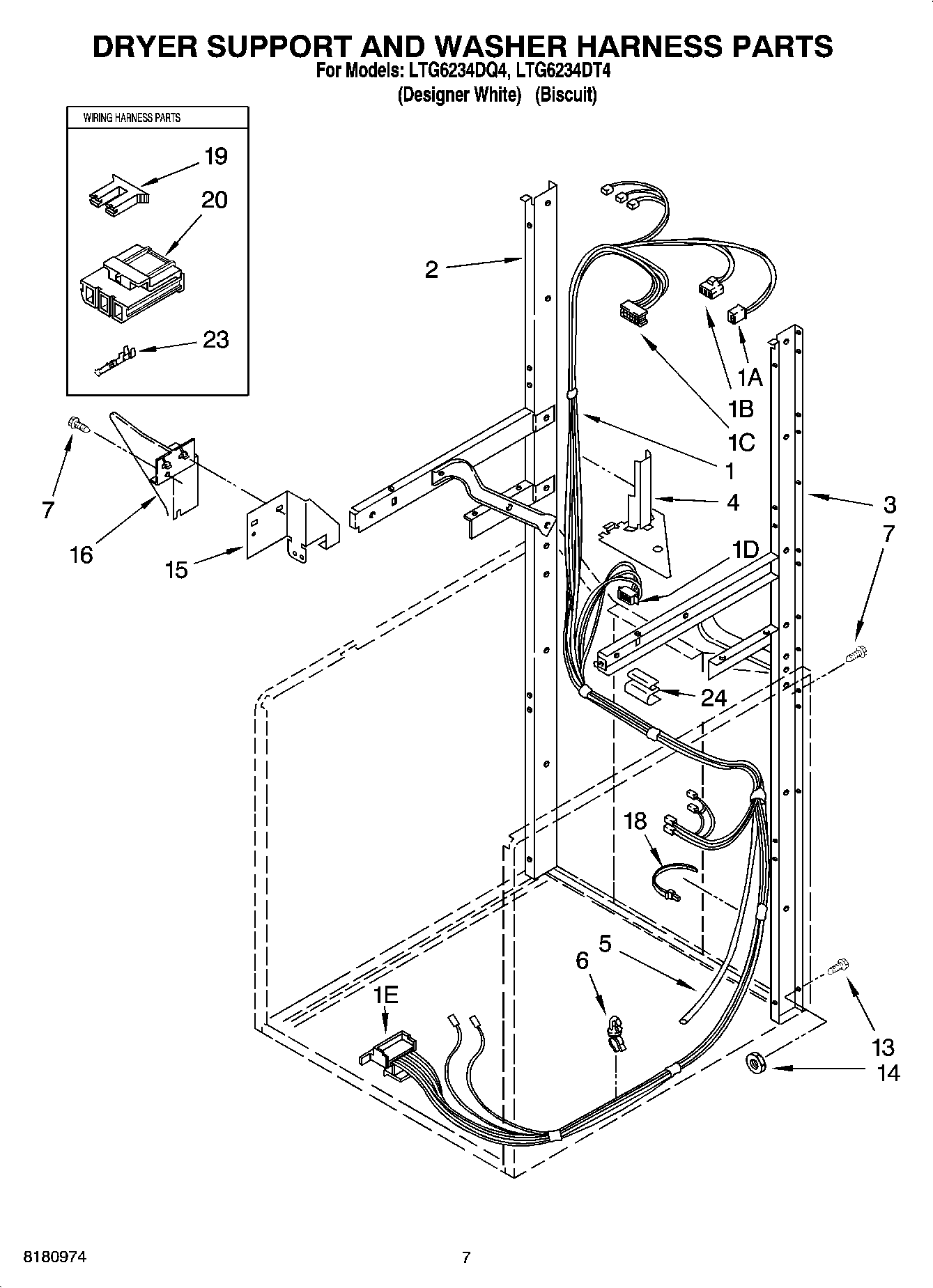

LTG6234DQ4 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

Products

Position	Product
1A	3350130 Whirlpool Connector
1D	Receptacle, 3 Way
1	Harness - Washer
1E	WP62505 Whirlpool Connector
1C	W10876590 Whirlpool Connector
1B	Block, Disconnect
2	(Left Hand Side)
2	3388851 Whirlpool Support
3	3388850 Whirlpool Support
3	(Right Hand Side)
4	3390609 Whirlpool Shield
5	W10834213 Whirlpool Hose
6	Clip, Harness
7	SCREW
13	Bolt, 5/16-18 x 1/2
14	Nut, Hex (4)
15	3392232 Whirlpool Shield
16	Shield, Thermostat
18	Tie, Cable
19	3354925 Whirlpool Connector
20	WP3360056 Whirlpool Connector
23	WP94614 Whirlpool Terminal
24	Protector, Harness
