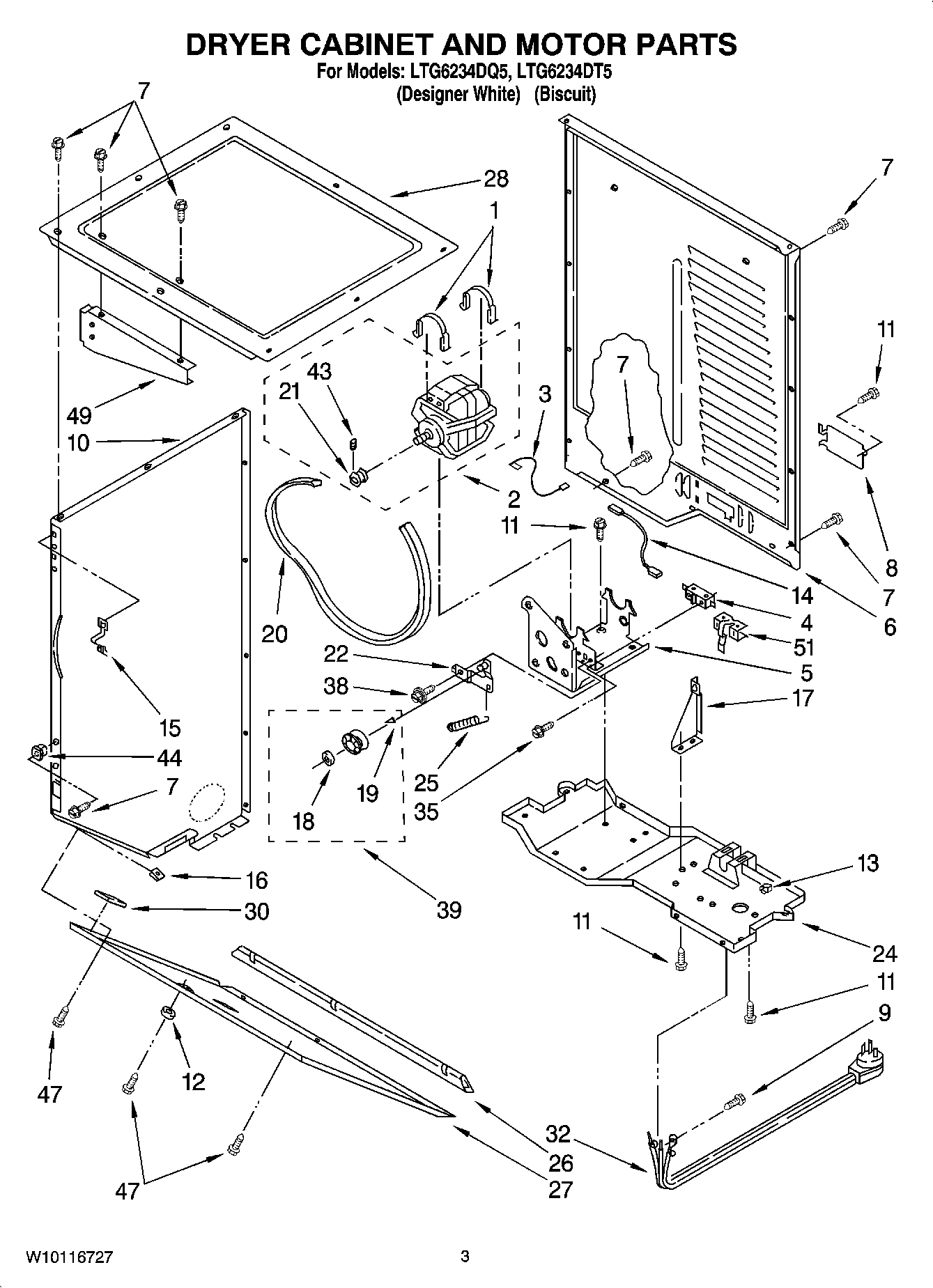

LTG6234DQ5 03 – DRYER CABINET AND MOTOR PARTS

LTG6234DQ5 03 – DRYER CABINET AND MOTOR PARTS

Written by

in

LTG6234DQ5 03 – DRYER CABINET AND MOTOR PARTS

Products

PositionProduct
1WP660658 Whirlpool Clamp
33398948 Whirlpool Wire
4279782 Whirlpool Lid Switch
5W11107903 Whirlpool Bracket
6Panel, Rear
7SCREW
8279814 Whirlpool Cover
9WP90767 Whirlpool Screw
103389256 Whirlpool Panel
103389264 Whirlpool Panel Assembly
10Panel, Side (R.H.) (Biscuit)
10Panel, Side (L.H.) (Biscuit)
11WP3390631 Whirlpool Screw
12Bumper, Lid Stop (Biscuit)
12WP3389431 Whirlpool Bumper Assembly
13Clip
14Wire, Belt Switch
153389231 Whirlpool Clip Front Panel
16WP98234 Whirlpool Nut
173391639 Whirlpool Bracket Assembly
19WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
20661570V Whirlpool Dryer Drum Belt
21279811 Whirlpool Dryer Drive Motor
22WPW10547294 Whirlpool Idler Pulley
24Base, Dryer
25WPW10446781 Whirlpool Spring
263389683 Whirlpool Cover Assembly
27Panel, Transition (Biscuit)
273389272 Whirlpool Panel
28Top, Dryer
303389682 Whirlpool Spacer
32WPW10581952 Whirlpool Power Cord
35WP98129 Whirlpool Screw
38WP3389420 Whirlpool Screw
39279640 Whirlpool Dryer Idler Pulley Kit
43Pin, Roll
44WP692400 Whirlpool Nut
47WP693304 Whirlpool Screw
493390722 Whirlpool Shield Assembly
51WP8066120 Whirlpool Lever Assembly
