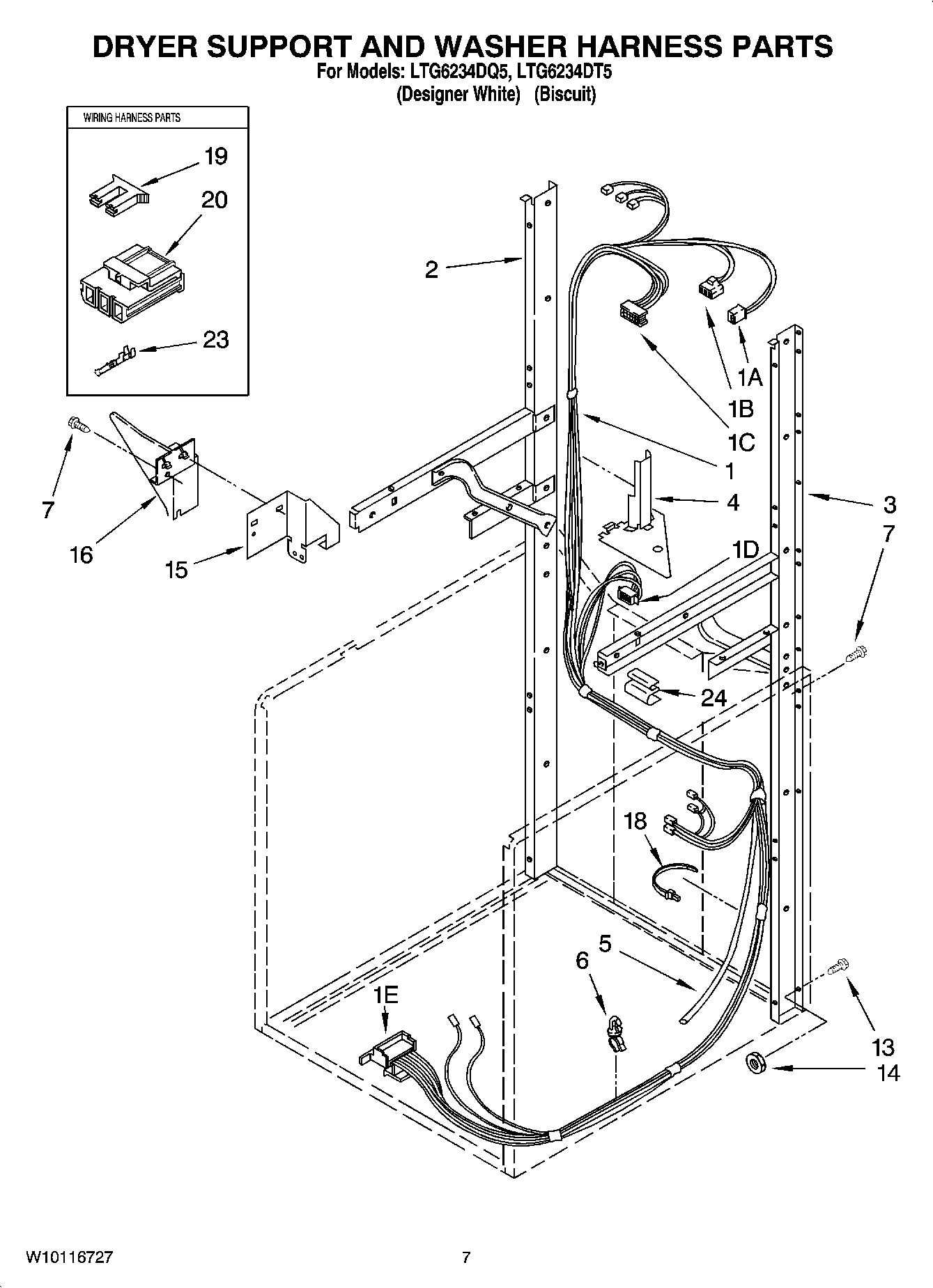

LTG6234DQ5 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

Products

Position	Product
1	Harness - Washer
1D	Receptacle, 3 Way
1A	3350130 Whirlpool Connector
1E	WP62505 Whirlpool Connector
1C	W10876590 Whirlpool Connector
1B	Block, Disconnect
2	3388851 Whirlpool Support
3	3388850 Whirlpool Support
4	3390609 Whirlpool Shield
5	W10834213 Whirlpool Hose
6	Clip, Harness
7	SCREW
13	Bolt, 5/16-18 x 1/2
14	Nut, Hex (4)
15	3392232 Whirlpool Shield
16	Shield, Thermostat
18	Tie, Cable
19	3354925 Whirlpool Connector
20	WP3360056 Whirlpool Connector
23	WP596797 Whirlpool Terminal
23	WP94614 Whirlpool Terminal
24	Protector, Harness
