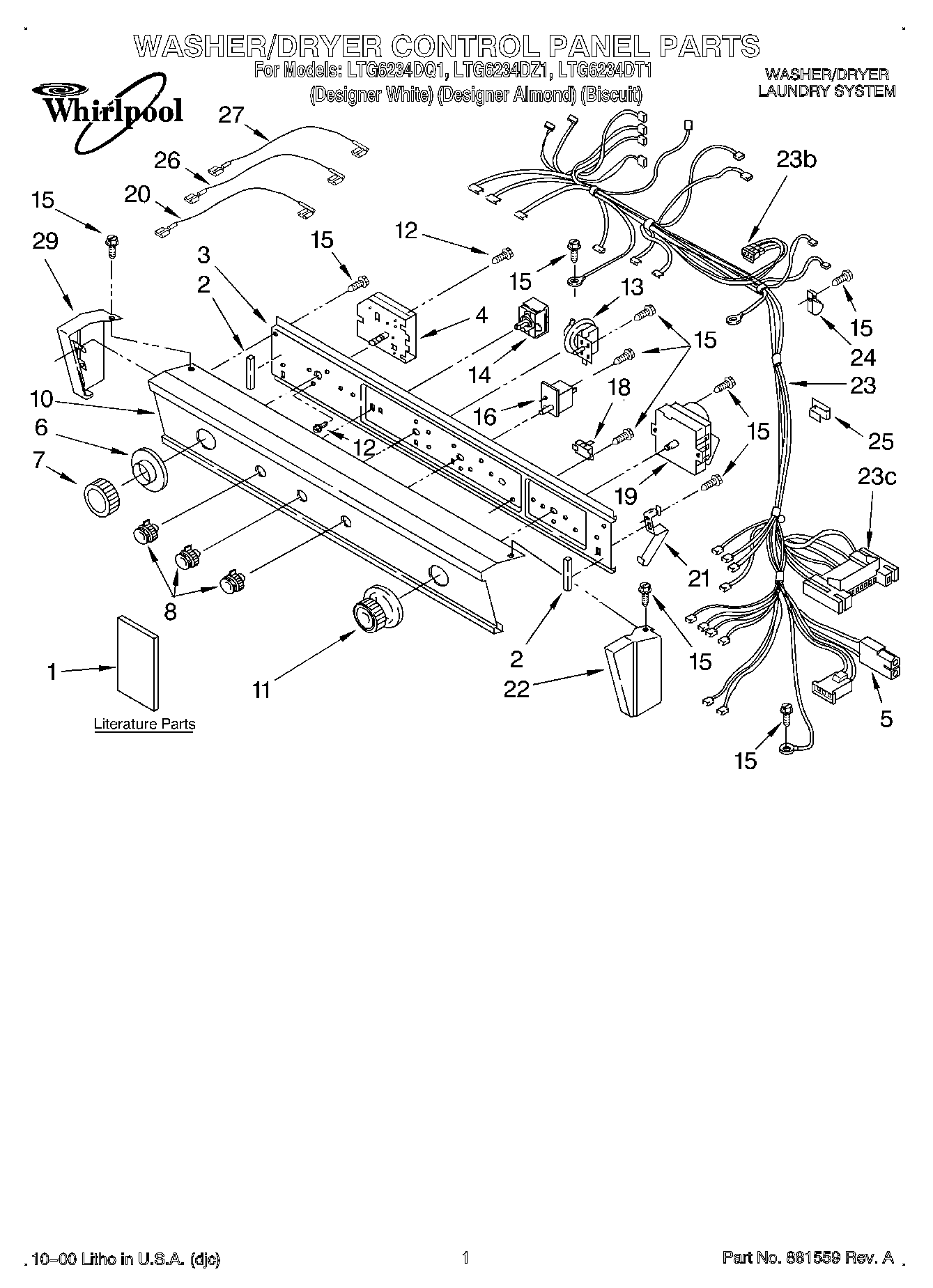

LTG6234DT1 01 – WASHER/DRYER CONTROL PANEL, LITERATadmin2025-04-26T12:23:48+00:00LTG6234DT1 01 – WASHER/DRYER CONTROL PANEL, LITERAT
Products
| Position | Product |
|---|
| WPL LIT3954144 |
| WPL LIT3952895 |
| Label, Wiring Diagram |
| Guide, Use And Care |
| 1 | Instructions, Installation |
| 2 | 3390688 Whirlpool Bumper Assembly |
| 3 | Bracket, Control (Includes Illus. 2) |
| 4 | WP3948357 Whirlpool Timer Assembly |
| 5 | Receptacle, Latching (2-Way) (Uses Terminal 94614) |
| 6 | Dial, Timer (Washer) (Biscuit) |
| 6 | Dial (Washer) |
| 6 | Dial (Washer) (Almond) |
| 7 | WP3364293 Whirlpool Timer Knob |
| 8 | 3957797 Whirlpool Knob |
| 8 | WP3957796 Whirlpool Knob |
| 10 | Panel, Control (Almond) |
| 10 | Panel, Control (Biscuit) |
| 10 | Panel, Control |
| 11 | WP3957750 Whirlpool Knob |
| 11 | WP3957751 Whirlpool Knob |
| 12 | WP356418 Whirlpool Screw |
| 13 | WP3952466 Whirlpool Washer Water Level Switch |
| 14 | Switch, Temperature |
| 15 | WP3390631 Whirlpool Screw |
| 16 | WP3404233 Whirlpool Dryer Starter Switch |
| 18 | WP694419 Whirlpool Buzzer Adjuster |
| 19 | WP3976569 Whirlpool Timer |
| 20 | Wire, Jumper (Black) |
| 21 | 3389453 Whirlpool Hinge Assembly |
| 22 | End Cap-Right Hand (Almond) |
| 22 | End Cap (RH) |
| 22 | End Cap (RH) (Biscuit) |
| 23 | 3395683 Whirlpool Connector |
| 23 | Harness - Dryer |
| 23 | 3350130 Whirlpool Connector |
| 24 | 7111P002-60 Whirlpool Clamp |
| 25 | Clip, Harness (2) |
| 26 | Wire, Jumper (Black) |
| 27 | Wire, Jumper (Blue) |
| 29 | End Cap (LH) |
| 29 | End Cap (LH) (Almond) |
| 29 | End Cap (LH) (Biscuit) |
