LTG6234DT1 05 – DRYER SUPPORT AND WASHER HARNESS – Aparts

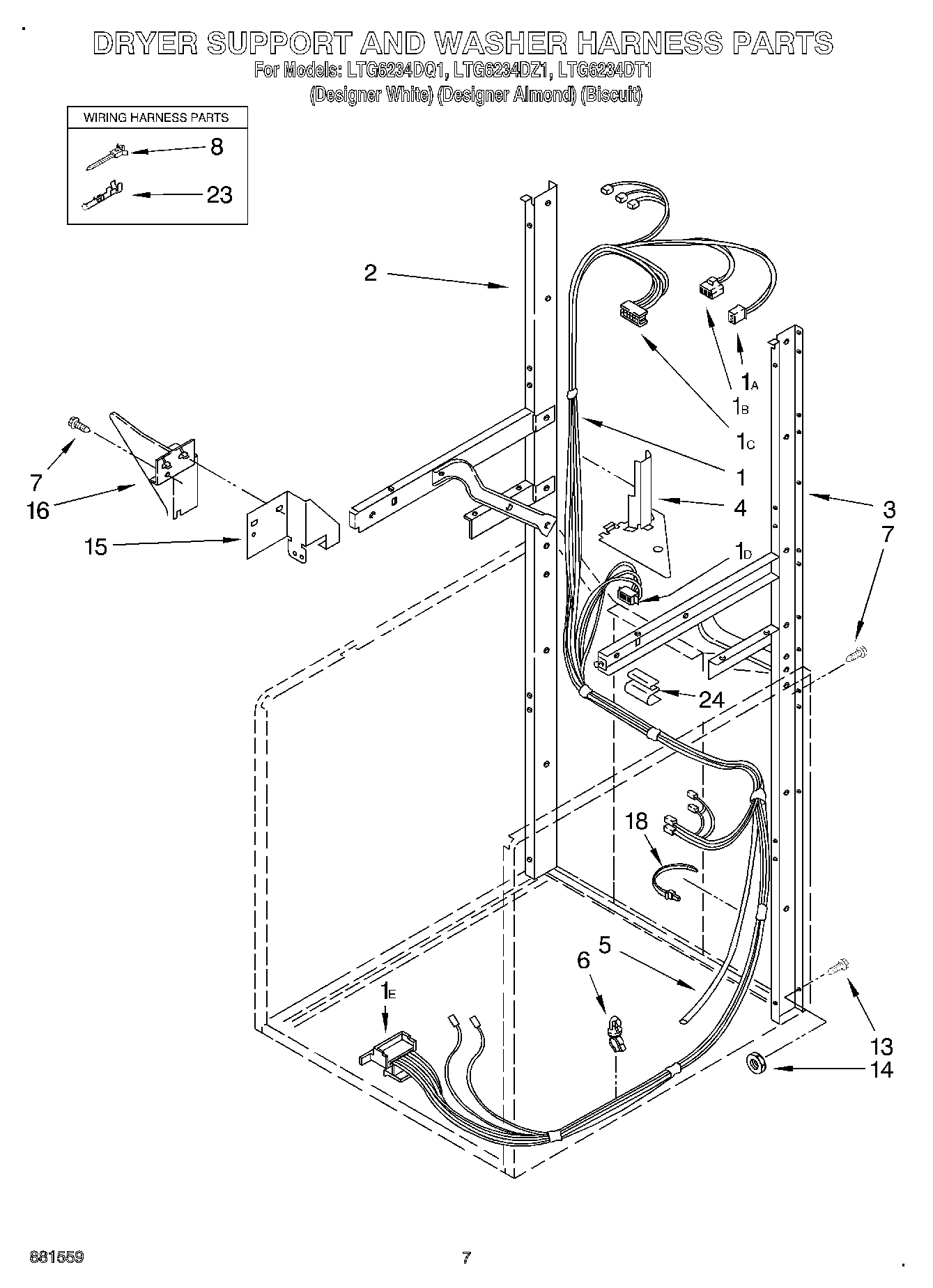

LTG6234DT1 05 – DRYER SUPPORT AND WASHER HARNESS

Products

Position	Product
1	Harness - Washer
1	3350130 Whirlpool Connector
1D	WP62505 Whirlpool Connector
1B	W10876590 Whirlpool Connector
1A	Block, Disconnect
1C	Receptacle, 3 Way
2	3388851 Whirlpool Support
3	3388850 Whirlpool Support
4	3390609 Whirlpool Shield
5	W10834213 Whirlpool Hose
6	Clip, Harness
7	SCREW
8	WP3391018 Whirlpool Wire Tie
13	Bolt, 5/16-18 x 1/2
14	Nut, Hex (4)
15	3392232 Whirlpool Shield
16	Shield, Thermostat
18	Tie, Cable
23	WP596797 Whirlpool Terminal
23	WP94614 Whirlpool Terminal
24	Protector, Harness
